76871-0006 - Molex

Description: I/O Connectors ASSEMBLY 2x1 QSFP+ W/ OUTER LIGHT PIPES

Download 76871-0006 Model
Schematic
symbols
Schematic symbol is unavailable for download
PCB
footprints
PCB footprint is unavailable for download
3D
models
3D model is unavailable for download
Send part feedback
Symbol
76871-0006 - Molex - PCB symbol
click to zoom
PCB Footprints

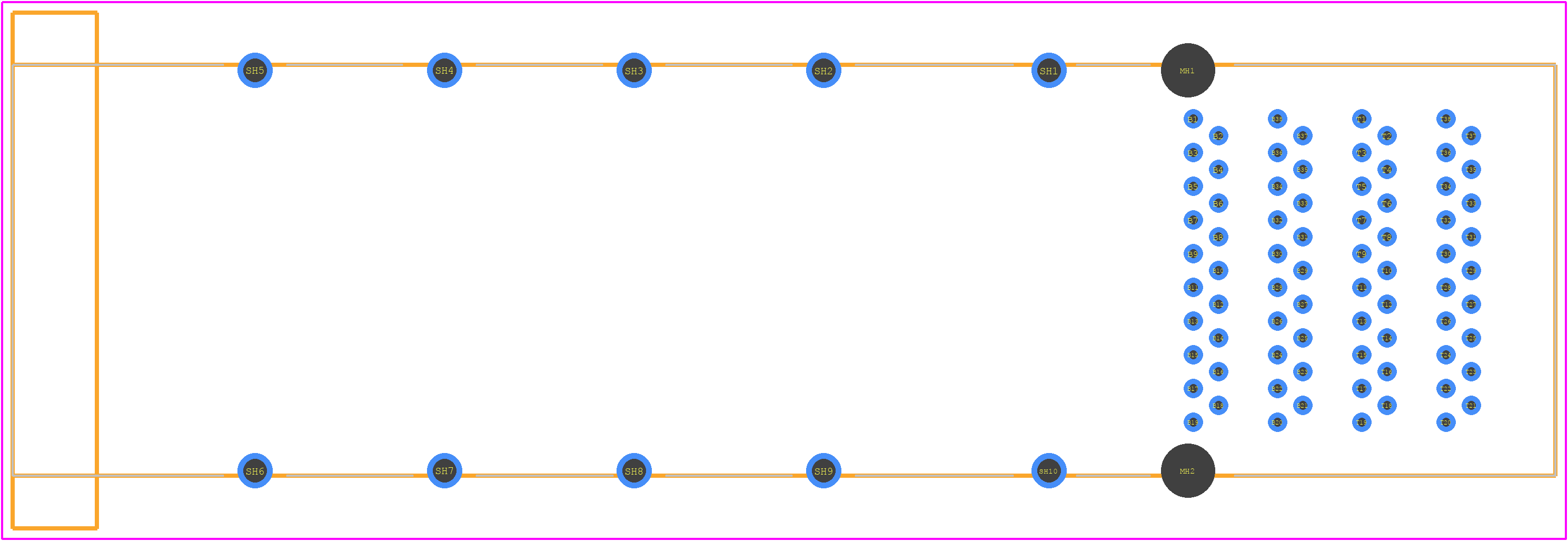

76871-0006 - Molex PCB footprint - Other - Other - 76871-0006-6
click to zoom
3D Models
76871-0006 - Molex - 3D model - Other - 76871-0006-6
click to zoom

76871-0006 Details

  • Manufacturer Part Number:

    76871-0006

  • Rohs Code:

    Yes

  • Part Life Cycle Code:

    Obsolete

  • ECCN Code:

    EAR99

  • HTS Code:

    8536.69.40.30

  • Manufacturer:

    Molex

  • YTEOL:

    0

  • Connector Type:

    SFP CONNECTOR

  • Contact Finish Mating:

    NOT SPECIFIED

  • Contact Finish Termination:

    NOT APPLICABLE

  • Contact Material:

    NOT SPECIFIED
