76PSB06ST - Grayhill

Description: DIP Switches / SIP Switches DIP Switch SPST (up is off) 6 Pos

Download 76PSB06ST Model
Schematic
symbols
Schematic symbol is unavailable for download
PCB
footprints
PCB footprint is unavailable for download
3D
models
3D model is unavailable for download
Send part feedback
Symbol

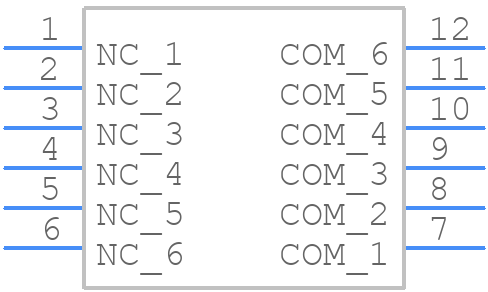

76PSB06ST - Grayhill - PCB symbol
click to zoom
PCB Footprints

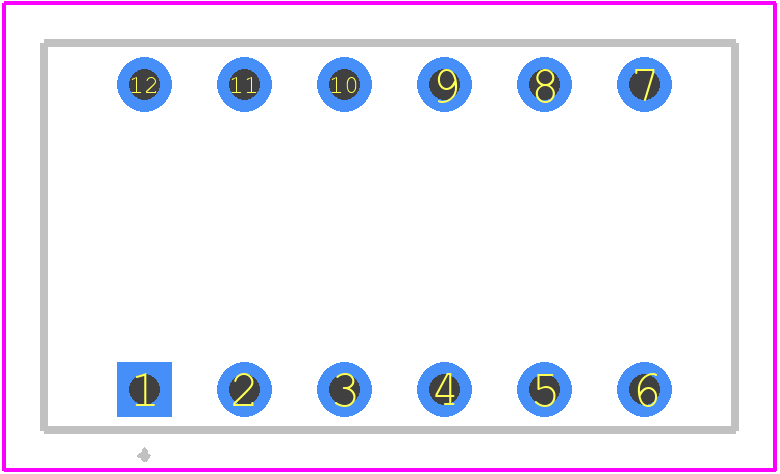

76PSB06ST - Grayhill PCB footprint - Other - Other - 17.3x9.65x8.03mm
click to zoom
3D Models
76PSB06ST - Grayhill - 3D model - Other - 17.3x9.65x8.03mm
click to zoom

76PSB06ST Details

  • Manufacturer Part Number:

    76PSB06ST

  • Pbfree Code:

    Yes

  • Rohs Code:

    Yes

  • Part Life Cycle Code:

    Active

  • Package Description:

    ROHS COMPLIANT

  • Country Of Origin:

    Mainland China

  • ECCN Code:

    EAR99

  • HTS Code:

    8536.50.90.40

  • Factory Lead Time:

    18 Weeks

  • Manufacturer:

    Grayhill Inc

  • YTEOL:

    6.6

  • Body Breadth:

    9.65 mm

  • Body Height:

    7.14 mm

  • Body Length or Diameter:

    17.3 mm

  • Contact Current(DC)-Max:

    0.15 A

  • Contact (DC) Max Rating R Load:

    .15A@30VDC

  • Contact Voltage(DC)-Max:

    30 V

  • Electrical Life:

    2000 Cycle(s)

  • JESD-609 Code:

    e3

  • Mounting Feature:

    THROUGH HOLE-STRAIGHT

  • Number of Switch Sections:

    6

  • Operating Temperature-Max:

    85 °C

  • Operating Temperature-Min:

    -40 °C

  • PCB Hole Count:

    12

  • Packing Method:

    TUBE

  • Sealing:

    TOP TAPE SEALED

  • Surface Mount:

    NO

  • Switch Action:

    MOMENTARY

  • Switch Function:

    SPST

  • Switch Type:

    PIANO DIP SWITCH

  • Terminal Finish:

    MATTE TIN OVER NICKEL

  • Termination Type:

    SOLDER

76PSB06ST Frequently Asked Questions (FAQs)

  • The recommended torque for the screw terminals is 0.5-1.0 Nm (4-8 in-lbs).
  • Yes, the 76PSB06ST is designed to withstand high-vibration environments, but it's recommended to consult with Grayhill's application engineers to ensure the switch meets the specific vibration requirements.
  • The operating temperature range for the 76PSB06ST is -40°C to 85°C (-40°F to 185°F).
  • Yes, the 76PSB06ST has a sealed construction that meets IP67 standards, protecting against dust and water ingress.
  • The 76PSB06ST is not designed for use in hazardous locations. If you need a switch for a hazardous location, consult with Grayhill's application engineers to determine the appropriate solution.

Trust Checks

This model has been provided by community users.
Community Provided
This model has been verified by system checks.
System Verified
This model has been reviewed by community users.
Community Approved
Sponsored

76PSB06ST Overview

Use the download button to access the 76PSB06ST schematic symbol, PCB footprint, and 3D model.
To find more CAD model downloads similar to this part, try a partial part number search, like 76PSB, or try a keyword search, such as DIP Switches
