76PSB08T - Grayhill

Description: Dip Switch SPST 8 Position Through Hole, Right Angle Piano Actuator 150mA 30VDC

Download 76PSB08T Model
Schematic
symbols
Schematic symbol is unavailable for download
PCB
footprints
PCB footprint is unavailable for download
3D
models
3D model is unavailable for download
Send part feedback
Symbol

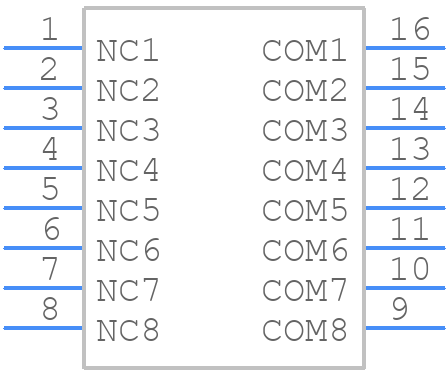

76PSB08T - Grayhill - PCB symbol
click to zoom
PCB Footprints

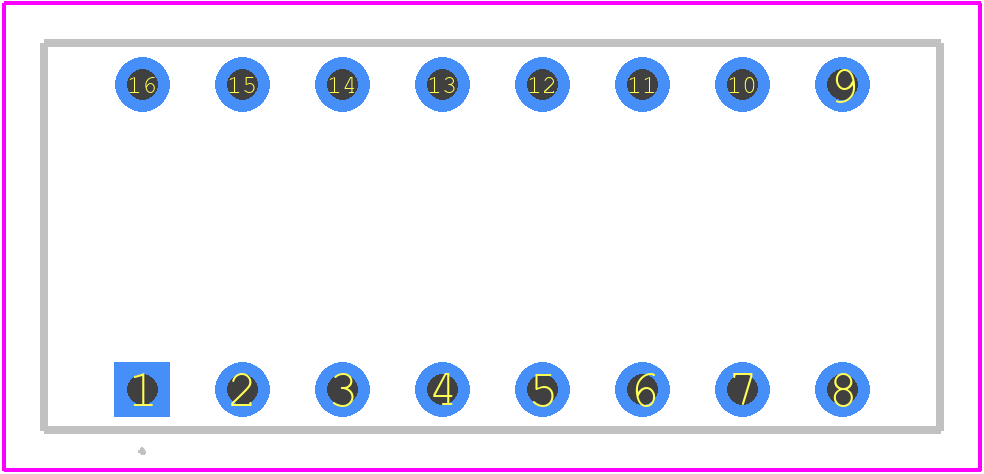

76PSB08T - Grayhill PCB footprint - Other - Other - DIP-8
click to zoom
3D Models
76PSB08T - Grayhill - 3D model - Other - DIP-8
click to zoom

76PSB08T Details

  • Manufacturer Part Number:

    76PSB08T

  • Pbfree Code:

    Yes

  • Rohs Code:

    Yes

  • Part Life Cycle Code:

    Active

  • Country Of Origin:

    Mainland China

  • ECCN Code:

    EAR99

  • HTS Code:

    8536.50.90.40

  • Factory Lead Time:

    18 Weeks

  • Manufacturer:

    Grayhill Inc

  • YTEOL:

    6.5

  • Actuator Type:

    PIANO TYPE

  • Body Breadth:

    9.65 mm

  • Body Height:

    7.65 mm

  • Body Length or Diameter:

    22.4 mm

  • Contact Current(DC)-Max:

    0.15 A

  • Contact (DC) Max Rating R Load:

    .15A@30VDC

  • Contact Function:

    OFF-ON

  • Contact Voltage(DC)-Max:

    30 V

  • Electrical Life:

    2000 Cycle(s)

  • JESD-609 Code:

    e3

  • Mounting Feature:

    THROUGH HOLE-RIGHT ANGLE

  • Number of Switch Sections:

    8

  • Operating Temperature-Max:

    85 °C

  • Operating Temperature-Min:

    -40 °C

  • PCB Hole Count:

    16

  • Packing Method:

    TUBE

  • Surface Mount:

    NO

  • Switch Action:

    MOMENTARY

  • Switch Function:

    SPST

  • Switch Type:

    PIANO DIP SWITCH

  • Terminal Finish:

    MATTE TIN OVER NICKEL

  • Termination Type:

    SOLDER

76PSB08T Frequently Asked Questions (FAQs)

  • The recommended torque for the 76PSB08T rotary switch is 0.5 to 1.5 in-lbs (0.056 to 0.169 Nm).
  • Yes, the 76PSB08T is designed to withstand high-vibration environments, making it suitable for use in industrial, aerospace, and defense applications.
  • The 76PSB08T is designed to operate in temperatures ranging from -40°C to 85°C and can withstand humidity up to 95% RH. However, it's recommended to consult with Grayhill Inc for specific environmental requirements.
  • The typical lead time for the 76PSB08T is 6-8 weeks, but it's recommended to check with Grayhill Inc or authorized distributors for the most up-to-date lead times.
  • Yes, Grayhill Inc offers customization options for the 76PSB08T, including custom legends, shaft lengths, and electrical configurations. Contact Grayhill Inc for more information.

Trust Checks

This model has been provided by community users.
Community Provided
This model has been verified by system checks.
System Verified
This model has been reviewed by community users.
Community Approved
Sponsored

76PSB08T Overview

Use the download button to access the 76PSB08T schematic symbol, PCB footprint, and 3D model.
To find more CAD model downloads similar to this part, try a partial part number search, like 76PSB, or try a keyword search, such as DIP Switches
