76RSB12ST - Grayhill

Description: Switch DIP ON OFF SPST 12 Recessed Rocker 0.15A 30VDC PC Pins 2000Cycles/SwitchCycles 2.54mm Thru-Hole Tube

Download 76RSB12ST Model
Schematic
symbols
Schematic symbol is unavailable for download
PCB
footprints
PCB footprint is unavailable for download
3D
models
3D model is unavailable for download
Send part feedback

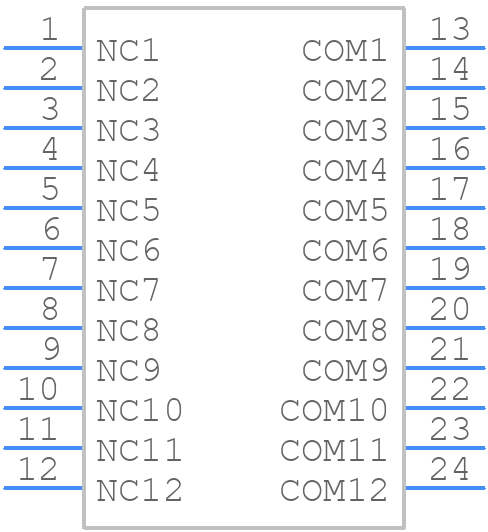

Symbol
76RSB12ST - Grayhill - PCB symbol
click to zoom

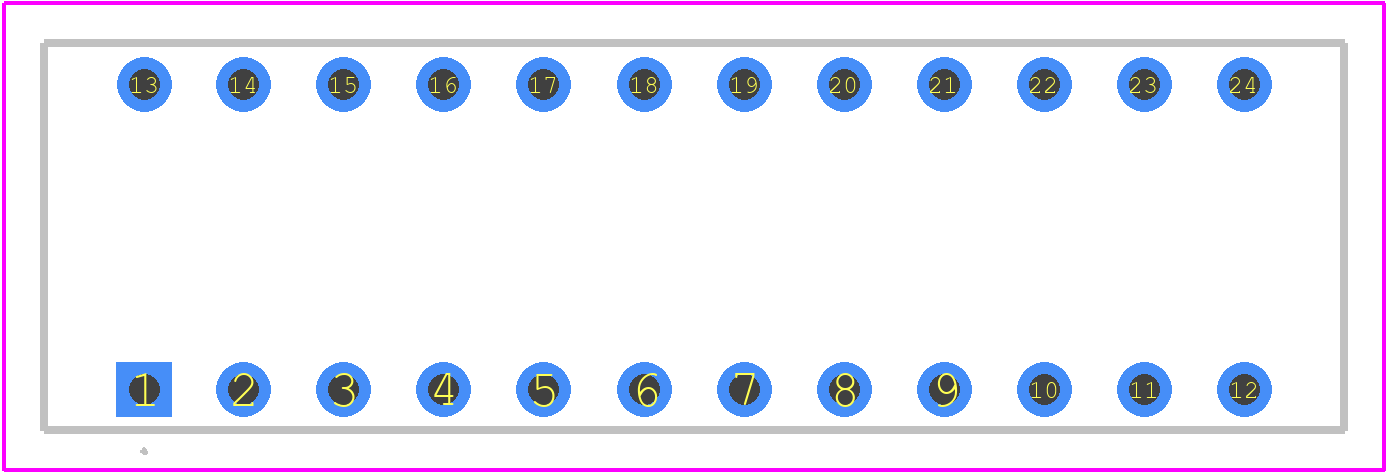

PCB Footprints
76RSB12ST - Grayhill PCB footprint - Other - Other - 76RSB12ST-5
click to zoom
3D Models
76RSB12ST - Grayhill - 3D model - Other - 76RSB12ST-5
click to zoom

76RSB12ST Details

  • Manufacturer Part Number:

    76RSB12ST

  • Pbfree Code:

    Yes

  • Rohs Code:

    Yes

  • Part Life Cycle Code:

    Active

  • Country Of Origin:

    Mainland China

  • ECCN Code:

    EAR99

  • HTS Code:

    8536.50.90.65

  • Factory Lead Time:

    18 Weeks

  • Manufacturer:

    Grayhill Inc

  • YTEOL:

    6.5

  • Body Breadth:

    9.65 mm

  • Body Height:

    7.42 mm

  • Body Length or Diameter:

    32.5 mm

  • Contact Current(DC)-Max:

    0.15 A

  • Contact (DC) Max Rating R Load:

    .15A@30VDC

  • Contact Voltage(DC)-Max:

    30 V

  • Electrical Life:

    2000 Cycle(s)

  • Mounting Feature:

    THROUGH HOLE-STRAIGHT

  • Number of Switch Sections:

    12

  • Operating Temperature-Max:

    85 °C

  • Operating Temperature-Min:

    -40 °C

  • PCB Hole Count:

    24

  • Packing Method:

    TUBE

  • Sealing:

    TOP TAPE SEALED

  • Surface Mount:

    NO

  • Switch Action:

    LATCHED

  • Switch Function:

    SPST

  • Switch Type:

    SLIDE DIP SWITCH

  • Termination Type:

    SOLDER

76RSB12ST Frequently Asked Questions (FAQs)

  • The recommended torque for mounting the 76RSB12ST is 5-7 in-lbs (0.56-0.79 Nm) to ensure proper seating and prevent damage to the switch or PCB.
  • Yes, the 76RSB12ST is designed to withstand vibration and can operate in environments with vibrations up to 10 G's (98 m/s²) according to IEC 60068-2-6.
  • The 76RSB12ST has a sealed construction with an IP67 rating, which means it is protected against dust ingress and can withstand immersion in water up to 1 meter (3.3 feet) for 30 minutes.
  • The 76RSB12ST can operate in temperatures ranging from -20°C to 85°C (-4°F to 185°F), making it suitable for a wide range of applications.
  • The 76RSB12ST is designed to meet the requirements of IEC 61010-1 for safety and performance, but it is essential to consult with Grayhill Inc and conduct thorough testing to ensure the switch meets the specific safety requirements of your application.

Trust Checks

This model has been provided by community users.
Community Provided
This model has been verified by system checks.
System Verified
This model has been reviewed by community users.
Community Approved
Sponsored

76RSB12ST Overview

Use the download button to access the 76RSB12ST schematic symbol, PCB footprint, and 3D model.
To find more CAD model downloads similar to this part, try a partial part number search, like 76RSB, or try a keyword search, such as DIP Switches
