76SB05T - Grayhill

Description: Grayhill SPST Rocker Switch PCB

Download 76SB05T Model
Schematic
symbols
Schematic symbol is unavailable for download
PCB
footprints
PCB footprint is unavailable for download
3D
models
3D model is unavailable for download
Send part feedback
Symbol

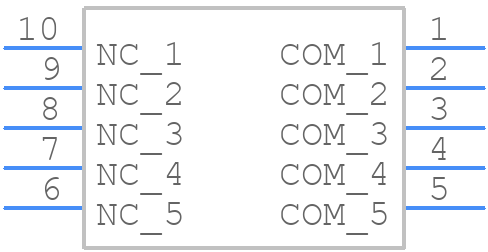

76SB05T - Grayhill - PCB symbol
click to zoom
PCB Footprints
76SB05T - Grayhill PCB footprint - Other - Other - 76SB05T-3
click to zoom
3D Models
76SB05T - Grayhill - 3D model - Other - 76SB05T-3
click to zoom

76SB05T Details

  • Manufacturer Part Number:

    76SB05T

  • Pbfree Code:

    Yes

  • Rohs Code:

    Yes

  • Part Life Cycle Code:

    Active

  • Package Description:

    ROHS COMPLIANT

  • Country Of Origin:

    Mainland China

  • ECCN Code:

    EAR99

  • HTS Code:

    8536.50.90.65

  • Factory Lead Time:

    18 Weeks

  • Manufacturer:

    Grayhill Inc

  • YTEOL:

    6.6

  • Body Breadth:

    9.65 mm

  • Body Height:

    7.42 mm

  • Body Length or Diameter:

    14.7 mm

  • Contact Current(DC)-Max:

    0.15 A

  • Contact (DC) Max Rating R Load:

    .15A@30VDC

  • Contact Voltage(DC)-Max:

    30 V

  • Electrical Life:

    2000 Cycle(s)

  • Mounting Feature:

    THROUGH HOLE-STRAIGHT

  • Number of Switch Sections:

    5

  • Operating Temperature-Max:

    85 °C

  • Operating Temperature-Min:

    -40 °C

  • PCB Hole Count:

    10

  • Packing Method:

    TUBE

  • Surface Mount:

    NO

  • Switch Action:

    LATCHED

  • Switch Function:

    SPST

  • Switch Type:

    SLIDE DIP SWITCH

  • Termination Type:

    SOLDER

76SB05T Frequently Asked Questions (FAQs)

  • The recommended torque for the 76SB05T rotary switch is 0.5-1.5 in-lbs (0.056-0.169 Nm).
  • Yes, the 76SB05T is designed to operate in harsh environments, including high temperatures, humidity, and vibration. However, it's essential to follow the recommended operating conditions and installation guidelines to ensure optimal performance.
  • Yes, the 76SB05T can be mounted on a PCB (Printed Circuit Board) using the provided through-hole pins. Ensure proper PCB design and layout to accommodate the switch's dimensions and pinout.
  • The 76SB05T has a typical operating life of 10,000 to 20,000 cycles, depending on the application and environmental conditions.
  • Yes, Grayhill Inc offers customization options for the 76SB05T, including custom legends, shaft lengths, and termination styles. Contact Grayhill's sales team for more information on customization options.
