76SB06ST - Grayhill

Description: SWITCH ROCKER DIP SPST 0.15A 30V

Download 76SB06ST Model
Schematic
symbols
Schematic symbol is unavailable for download
PCB
footprints
PCB footprint is unavailable for download
3D
models
3D model is unavailable for download
Send part feedback

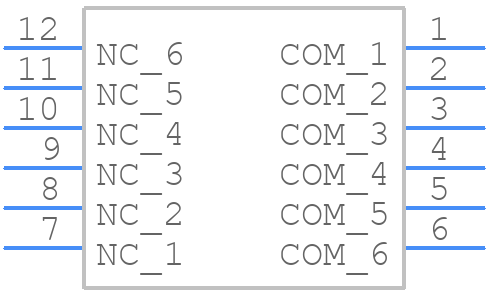

Symbol
76SB06ST - Grayhill - PCB symbol
click to zoom

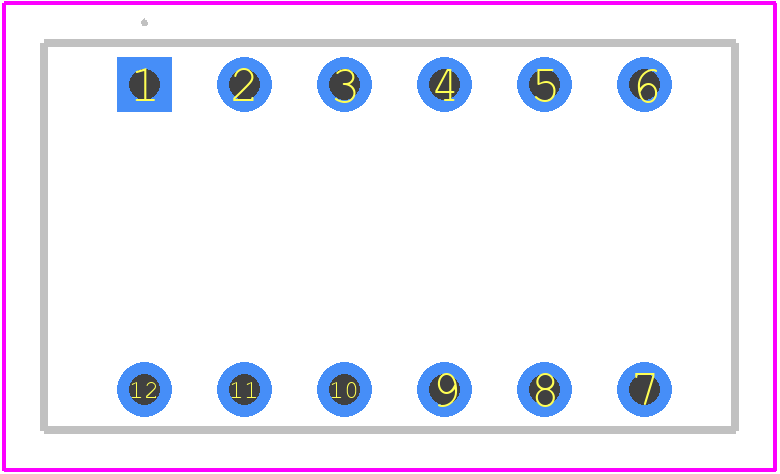

PCB Footprints
76SB06ST - Grayhill PCB footprint - Other - Other - 76SB06ST-2
click to zoom
3D Models
76SB06ST - Grayhill - 3D model - Other - 76SB06ST-2
click to zoom

76SB06ST Details

  • Manufacturer Part Number:

    76SB06ST

  • Pbfree Code:

    Yes

  • Rohs Code:

    Yes

  • Part Life Cycle Code:

    Active

  • Package Description:

    ROHS COMPLIANT

  • Country Of Origin:

    Mainland China

  • ECCN Code:

    EAR99

  • HTS Code:

    8536.50.90.65

  • Factory Lead Time:

    18 Weeks

  • Manufacturer:

    Grayhill Inc

  • YTEOL:

    6.6

  • Body Breadth:

    9.65 mm

  • Body Height:

    7.42 mm

  • Body Length or Diameter:

    17.3 mm

  • Contact Current(DC)-Max:

    0.15 A

  • Contact (DC) Max Rating R Load:

    .15A@30VDC

  • Contact Voltage(DC)-Max:

    30 V

  • Electrical Life:

    2000 Cycle(s)

  • Mounting Feature:

    THROUGH HOLE-STRAIGHT

  • Number of Switch Sections:

    6

  • Operating Temperature-Max:

    85 °C

  • Operating Temperature-Min:

    -40 °C

  • PCB Hole Count:

    12

  • Packing Method:

    TUBE

  • Sealing:

    TOP TAPE SEALED

  • Surface Mount:

    NO

  • Switch Action:

    LATCHED

  • Switch Function:

    SPST

  • Switch Type:

    SLIDE DIP SWITCH

  • Termination Type:

    SOLDER

76SB06ST Frequently Asked Questions (FAQs)

  • The recommended torque for the screw terminals is 0.5-1.0 Nm (4-8 in-lbs).
  • Yes, the 76SB06ST is designed to withstand vibrations up to 10G (10-2000 Hz) and is suitable for use in high-vibration environments.
  • The operating temperature range for the 76SB06ST is -40°C to 85°C (-40°F to 185°F).
  • Yes, the 76SB06ST has a sealed construction that meets IP67 standards, protecting it from dust and moisture ingress.
  • The 76SB06ST is not designed for use in hazardous locations and does not meet the requirements for explosion-proof or intrinsically safe devices.

Trust Checks

This model has been provided by community users.
Community Provided
This model has been verified by system checks.
System Verified
This model has been reviewed by community users.
Community Approved
Sponsored

76SB06ST Overview

Use the download button to access the 76SB06ST schematic symbol, PCB footprint, and 3D model.
