76SB06T footprint, schematic symbol and 3D model by Grayhill

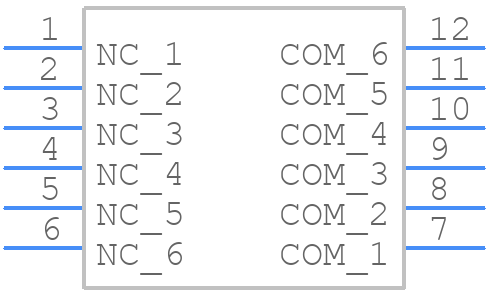

Symbol

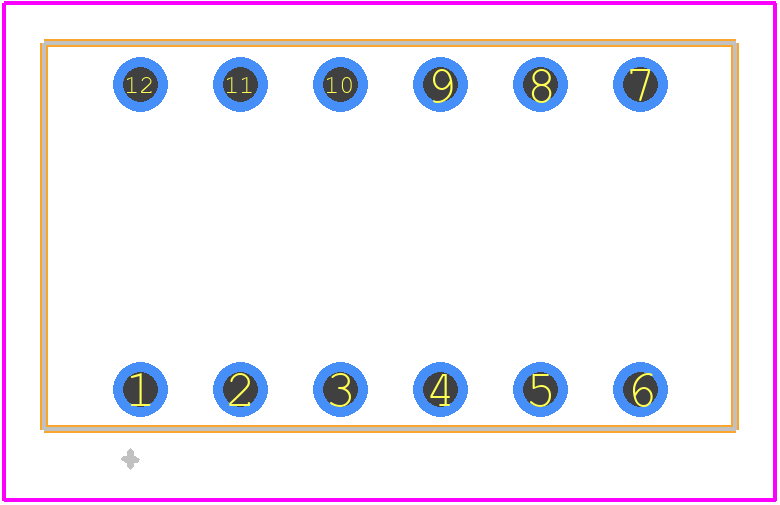

PCB Footprints

3D Models

76SB06T Details

The recommended torque for the 76SB06T rotary switch is 0.5 to 1.5 in-lbs (0.056 to 0.169 Nm) to ensure proper operation and prevent damage.
To ensure reliable contact switching, make sure to follow the recommended soldering and cleaning procedures, and avoid applying excessive force or vibration to the switch.
While the 76SB06T is designed to withstand some vibration, it's essential to evaluate the specific vibration profile of your application and consider additional mounting or damping measures if necessary.
Use a soft, dry brush to remove any debris, and then clean the switch with a mild detergent and water. Avoid using harsh chemicals or abrasive materials that may damage the switch.
Refer to the datasheet and application notes for guidance on orienting the switch correctly on your PCB, taking into account the switch's pinout and your specific design requirements.

Expert Contribution

System Verified

Community Approved

Use the download button to access the 76SB06T schematic symbol, PCB footprint, and 3D model.

To find more CAD model downloads similar to this part, try a partial part number search, like 76SB0, or try a keyword search, such as DIP Switches
