76SB08ST - Grayhill

Description: 8 Way Through Hole DIP Switch SPST, Rocker Actuator

Download 76SB08ST Model
Schematic
symbols
Schematic symbol is unavailable for download
PCB
footprints
PCB footprint is unavailable for download
3D
models
3D model is unavailable for download
Send part feedback
Symbol
76SB08ST - Grayhill - PCB symbol
click to zoom
PCB Footprints

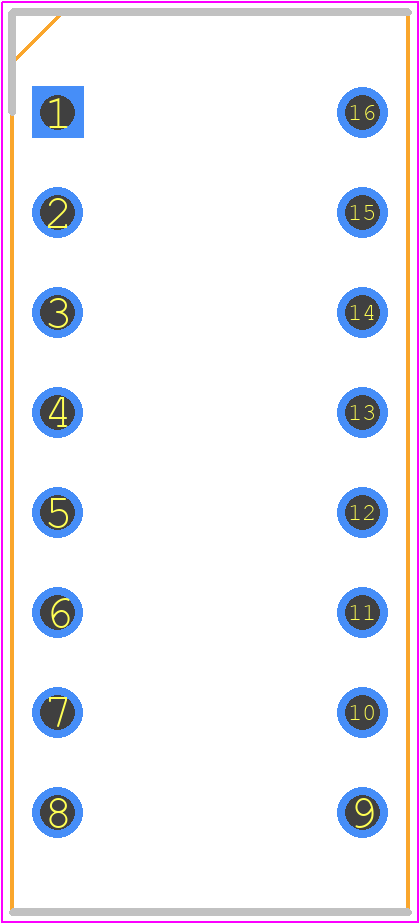

76SB08ST - Grayhill PCB footprint - Dual-In-Line Sockets - Dual-In-Line Sockets - DIP-ROCKER
click to zoom
3D Models
76SB08ST - Grayhill - 3D model - Dual-In-Line Sockets - DIP-ROCKER
click to zoom

76SB08ST Details

  • Manufacturer Part Number:

    76SB08ST

  • Pbfree Code:

    Yes

  • Rohs Code:

    Yes

  • Part Life Cycle Code:

    Active

  • Country Of Origin:

    Mainland China

  • ECCN Code:

    EAR99

  • HTS Code:

    8536.50.90.65

  • Factory Lead Time:

    18 Weeks

  • Manufacturer:

    Grayhill Inc

  • YTEOL:

    6.5

  • Actuator Type:

    SLIDE TYPE

  • Body Breadth:

    9.65 mm

  • Body Height:

    7.42 mm

  • Body Length or Diameter:

    22.4 mm

  • Contact Current(DC)-Max:

    0.15 A

  • Contact (DC) Max Rating R Load:

    .15A@30VDC

  • Contact Voltage(DC)-Max:

    30 V

  • Electrical Life:

    2000 Cycle(s)

  • JESD-609 Code:

    e3

  • Mounting Feature:

    THROUGH HOLE-STRAIGHT

  • Number of Switch Sections:

    8

  • Operating Temperature-Max:

    85 °C

  • Operating Temperature-Min:

    -40 °C

  • PCB Hole Count:

    16

  • Packing Method:

    TUBE

  • Sealing:

    TOP TAPE SEALED

  • Surface Mount:

    NO

  • Switch Action:

    LATCHED

  • Switch Function:

    SPST

  • Switch Type:

    SLIDE DIP SWITCH

  • Terminal Finish:

    MATTE TIN OVER NICKEL

  • Termination Type:

    SOLDER

76SB08ST Frequently Asked Questions (FAQs)

  • The recommended torque for the 76SB08ST rotary switch is 0.5-1.5 N·m (4.4-13.3 in·lb).
  • Yes, the 76SB08ST is designed to withstand vibrations up to 10 G (10-2000 Hz) and can be used in high-vibration environments.
  • Yes, the 76SB08ST has an IP67 rating, which means it is sealed against dust and can withstand immersion in water up to 1 meter for 30 minutes.
  • The 76SB08ST operates within a temperature range of -40°C to 85°C (-40°F to 185°F).
  • The 76SB08ST is not designed for use in hazardous locations. If you need a switch for a hazardous location, you should consider a different model or consult with Grayhill Inc. for a custom solution.
