76SB08T - Grayhill

76SB08T Details

• Manufacturer Part Number:

  76SB08T

• Pbfree Code:

  Yes

• Rohs Code:

  Yes

• Part Life Cycle Code:

  Active

• Package Description:

  ROHS COMPLIANT

• Country Of Origin:

  Mainland China

• ECCN Code:

  EAR99

• HTS Code:

  8536.50.90.65

• Manufacturer:

  Grayhill Inc

• YTEOL:

  6.5

• Actuator Type:

  SLIDE TYPE

• Body Breadth:

  9.65 mm

• Body Height:

  7.42 mm

• Body Length or Diameter:

  22.4 mm

• Center Contact Material:

  COPPER ALLOY

• Center Contact Plating:

  GOLD OVER NICKEL

• Contact Current(DC)-Max:

  0.15 A

• Contact (DC) Max Rating R Load:

  .15A@30VDC

• Contact Resistance:

  0.1 mΩ

• Contact Timing:

  MAKE-BEFORE-BREAK

• Contact Voltage(DC)-Max:

  30 V

• Dielectric Withstand Volts:

  750VAC V

• Electrical Life:

  2000 Cycle(s)

• Insulation Resistance:

  1000000000 Ω

• JESD-609 Code:

  e3

• Mounting Feature:

  THROUGH HOLE-STRAIGHT

• Number of Switch Sections:

  8

• Operating Temperature-Max:

  85 °C

• Operating Temperature-Min:

  -40 °C

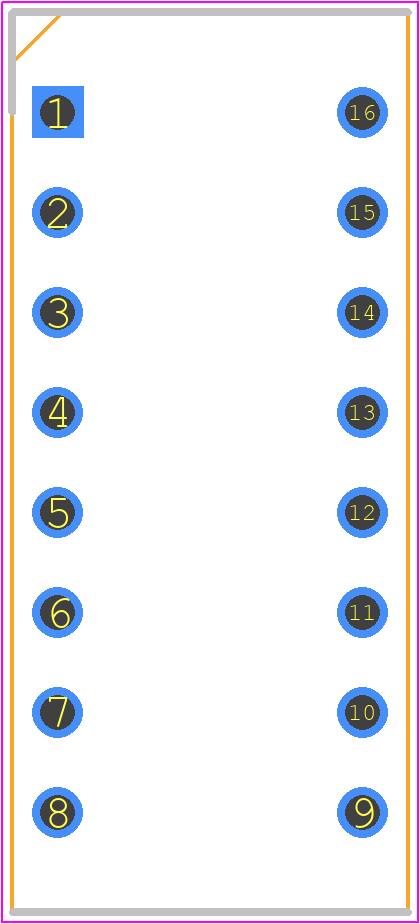

• PCB Hole Count:

  16

• Packing Method:

  TUBE

• Sealing:

  EPOXY

• Surface Mount:

  NO

• Switch Action:

  LATCHED

• Switch Function:

  SPST

• Switch Type:

  SLIDE DIP SWITCH

• Terminal Finish:

  Matte Tin (Sn) - with Nickel (Ni) barrier

• Terminal Length:

  0.156 inch

• Terminal Material:

  COPPER ALLOY

• Termination Type:

  SOLDER
