Please enter a minimum 3 letters or numbers
Technical Content
Part Image

76SB09ST - Grayhill

Description: DIP Switches / SIP Switches DIP Switch SPST 9 Pos Tape Seal

Download 76SB09ST Model
Schematic
symbols
Schematic symbol is unavailable for download
PCB
footprints
PCB footprint is unavailable for download
3D
models
3D model is unavailable for download
Send part feedback
Symbol

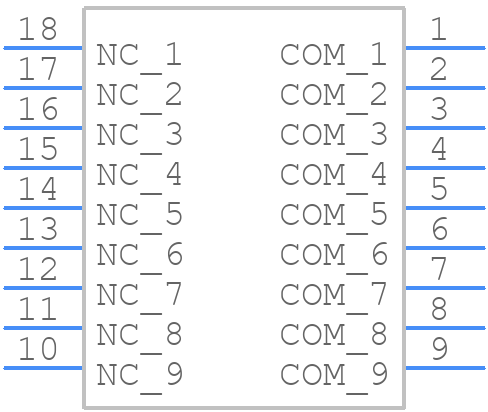

76SB09ST - Grayhill - PCB symbol
click to zoom
PCB Footprints

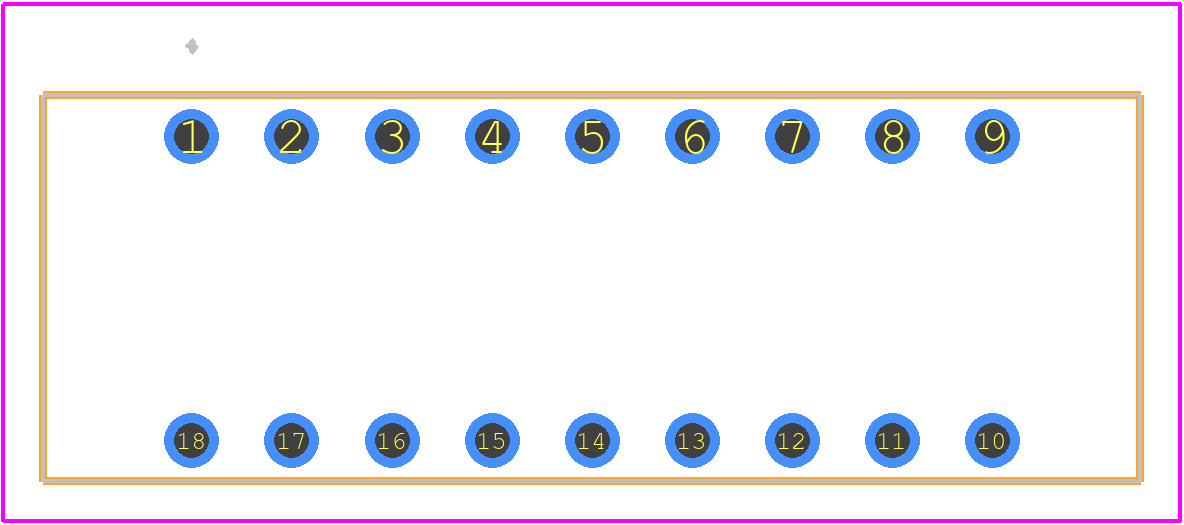

76SB09ST - Grayhill PCB footprint - Other - Other - 76SB09ST-4
click to zoom
3D Models
76SB09ST - Grayhill - 3D model - Other - 76SB09ST-4
click to zoom

76SB09ST Details

  • Manufacturer Part Number:

    76SB09ST

  • Pbfree Code:

    Yes

  • Rohs Code:

    Yes

  • Part Life Cycle Code:

    Obsolete

  • Package Description:

    ROHS COMPLIANT

  • ECCN Code:

    EAR99

  • HTS Code:

    8536.50.90.65

  • Manufacturer:

    Grayhill Inc

  • YTEOL:

    0

  • Body Breadth:

    9.65 mm

  • Body Height:

    7.42 mm

  • Body Length or Diameter:

    24.9 mm

  • Contact Current(DC)-Max:

    0.15 A

  • Contact (DC) Max Rating R Load:

    .15A@30VDC

  • Contact Voltage(DC)-Max:

    30 V

  • Electrical Life:

    2000 Cycle(s)

  • JESD-609 Code:

    e3

  • Mounting Feature:

    THROUGH HOLE-STRAIGHT

  • Number of Switch Sections:

    9

  • Operating Temperature-Max:

    85 °C

  • Operating Temperature-Min:

    -40 °C

  • PCB Hole Count:

    18

  • Packing Method:

    TUBE

  • Sealing:

    TOP TAPE SEALED

  • Surface Mount:

    NO

  • Switch Action:

    LATCHED

  • Switch Function:

    SPST

  • Switch Type:

    SLIDE DIP SWITCH

  • Terminal Finish:

    Matte Tin (Sn)

  • Termination Type:

    SOLDER

76SB09ST Frequently Asked Questions (FAQs)

  • The recommended torque for mounting the 76SB09ST switch is 5-7 in-lbs (0.56-0.79 Nm) to ensure proper seating and prevent damage to the switch or PCB.
  • Yes, the 76SB09ST switch is designed to withstand vibration and shock. It meets the IEC 60068-2-27 vibration test standard and can operate in environments with vibrations up to 10 G peak acceleration.
  • The 76SB09ST switch has a sealed construction with an IP67 rating, which means it is protected against dust ingress and can withstand immersion in water up to 1 meter for 30 minutes.
  • The 76SB09ST switch is designed to operate in temperatures ranging from -40°C to 85°C (-40°F to 185°F), making it suitable for use in a wide range of applications.
  • The 76SB09ST switch is designed to meet the requirements of safety-critical applications. It is UL recognized and meets the IEC 61010-1 safety standard for electrical safety.

Trust Checks

This model has been provided by an expert contributor.
Expert Contribution
This model has been verified by system checks.
System Verified
This model has been reviewed by community users.
Community Approved
Sponsored

76SB09ST Overview

Use the download button to access the 76SB09ST schematic symbol, PCB footprint, and 3D model.
To find more CAD model downloads similar to this part, try a partial part number search, like 76SB0, or try a keyword search, such as DIP Switches

Parts related to 76SB09ST

Showing 0 results

Part Image

← Prev Next →
About Us Contact Us Terms of Service Do not sell or share my personal information Privacy Policy Digital Services Act Library Loader Twitter LinkedIn

All content Copyright © 2020, Supplyframe.com. All rights reserved. Back to top ↑

76SB09ST Alternates

Showing results

Image Part Number Model
Part Image 76SB09S Grayhill Inc

Slide Dip Switch, 9 Switches, SPST, On-off, Latched, 0.15A, 30VDC, 18 PCB Hole Cnt, Solder Terminal, Through Hole-straight
