76SB12ST - Grayhill

Description: Switch DIP ON OFF SPST 12 Raised Rocker 0.15A 30VDC PC Pins 2000Cycles/SwitchCycles 2.54mm Thru-Hole Tube

Download 76SB12ST Model
Schematic
symbols
Schematic symbol is unavailable for download
PCB
footprints
PCB footprint is unavailable for download
3D
models
3D model is unavailable for download
Send part feedback
Symbol
76SB12ST - Grayhill - PCB symbol
click to zoom
PCB Footprints

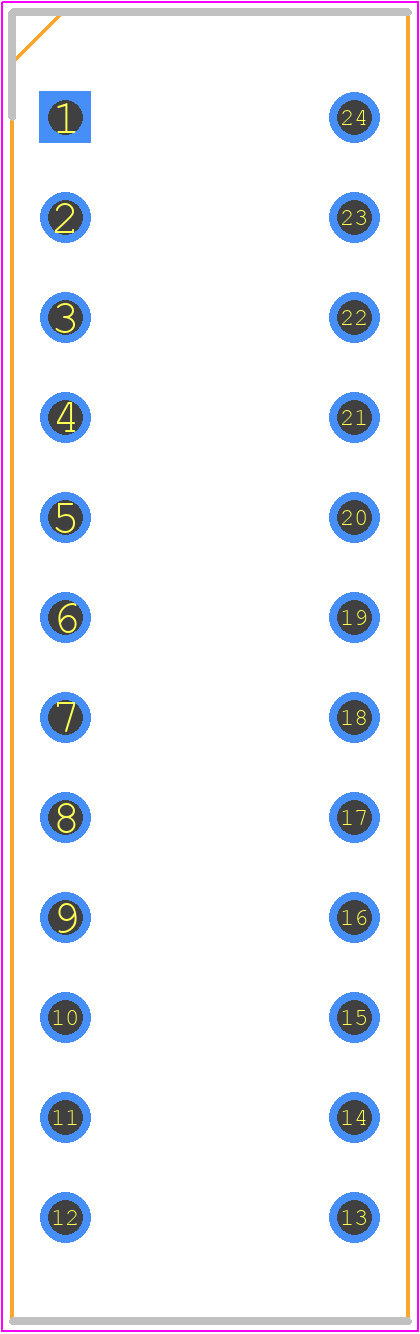

76SB12ST - Grayhill PCB footprint - Dual-In-Line Sockets - Dual-In-Line Sockets - 76SB12ST
click to zoom
3D Models
76SB12ST - Grayhill - 3D model - Dual-In-Line Sockets - 76SB12ST
click to zoom

76SB12ST Details

  • Manufacturer Part Number:

    76SB12ST

  • Pbfree Code:

    Yes

  • Rohs Code:

    Yes

  • Part Life Cycle Code:

    Active

  • Package Description:

    ROHS COMPLIANT

  • Country Of Origin:

    Mainland China

  • ECCN Code:

    EAR99

  • HTS Code:

    8536.50.90.65

  • Factory Lead Time:

    18 Weeks

  • Manufacturer:

    Grayhill Inc

  • YTEOL:

    6.5

  • Body Breadth:

    9.65 mm

  • Body Height:

    7.42 mm

  • Body Length or Diameter:

    32.5 mm

  • Contact Current(DC)-Max:

    0.15 A

  • Contact (DC) Max Rating R Load:

    .15A@30VDC

  • Contact Voltage(DC)-Max:

    30 V

  • Electrical Life:

    2000 Cycle(s)

  • Mounting Feature:

    THROUGH HOLE-STRAIGHT

  • Number of Switch Sections:

    12

  • Operating Temperature-Max:

    85 °C

  • Operating Temperature-Min:

    -40 °C

  • PCB Hole Count:

    24

  • Packing Method:

    TUBE

  • Sealing:

    TOP TAPE SEALED

  • Surface Mount:

    NO

  • Switch Action:

    LATCHED

  • Switch Function:

    SPST

  • Switch Type:

    SLIDE DIP SWITCH

  • Termination Type:

    SOLDER

76SB12ST Frequently Asked Questions (FAQs)

  • The recommended torque is 10-15 in-lbs (1.1-1.7 Nm) to ensure proper seating and prevent damage to the switch.
  • Yes, the switch is designed to withstand vibrations up to 10 G's (98 m/s²) in the Z-axis and 5 G's (49 m/s²) in the X- and Y-axes, making it suitable for high-vibration applications.
  • The 76SB12ST is rated for operation in temperatures ranging from -20°C to 85°C (-4°F to 185°F) and humidity up to 95% RH, making it suitable for use in harsh environments.
  • Yes, Grayhill Inc offers customization options for the 76SB12ST, including custom shaft lengths and terminations, such as wire leads or PCB pins, to meet specific application requirements.
  • The 76SB12ST is rated for a minimum of 10,000 cycles, but actual lifespan may vary depending on usage, environment, and maintenance.
