76SC04ST - Grayhill

Description: Dip Switch SPDT 4 Position Through Hole Rocker Actuator 150mA 30VDC

Download 76SC04ST Model
Schematic
symbols
Schematic symbol is unavailable for download
PCB
footprints
PCB footprint is unavailable for download
3D
models
3D model is unavailable for download
Send part feedback
Symbol

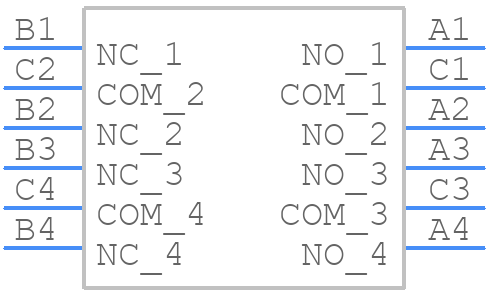

76SC04ST - Grayhill - PCB symbol
click to zoom
PCB Footprints
76SC04ST - Grayhill PCB footprint - Other - Other - 76SC04ST-7
click to zoom
3D Models
76SC04ST - Grayhill - 3D model - Other - 76SC04ST-7
click to zoom

76SC04ST Details

  • Manufacturer Part Number:

    76SC04ST

  • Pbfree Code:

    Yes

  • Rohs Code:

    Yes

  • Part Life Cycle Code:

    Active

  • Package Description:

    ROHS COMPLIANT

  • Country Of Origin:

    Mainland China

  • ECCN Code:

    EAR99

  • HTS Code:

    8536.50.90.65

  • Factory Lead Time:

    18 Weeks

  • Manufacturer:

    Grayhill Inc

  • YTEOL:

    6.6

  • Body Breadth:

    9.65 mm

  • Body Height:

    6.27 mm

  • Body Length or Diameter:

    19.8 mm

  • Contact Current(DC)-Max:

    0.15 A

  • Contact (DC) Max Rating R Load:

    .15A@30VDC

  • Contact Voltage(DC)-Max:

    30 V

  • Electrical Life:

    2000 Cycle(s)

  • Mounting Feature:

    THROUGH HOLE-STRAIGHT

  • Number of Switch Sections:

    4

  • Operating Temperature-Max:

    85 °C

  • Operating Temperature-Min:

    -40 °C

  • PCB Hole Count:

    8

  • Packing Method:

    TUBE

  • Sealing:

    TOP TAPE SEALED

  • Surface Mount:

    NO

  • Switch Action:

    LATCHED

  • Switch Function:

    SPDT

  • Switch Type:

    SLIDE DIP SWITCH

  • Termination Type:

    SOLDER

76SC04ST Frequently Asked Questions (FAQs)

  • The recommended torque for the 76SC04ST rotary switch is 0.5-1.5 N·m (4.4-13.4 in·lb).
  • Yes, the 76SC04ST is designed to withstand high-vibration environments, but it's recommended to consult with Grayhill's application engineers to ensure the switch meets the specific vibration requirements of your application.
  • The operating temperature range for the 76SC04ST is -20°C to 85°C (-4°F to 185°F).
  • The 76SC04ST has a standard pinout and footprint, but it's recommended to verify the switch's dimensions and pin layout with your PCB design to ensure compatibility.
  • Yes, Grayhill offers customization options for the 76SC04ST, including rotation angle and detent torque. Contact Grayhill's sales team to discuss your specific requirements.
