76SD02ST - Grayhill

Description: Dip Switch DPDT 2 Position Through Hole Rocker Actuator 150mA 30VDC

Download 76SD02ST Model
Schematic
symbols
Schematic symbol is unavailable for download
PCB
footprints
PCB footprint is unavailable for download
3D
models
3D model is unavailable for download
Send part feedback
Symbol

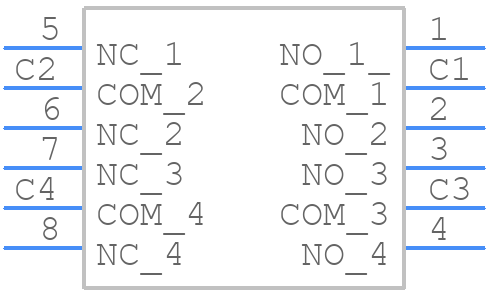

76SD02ST - Grayhill - PCB symbol
click to zoom
PCB Footprints

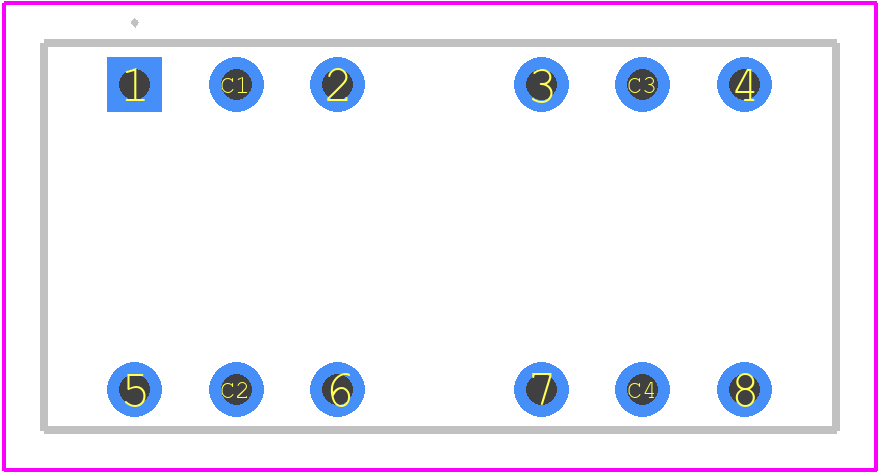

76SD02ST - Grayhill PCB footprint - Other - Other - 76SD02ST-5
click to zoom
3D Models
76SD02ST - Grayhill - 3D model - Other - 76SD02ST-5
click to zoom

76SD02ST Details

  • Manufacturer Part Number:

    76SD02ST

  • Pbfree Code:

    Yes

  • Rohs Code:

    Yes

  • Part Life Cycle Code:

    Active

  • Package Description:

    ROHS COMPLIANT

  • Country Of Origin:

    Mainland China

  • ECCN Code:

    EAR99

  • HTS Code:

    8536.50.90.65

  • Factory Lead Time:

    18 Weeks

  • Manufacturer:

    Grayhill Inc

  • YTEOL:

    6.8

  • Body Breadth:

    9.65 mm

  • Body Height:

    6.78 mm

  • Body Length or Diameter:

    19.8 mm

  • Contact Current(DC)-Max:

    0.15 A

  • Contact (DC) Max Rating R Load:

    .15A@30VDC

  • Contact Voltage(DC)-Max:

    30 V

  • Electrical Life:

    2000 Cycle(s)

  • JESD-609 Code:

    e3

  • Mounting Feature:

    THROUGH HOLE-STRAIGHT

  • Number of Switch Sections:

    2

  • Operating Temperature-Max:

    85 °C

  • Operating Temperature-Min:

    -40 °C

  • PCB Hole Count:

    4

  • Packing Method:

    TUBE

  • Sealing:

    TOP TAPE SEALED

  • Surface Mount:

    NO

  • Switch Action:

    LATCHED

  • Switch Function:

    DPDT

  • Switch Type:

    SLIDE DIP SWITCH

  • Terminal Finish:

    MATTE TIN

  • Termination Type:

    SOLDER

76SD02ST Frequently Asked Questions (FAQs)

  • The recommended torque for mounting the 76SD02ST switch is 5-7 in-lbs (0.56-0.79 Nm) to ensure proper installation and prevent damage.
  • Yes, the 76SD02ST switch is designed to withstand high-vibration environments. It meets the IEC 60068-2-6 vibration test standard, which ensures reliable operation in applications with vibration.
  • Yes, the 76SD02ST switch has a sealed construction that meets the IP67 rating, which means it is protected against dust and can withstand immersion in water up to 1 meter for 30 minutes.
  • The 76SD02ST switch operates within a temperature range of -20°C to 85°C (-4°F to 185°F), making it suitable for a wide range of applications.
  • Yes, Grayhill Inc offers customization options for the 76SD02ST switch, including different shaft and bushing configurations. Contact their sales team for more information.

Trust Checks

This model has been provided by community users.
Community Provided
This model has been verified by system checks.
System Verified
This model has been reviewed by community users.
Community Approved
Sponsored

76SD02ST Overview

Use the download button to access the 76SD02ST schematic symbol, PCB footprint, and 3D model.
To find more CAD model downloads similar to this part, try a partial part number search, like 76SD0, or try a keyword search, such as DIP Switches
