76SD02T - Grayhill

Description: DIP Switches / SIP Switches DIP Switch, DPDT form D, raised rocker, 2 position, RoHS Compliant

Download 76SD02T Model
Schematic
symbols
Schematic symbol is unavailable for download
PCB
footprints
PCB footprint is unavailable for download
3D
models
3D model is unavailable for download
Send part feedback
Symbol
76SD02T - Grayhill - PCB symbol
click to zoom
PCB Footprints

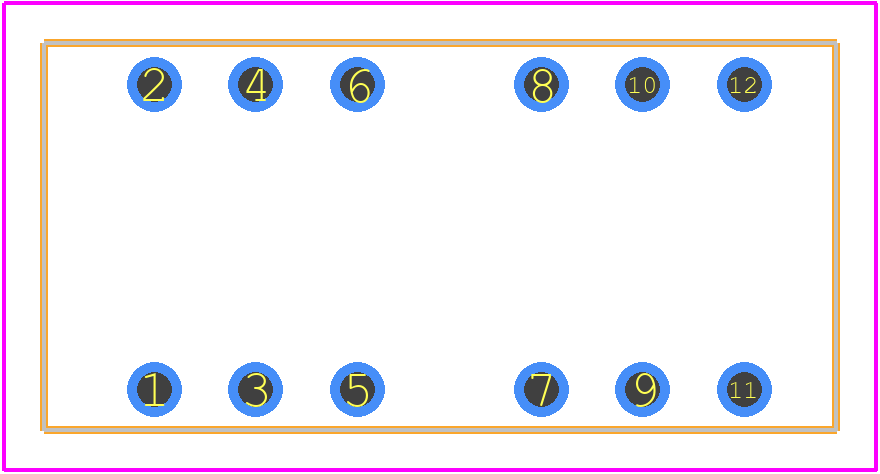

76SD02T - Grayhill PCB footprint - Other - Other - 76SD02T_1
click to zoom
3D Models
76SD02T - Grayhill - 3D model - Other - 76SD02T_1
click to zoom

76SD02T Details

  • Manufacturer Part Number:

    76SD02T

  • Pbfree Code:

    Yes

  • Rohs Code:

    Yes

  • Part Life Cycle Code:

    Active

  • Country Of Origin:

    Mainland China

  • ECCN Code:

    EAR99

  • HTS Code:

    8536.50.90.65

  • Factory Lead Time:

    18 Weeks

  • Manufacturer:

    Grayhill Inc

  • YTEOL:

    6.8

  • Body Breadth:

    9.65 mm

  • Body Height:

    6.78 mm

  • Body Length or Diameter:

    19.8 mm

  • Contact Current(DC)-Max:

    0.15 A

  • Contact (DC) Max Rating R Load:

    .15A@30VDC

  • Contact Voltage(DC)-Max:

    30 V

  • Electrical Life:

    2000 Cycle(s)

  • JESD-609 Code:

    e3

  • Mounting Feature:

    THROUGH HOLE-STRAIGHT

  • Number of Switch Sections:

    2

  • Operating Temperature-Max:

    85 °C

  • Operating Temperature-Min:

    -40 °C

  • PCB Hole Count:

    4

  • Packing Method:

    TUBE

  • Surface Mount:

    NO

  • Switch Action:

    LATCHED

  • Switch Function:

    DPDT

  • Switch Type:

    SLIDE DIP SWITCH

  • Terminal Finish:

    MATTE TIN

  • Termination Type:

    SOLDER

76SD02T Frequently Asked Questions (FAQs)

  • The recommended torque for mounting the 76SD02T switch is 5-7 in-lbs (0.56-0.79 Nm) to ensure proper seating and prevent damage to the switch or PCB.
  • Yes, the 76SD02T switch is designed to withstand high-vibration environments. It meets the IEC 60068-2-6 vibration test standard, which simulates vibrations up to 10 G peak acceleration.
  • Yes, the 76SD02T switch has a sealed construction that meets IP67 standards, providing protection against dust and water ingress up to 1 meter for 30 minutes.
  • The 76SD02T switch operates within a temperature range of -40°C to 85°C (-40°F to 185°F), making it suitable for a wide range of applications.
  • Yes, Grayhill Inc offers customization options for the 76SD02T switch, including different shaft lengths and terminations. Contact their sales team for more information and to discuss your specific requirements.
