76STC04T - Grayhill

Description: Grayhill Toggle Switch, PCB Mount, SPDT, Through Hole Terminal, 30V dc

Download 76STC04T Model
Schematic
symbols
Schematic symbol is unavailable for download
PCB
footprints
PCB footprint is unavailable for download
3D
models
3D model is unavailable for download
Send part feedback
Symbol
76STC04T - Grayhill - PCB symbol
click to zoom
PCB Footprints

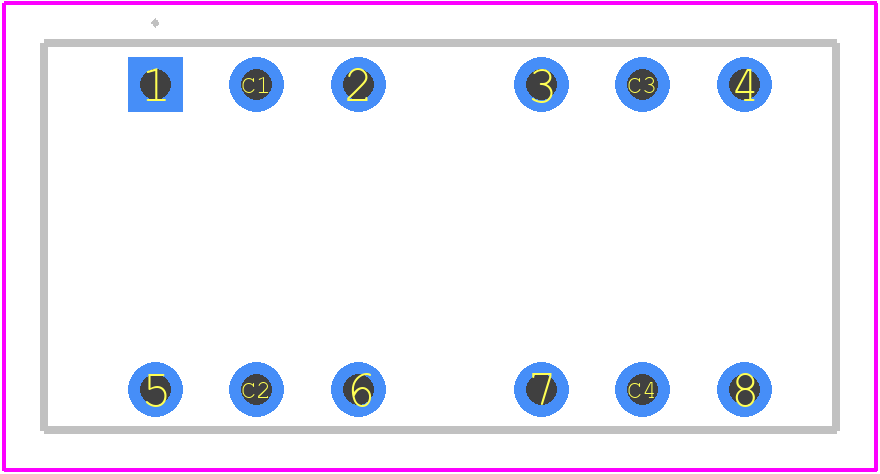

76STC04T - Grayhill PCB footprint - Other - Other - 76STC04T-7
click to zoom
3D Models
76STC04T - Grayhill - 3D model - Other - 76STC04T-7
click to zoom

76STC04T Details

  • Manufacturer Part Number:

    76STC04T

  • Pbfree Code:

    Yes

  • Rohs Code:

    Yes

  • Part Life Cycle Code:

    Active

  • Country Of Origin:

    Mainland China

  • ECCN Code:

    EAR99

  • HTS Code:

    8536.50.90.65

  • Manufacturer:

    Grayhill Inc

  • YTEOL:

    6.6

  • Actuator Length:

    0.18 inch

  • Actuator Type:

    TOGGLE

  • Body Breadth:

    9.65 mm

  • Body Height:

    6.27 mm

  • Body Length or Diameter:

    19.8 mm

  • Contact Current(DC)-Max:

    0.15 A

  • Contact (DC) Max Rating R Load:

    .15A@30VDC

  • Contact Voltage(DC)-Max:

    30 V

  • Electrical Life:

    2000 Cycle(s)

  • Mounting Feature:

    THROUGH HOLE-STRAIGHT

  • Number of Switch Sections:

    4

  • Operating Temperature-Max:

    85 °C

  • Operating Temperature-Min:

    -40 °C

  • PCB Hole Count:

    8

  • Packing Method:

    TUBE

  • Surface Mount:

    NO

  • Switch Action:

    LATCHED

  • Switch Function:

    SPDT

  • Switch Type:

    SLIDE DIP SWITCH

  • Terminal Length:

    0.156 inch

  • Termination Type:

    SOLDER
