- Part Number 770-813
- Manufacturer Wago
- Pin Count 6
- Part Category Connector
- Package Category Other
- Footprint Name Other - 770-803-1
- Released Date Feb 28, 2024
- Last Modified Date Sep 13, 2024 8:03 AM UTC
- Pinout / Pin List Click Here (Member Only)
770-813 Details
-
Manufacturer Part Number:
770-813
-
Rohs Code:
Yes
-
Part Life Cycle Code:
Active
-
Country Of Origin:
Poland
-
ECCN Code:
EAR99
-
HTS Code:
8536.90.40.00
-
Manufacturer:
WAGO Innovative Connections
-
YTEOL:
7
-
Additional Feature:
INSULATOR: POLYAMIDE66
-
Fastening Method:
SPRING CAGE
-
Mounting Type:
BOARD
770-813 Frequently Asked Questions (FAQs)
-
The recommended torque for the screw connections is 0.6 Nm to 1.2 Nm (5.3 in-lbs to 10.6 in-lbs). It's essential to follow the torque specification to ensure reliable connections.
-
Yes, the 770-813 connector is designed for use in harsh environments. It has a high IP67 rating, which means it can withstand dust, water, and other environmental factors. However, it's essential to follow the installation and maintenance guidelines to ensure the connector's performance and longevity.
-
The maximum operating temperature for the 770-813 connector is 85°C (185°F). It's essential to ensure that the connector is not exposed to temperatures above this rating to prevent damage or malfunction.
-
Yes, the 770-813 connector is suitable for use with stranded wires. However, it's essential to follow the wire preparation guidelines and use the correct wire size and type to ensure reliable connections.
-
Yes, the 770-813 connector is UL certified, which means it meets the safety standards set by Underwriters Laboratories. This certification ensures that the connector meets the required safety standards for use in various applications.
Trust Checks
Manufacturer Approved
Machine Generated
System Verified
Community Approved
770-813 Overview

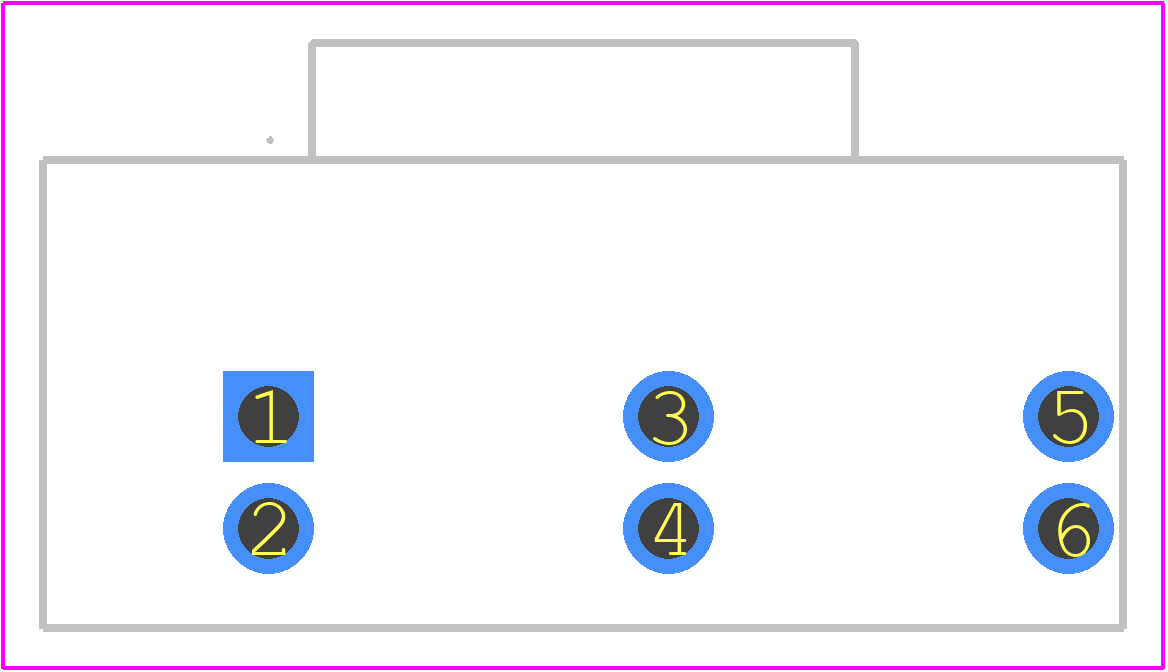

Use the download button to access the 770-813 schematic symbol, PCB footprint, and 3D model.
