- Part Number 770-815
- Manufacturer Wago
- Pin Count 10
- Part Category Connector
- Package Category Other

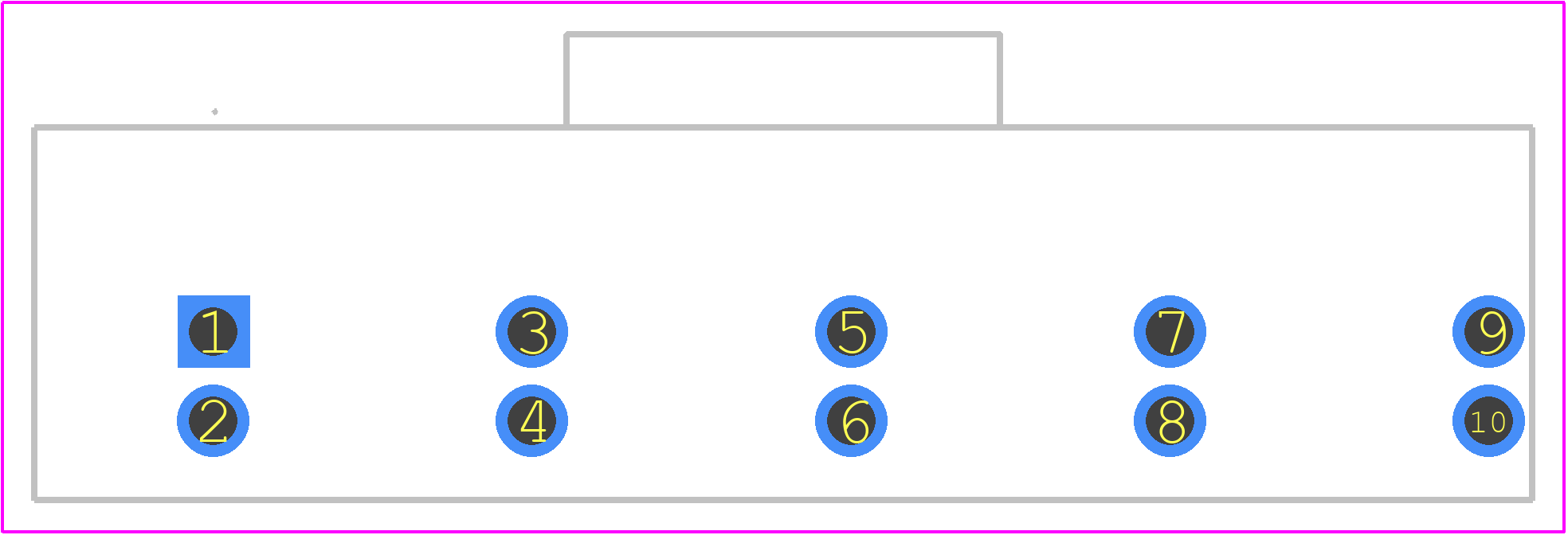

- Footprint Name Other - 770-805-1
- Released Date Feb 28, 2024
- Last Modified Date Sep 13, 2024 8:03 AM UTC
- Pinout / Pin List Click Here (Member Only)
770-815 Details
-
Manufacturer Part Number:
770-815
-
Rohs Code:
Yes
-
Part Life Cycle Code:
Active
-
Country Of Origin:
Poland
-
ECCN Code:
EAR99
-
HTS Code:
8536.90.40.00
-
Manufacturer:
WAGO Innovative Connections
-
YTEOL:
7
-
Additional Feature:
INSULATOR: POLYAMIDE66
-
Fastening Method:
SPRING CAGE
-
Mounting Type:
BOARD
770-815 Frequently Asked Questions (FAQs)
-
The recommended torque for the screw connections is 0.6 Nm to 1.2 Nm (5 in-lbs to 10 in-lbs).
-
Yes, the 770-815 connector is designed to withstand high-vibration environments. It meets the vibration requirements of IEC 61373 Cat. 2.
-
Yes, the 770-815 connector is suitable for outdoor use. It has a rating of IP67, which means it is protected against dust and water ingress.
-
Yes, the 770-815 connector is designed to work with stranded wires. However, it's recommended to use wires with a minimum strand count of 30.
-
The operating temperature range of the 770-815 connector is -40°C to 125°C (-40°F to 257°F).
