776180-2 footprint, schematic symbol and 3D model by TE Connectivity

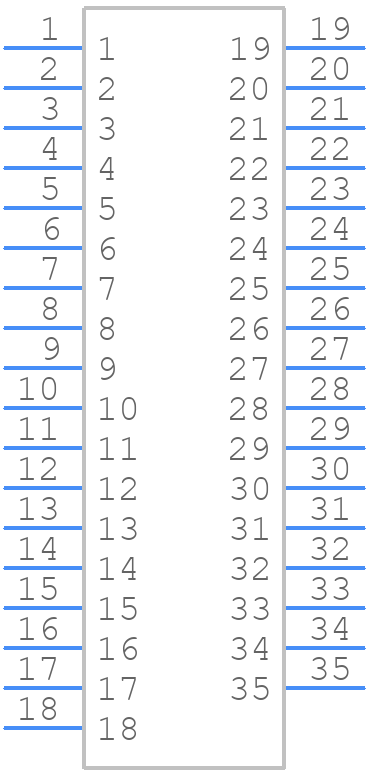

Symbol

click to zoom

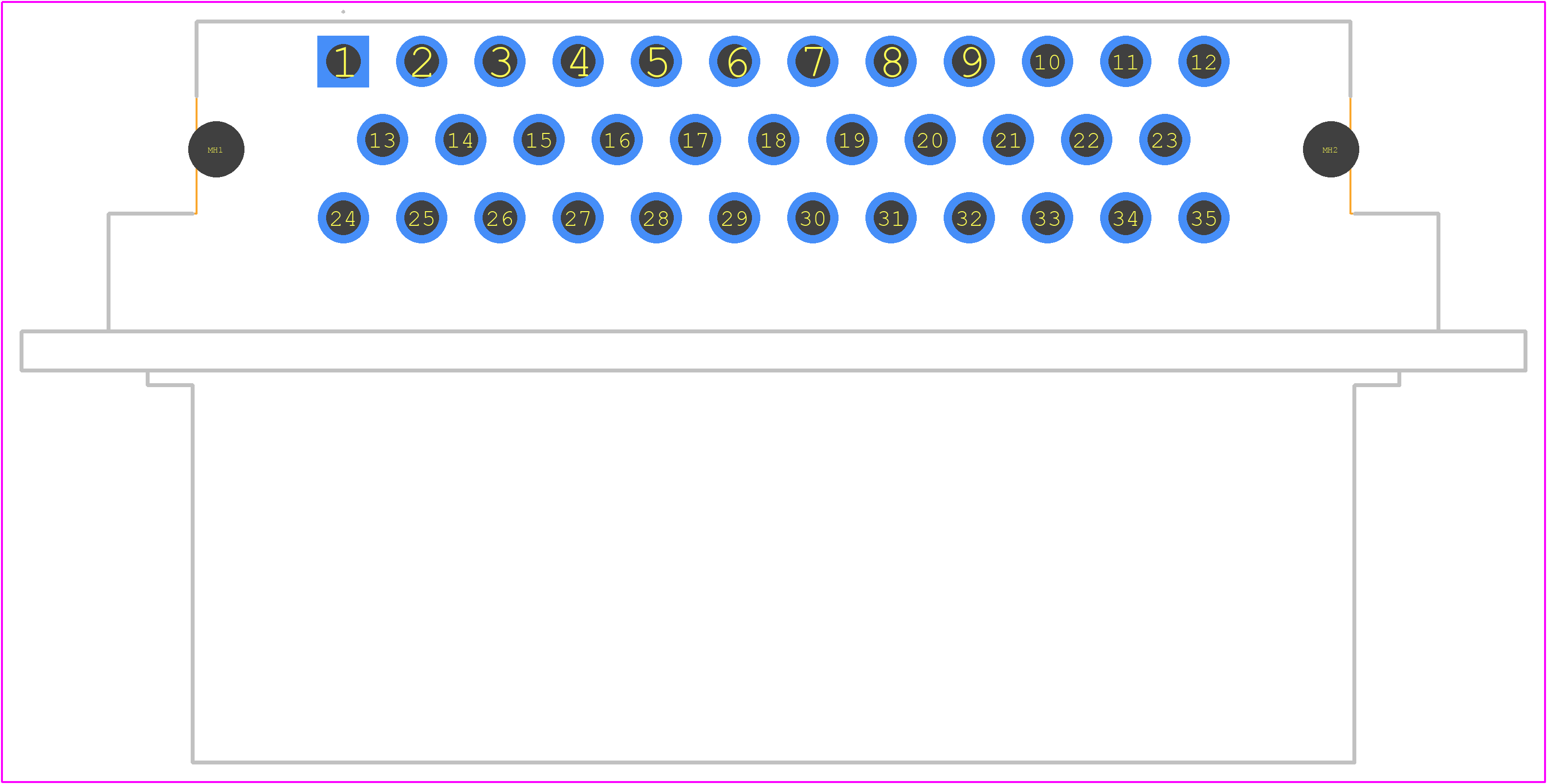

PCB Footprints

776180-2 - TE Connectivity PCB footprint - Other - Other - 776180-2-3

click to zoom

Datasheet Download Datasheet
Stock & Prices Price & Stock for 776180-2
Part Number 776180-2
Manufacturer TE Connectivity
Pin Count 35
Part Category Connector
Package Category Other
Footprint Name Other - 776180-2-3
Released Date Mar 6, 2024
Last Modified Date Nov 28, 2024 1:54 PM UTC
Pinout / Pin List Click Here (Member Only)

776180-2 Details

Manufacturer Part Number:
776180-2
Rohs Code:
Yes
Part Life Cycle Code:
Active
ECCN Code:
EAR99
HTS Code:
8536.69.40.30
Factory Lead Time:
7 Weeks, 2 Days
Manufacturer:
TE Connectivity
YTEOL:
7.44
Additional Feature:
POLARIZED
Board Mounting Option:
BOARD LOCK
Body Breadth:
0.878 inch
Body Depth:
1.594 inch
Body Length:
3.433 inch
Connector Type:
COMBINATION LINE CONNECTOR
Contact Finish Mating:
NOT APPLICABLE
Contact Gender:
MALE
Contact Material:
NOT APPLICABLE
Contact Style:
RND PIN-SKT
DIN Conformance:
NO
EMI Shielded:
NO
Empty Shell:
NO
Filter Feature:
NO
IEC Conformance:
NO
Insulator Material:
GLASS FILLED POLYBUTYLENE TEREPHTHALATE
MIL Conformance:
NO
Mains Connector Rating:
8A
Mating Information:
MULTIPLE MATING PARTS AVAILABLE
Mixed Contacts:
NO
Mounting Style:
RIGHT ANGLE
Mounting Type:
BOARD AND PANEL
Number of Ports:
1
Number of Rows Loaded:
3
Operating Temperature-Max:
105 °C
Operating Temperature-Min:
-40 °C
Option:
GENERAL PURPOSE
Panel Mount:
NO
Polarization Key:
POLARIZED
Rated Current (Signal):
8 A
Reference Standard:
UL
Terminal Pitch:
4 mm
Termination Type:
SOLDER
Total Number of Contacts:
35
UL Flammability Code:
94V-0

776180-2 Frequently Asked Questions (FAQs)

The recommended torque value for the screw terminals is 0.5-1.5 Nm (4.4-13.3 in-lbs). It's essential to follow this range to ensure reliable connections and prevent damage to the connector.
Yes, the 776180-2 connector is designed to withstand vibrations and is suitable for use in applications with moderate to high vibration levels. However, it's essential to ensure proper mounting and secure the connector to prevent damage or disconnection.
While the datasheet recommends AWG 20-24 wire sizes, the connector can accommodate smaller wire sizes (e.g., AWG 26-28) with some adjustments. However, using larger wire sizes may not be possible due to the terminal design. Consult with TE Connectivity or a qualified engineer for specific guidance.
To ensure proper mating and unmating, follow the recommended mating sequence, and apply gentle, even pressure while inserting or removing the connector. Avoid applying excessive force, which can damage the connector or its components.
The 776180-2 connector is designed to operate in a temperature range of -40°C to 125°C (-40°F to 257°F) and can withstand moderate humidity levels. However, extreme environmental conditions may affect the connector's performance and lifespan. Consult with TE Connectivity or a qualified engineer for specific guidance on using the connector in harsh environments.

Trust Checks

Manufacturer Collaborated

System Verified

Community Approved

776180-2 Overview

Use the download button to access the 776180-2 schematic symbol and PCB footprint.

To find more CAD model downloads similar to this part, try a partial part number search, like 77618, or try a keyword search, such as Combination Line Connectors
