776180-5 - TE Connectivity

Description: Body Features: Primary Product Color Blue | Connector & Keying Code 5 | Configuration Features: Number of Rows 3 | Number of Positions 35 | PCB Mount Orientation Right Angle | Contact Features: Contact Mating Area Plating Material Tin | Contact Current Rating (Max) 8 AMP | Contact Type Pin | Housing Features: Centerline (Pitch) .157 INCH | Centerline (Pitch) 4 MM | Industry Standards: UL Flammability Rating UL 94V-0 | Mechanical Attachment: Connector Mounting Type Board Mount | Mating Alignment With | PCB M

Download 776180-5 Model
Schematic
symbols
Schematic symbol is unavailable for download
PCB
footprints
PCB footprint is unavailable for download
3D
models
3D model is unavailable for download
Send part feedback
Symbol

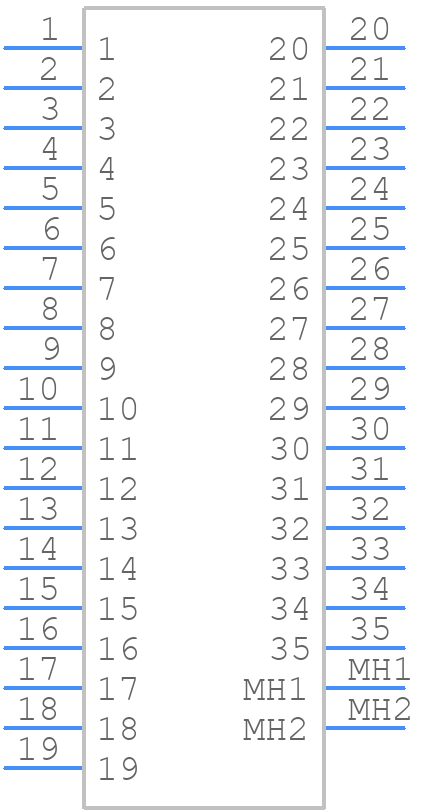

776180-5 - TE Connectivity - PCB symbol
click to zoom
PCB Footprints

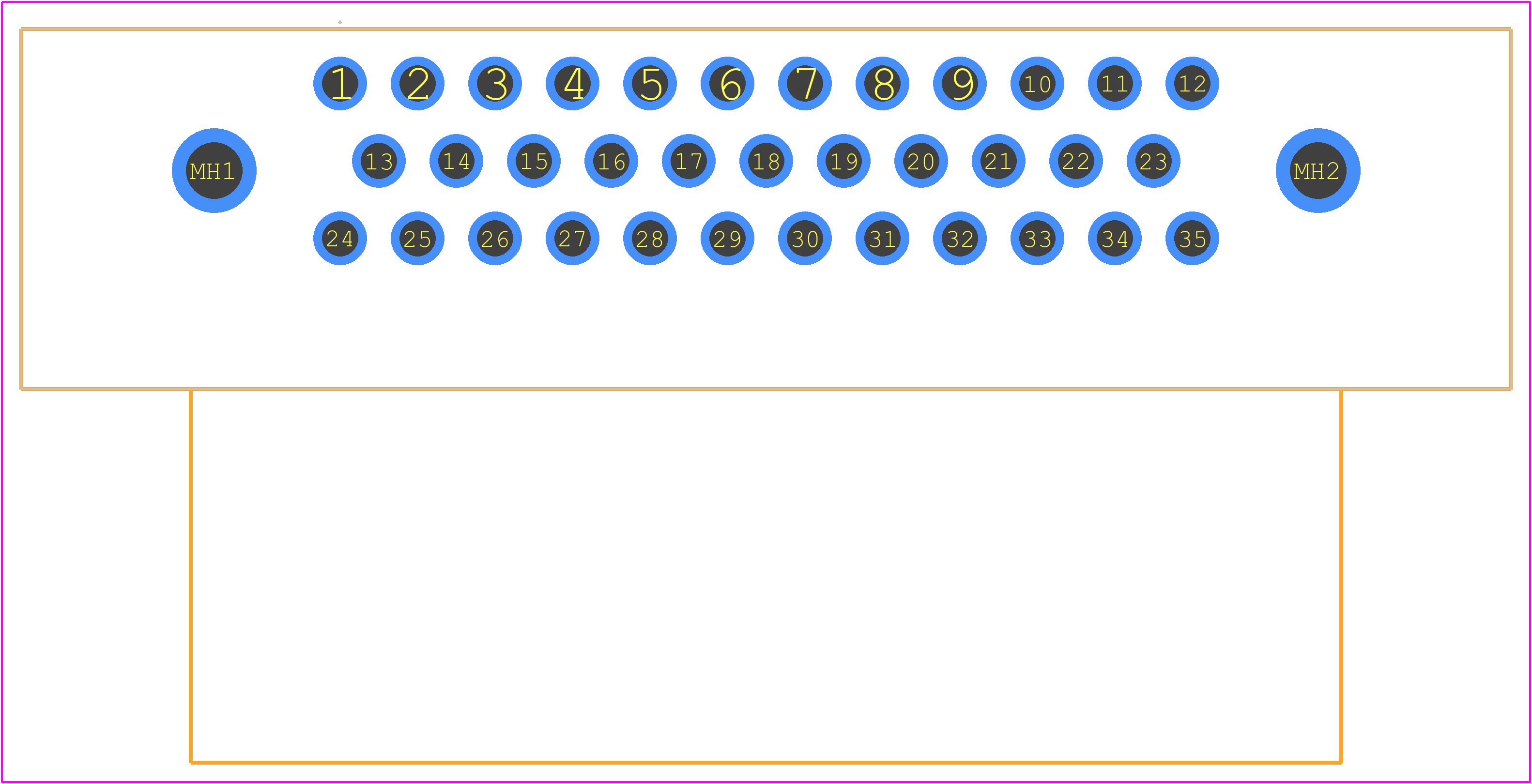

776180-5 - TE Connectivity PCB footprint - Other - Other - 776180-5-2
click to zoom
3D Models
776180-5 - TE Connectivity - 3D model - Other - 776180-5-2
click to zoom

776180-5 Details

  • Manufacturer Part Number:

    776180-5

  • Rohs Code:

    Yes

  • Part Life Cycle Code:

    Active

  • ECCN Code:

    EAR99

  • HTS Code:

    8536.69.40.30

  • Factory Lead Time:

    7 Weeks, 2 Days

  • Manufacturer:

    TE Connectivity

  • YTEOL:

    7.44

  • Additional Feature:

    POLARIZED

  • Board Mounting Option:

    BOARD LOCK

  • Body Breadth:

    0.878 inch

  • Body Depth:

    1.594 inch

  • Body Length:

    3.433 inch

  • Connector Type:

    COMBINATION LINE CONNECTOR

  • Contact Finish Mating:

    NOT APPLICABLE

  • Contact Gender:

    MALE

  • Contact Material:

    NOT APPLICABLE

  • Contact Style:

    RND PIN-SKT

  • DIN Conformance:

    NO

  • EMI Shielded:

    NO

  • Empty Shell:

    NO

  • Filter Feature:

    NO

  • IEC Conformance:

    NO

  • Insulator Material:

    GLASS FILLED POLYBUTYLENE TEREPHTHALATE

  • MIL Conformance:

    NO

  • Mains Connector Rating:

    8A

  • Mating Information:

    MULTIPLE MATING PARTS AVAILABLE

  • Mixed Contacts:

    NO

  • Mounting Style:

    RIGHT ANGLE

  • Mounting Type:

    BOARD AND PANEL

  • Number of Ports:

    1

  • Number of Rows Loaded:

    3

  • Operating Temperature-Max:

    105 °C

  • Operating Temperature-Min:

    -40 °C

  • Option:

    GENERAL PURPOSE

  • Panel Mount:

    NO

  • Polarization Key:

    POLARIZED

  • Rated Current (Signal):

    8 A

  • Reference Standard:

    UL

  • Terminal Pitch:

    4 mm

  • Termination Type:

    SOLDER

  • Total Number of Contacts:

    35

  • UL Flammability Code:

    94V-0

776180-5 Frequently Asked Questions (FAQs)

  • The recommended torque value for the screw terminals is 0.5-0.7 Nm (4.4-6.3 in-lbs). It's essential to follow this torque specification to ensure reliable connections and prevent damage to the connector.
  • Yes, the 776180-5 connector is designed to withstand vibrations and is suitable for use in applications with moderate to high vibration levels. However, it's essential to follow proper mounting and installation procedures to ensure the connector remains secure.
  • While the datasheet specifies 18 AWG wire, the connector can accommodate wire sizes between 16 AWG and 20 AWG. However, it's crucial to verify the wire size and insulation diameter to ensure proper fit and connection reliability.
  • The 776180-5 connector is rated for operation in temperatures ranging from -40°C to 125°C (-40°F to 257°F). It's essential to ensure the connector is used within this temperature range to maintain its performance and reliability.
  • The 776180-5 connector is designed to be resistant to moisture and corrosion, but it's not suitable for use in extremely harsh environments. If you plan to use the connector in an environment with high humidity or exposure to chemicals, consider using additional protection measures, such as conformal coatings or sealing compounds.
