776228-1 - TE Connectivity

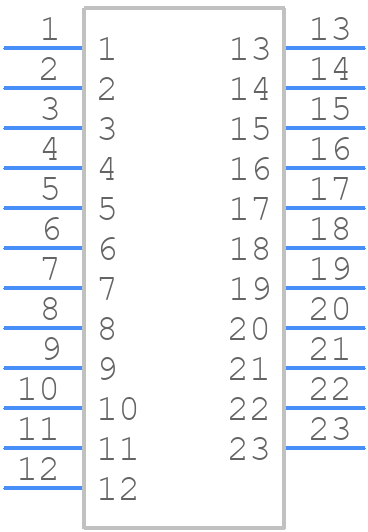

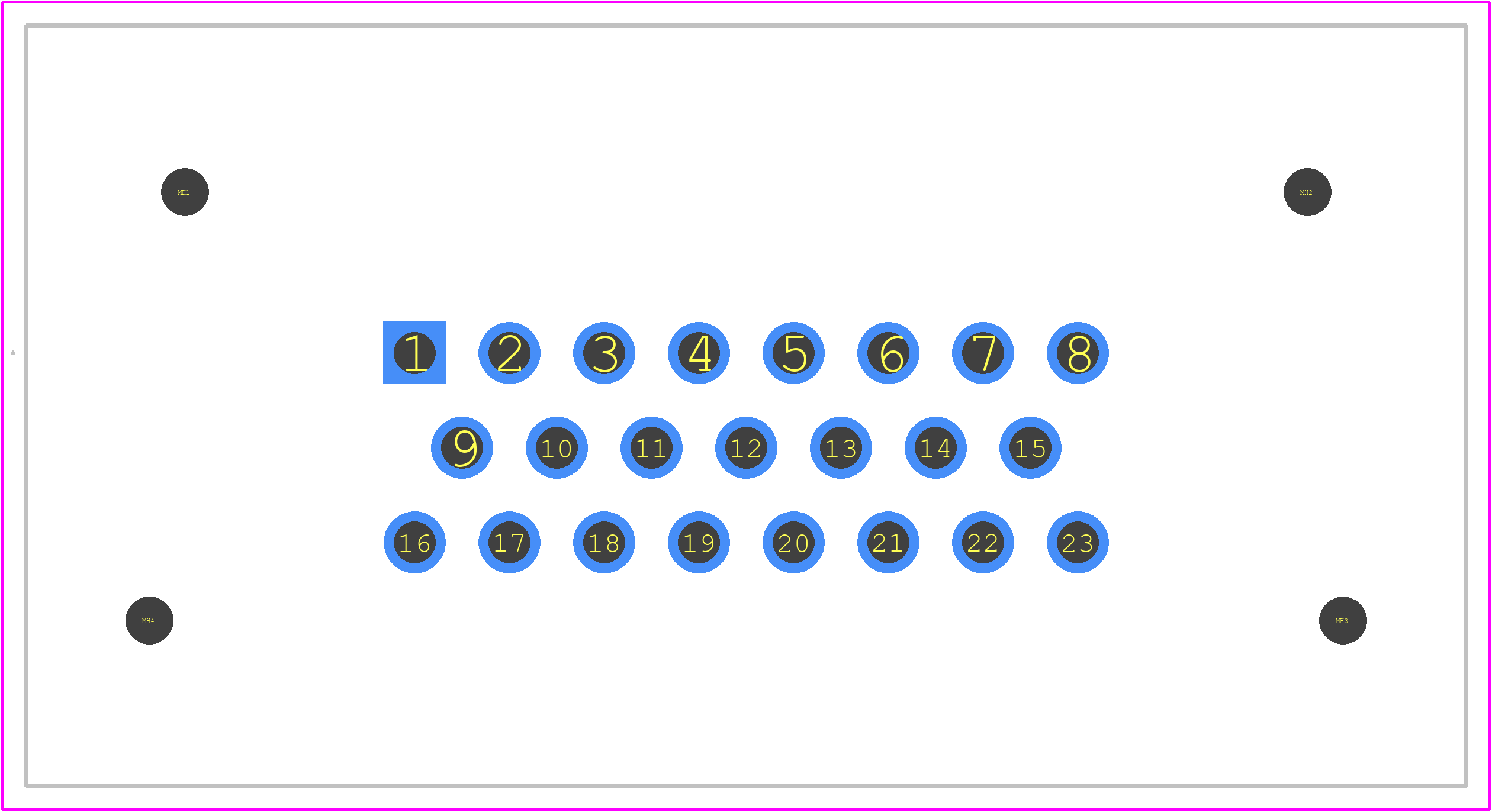

776228-1 Details

• Manufacturer Part Number:

  776228-1

• Brand Name:

  AMP

• Pbfree Code:

  Yes

• Rohs Code:

  Yes

• Part Life Cycle Code:

  Active

• ECCN Code:

  EAR99

• HTS Code:

  8536.69.40.30

• Factory Lead Time:

  14 Weeks

• Manufacturer:

  TE Connectivity

• YTEOL:

  7.44

• Additional Feature:

  POLARIZED

• Board Mounting Option:

  HOLE .078-.082

• Body Breadth:

  1.264 inch

• Body Length:

  2.394 inch

• Body/Shell Style:

  PLUG

• Connector Type:

  COMBINATION LINE CONNECTOR

• Contact Finish Mating:

  NOT APPLICABLE

• Contact Finish Termination:

  Tin (Sn)

• Contact Gender:

  MALE

• Contact Material:

  NOT APPLICABLE

• Contact Pattern:

  STAGGERED

• Contact Resistance:

  10 mΩ

• Contact Style:

  RND PIN-SKT

• DIN Conformance:

  NO

• EMI Shielded:

  NO

• Empty Shell:

  YES

• Filter Feature:

  NO

• IEC Conformance:

  NO

• Insulation Resistance:

  100000000 Ω

• Insulator Color:

  BLACK

• Insulator Material:

  GLASS FILLED POLYBUTYLENE TEREPHTHALATE

• JESD-609 Code:

  e3

• MIL Conformance:

  NO

• Mains Connector Rating:

  8A

• Mating Contact Pitch:

  0.157 inch

• Mating Contact Row Spacing:

  0.156 inch

• Mixed Contacts:

  NO

• Mounting Option 1:

  LATCH

• Mounting Option 2:

  LOCKING

• Mounting Style:

  STRAIGHT

• Mounting Type:

  BOARD

• Number Of Connectors:

  ONE

• Number Of PCB Rows:

  3

• Number of Ports:

  1

• Number of Rows Loaded:

  3

• Operating Temperature-Max:

  105 °C

• Operating Temperature-Min:

  -40 °C

• Option:

  GENERAL PURPOSE

• PCB Contact Pattern:

  STAGGERED

• PCB Contact Row Spacing:

  3.9878 mm

• Panel Mount:

  NO

• Polarization Key:

  POLARIZED

• Rated Current (Signal):

  8 A

• Reference Standard:

  UL

• Terminal Pitch:

  4 mm

• Termination Type:

  SOLDER

• Total Number of Contacts:

  23

• UL Flammability Code:

  94V-0
