Part Image

776228-4 - TE Connectivity

Description: Body Features: Connector & Keying Code 4 | Primary Product Color Gray | Configuration Features: PCB Mount Orientation Vertical | Number of Rows 3 | Number of Positions 23 | Contact Features: Contact Current Rating (Max) 8 AMP | Contact Mating Area Plating Material Tin | Contact Type Pin | Housing Features: Centerline (Pitch) 4 MM | Centerline (Pitch) .157 INCH | Industry Standards: UL Flammability Rating UL 94V-0 | Mechanical Attachment: PCB Mount Retention Without | PCB Mount Alignment With | Mating Alignm

Download 776228-4 Model
Schematic
symbols
Schematic symbol is unavailable for download
PCB
footprints
PCB footprint is unavailable for download
3D
models
3D model is unavailable for download
Send part feedback

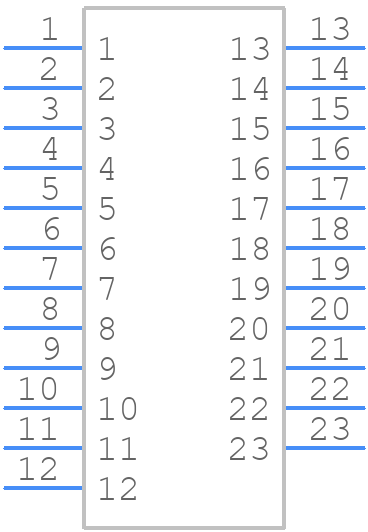

Symbol
776228-4 - TE Connectivity - PCB symbol
click to zoom

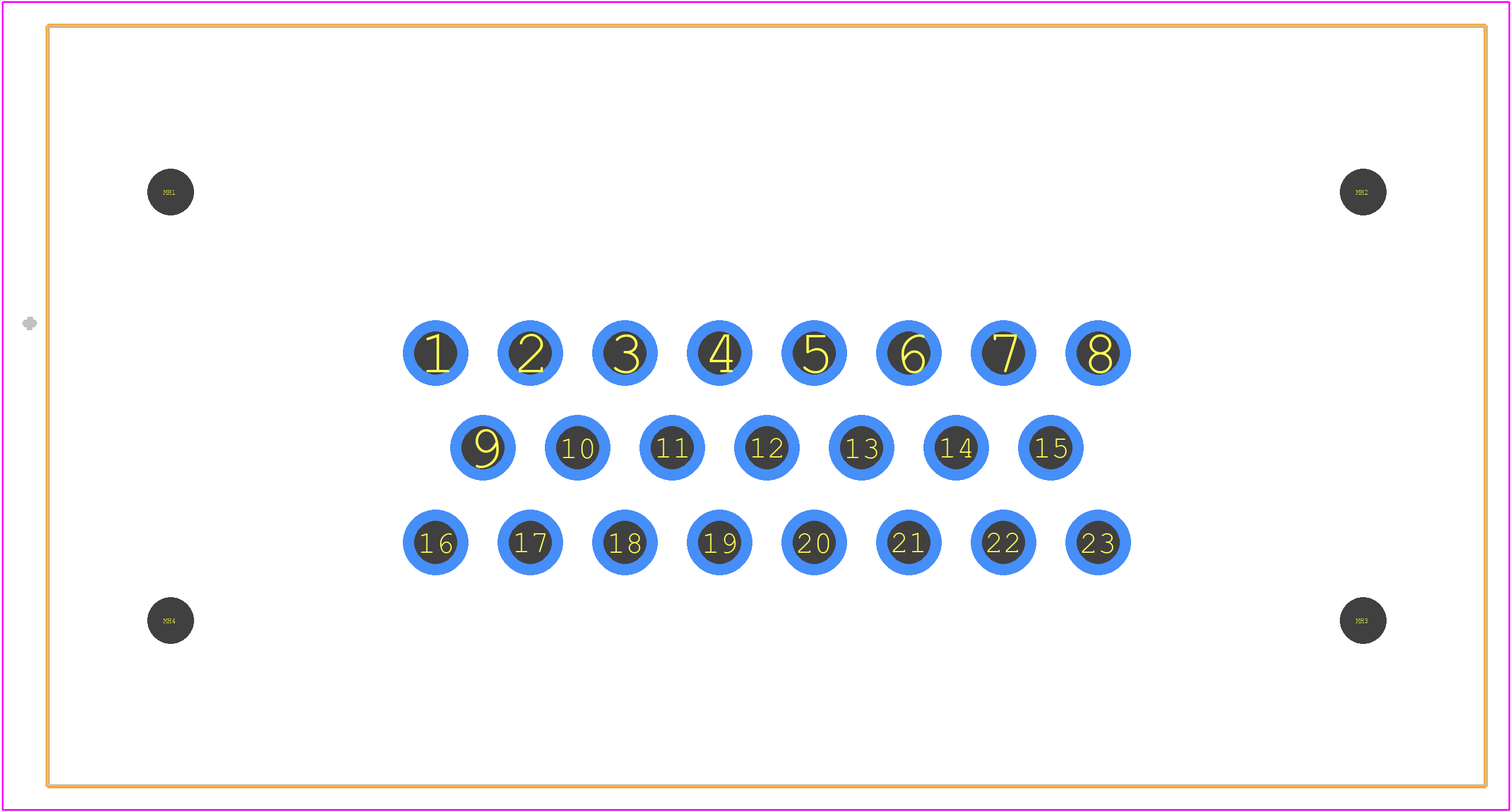

PCB Footprints
776228-4 - TE Connectivity PCB footprint - Other - Other - 776228-4-2
click to zoom
3D Models
776228-4 - TE Connectivity - 3D model - Other - 776228-4-2
click to zoom

776228-4 Details

  • Manufacturer Part Number:

    776228-4

  • Brand Name:

    AMP

  • Pbfree Code:

    Yes

  • Rohs Code:

    Yes

  • Part Life Cycle Code:

    Active

  • ECCN Code:

    EAR99

  • HTS Code:

    8536.69.40.30

  • Factory Lead Time:

    14 Weeks

  • Manufacturer:

    TE Connectivity

  • YTEOL:

    7.44

  • Additional Feature:

    POLARIZED

  • Body Breadth:

    1.264 inch

  • Body Length:

    2.394 inch

  • Connector Type:

    COMBINATION LINE CONNECTOR

  • Contact Finish Mating:

    NOT APPLICABLE

  • Contact Gender:

    MALE

  • Contact Material:

    NOT APPLICABLE

  • DIN Conformance:

    NO

  • EMI Shielded:

    NO

  • Empty Shell:

    YES

  • Filter Feature:

    NO

  • IEC Conformance:

    NO

  • Insulator Material:

    POLYETHYLENE

  • MIL Conformance:

    NO

  • Mains Connector Rating:

    8A

  • Mixed Contacts:

    NO

  • Mounting Style:

    STRAIGHT

  • Mounting Type:

    BOARD

  • Number of Ports:

    1

  • Number of Rows Loaded:

    3

  • Operating Temperature-Max:

    105 °C

  • Operating Temperature-Min:

    -40 °C

  • Option:

    GENERAL PURPOSE

  • Panel Mount:

    NO

  • Polarization Key:

    POLARIZED

  • Rated Current (Signal):

    8 A

  • Reference Standard:

    UL

  • Terminal Pitch:

    4 mm

  • Termination Type:

    SOLDER

  • Total Number of Contacts:

    23

  • UL Flammability Code:

    94V-0

776228-4 Frequently Asked Questions (FAQs)

  • The recommended torque value is 0.5-1.5 Nm (4.4-13.4 in-lbs) for the screws on the 776228-4 connector. However, it's essential to consult the specific application requirements and follow the recommended torque values to ensure proper assembly and prevent damage.
  • Yes, the 776228-4 connector is designed to withstand high-vibration environments. It features a ruggedized design and secure locking mechanism to ensure reliable connections even in harsh conditions. However, it's crucial to consult the datasheet and application notes for specific vibration testing and validation.
  • The 776228-4 connector is rated for operating temperatures between -40°C to 125°C (-40°F to 257°F). However, it's essential to consider the specific application requirements and potential thermal stresses. Consult the datasheet and application notes for guidance on high-temperature applications.
  • The 776228-4 connector has an IP67 rating, which means it provides protection against solid objects and water ingress. However, it's crucial to ensure proper sealing and assembly to maintain the IP rating in the application.
  • The 776228-4 connector is designed to withstand exposure to various chemicals, but it's essential to consult the datasheet and application notes for specific guidance on chemical resistance. Additionally, consider the connector's material composition and potential interactions with chemicals in the application.

Trust Checks

This model has been built in collaboration with the manufacturer.
Manufacturer Collaborated
This model has been verified by system checks.
System Verified
This model has been reviewed by community users.
Community Approved
Sponsored

776228-4 Overview

Use the download button to access the 776228-4 schematic symbol, PCB footprint, and 3D model.
To find more CAD model downloads similar to this part, try a partial part number search, like 77622, or try a keyword search, such as Combination Line Connectors
