Part Image

776230-1 - TE Connectivity

Description: Body Features: Connector & Keying Code 1 | Primary Product Color Black | Configuration Features: Number of Rows 3 | PCB Mount Orientation Vertical | Number of Positions 35 | Contact Features: Contact Current Rating (Max) 8 AMP | Contact Type Pin | Contact Mating Area Plating Material Tin | Housing Features: Centerline (Pitch) 4 MM | Centerline (Pitch) .157 INCH | Industry Standards: UL Flammability Rating UL 94V-0 | Mechanical Attachment: PCB Mount Retention Without | Connector Mounting Type Board Mount | P

Download 776230-1 Model
Schematic
symbols
Schematic symbol is unavailable for download
PCB
footprints
PCB footprint is unavailable for download
3D
models
3D model is unavailable for download
Send part feedback

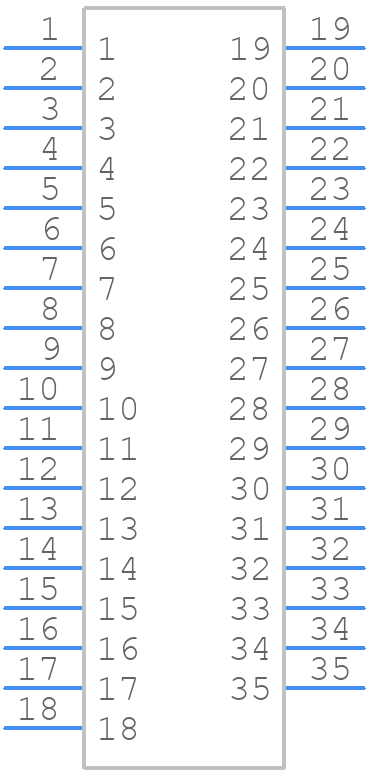

Symbol
776230-1 - TE Connectivity - PCB symbol
click to zoom

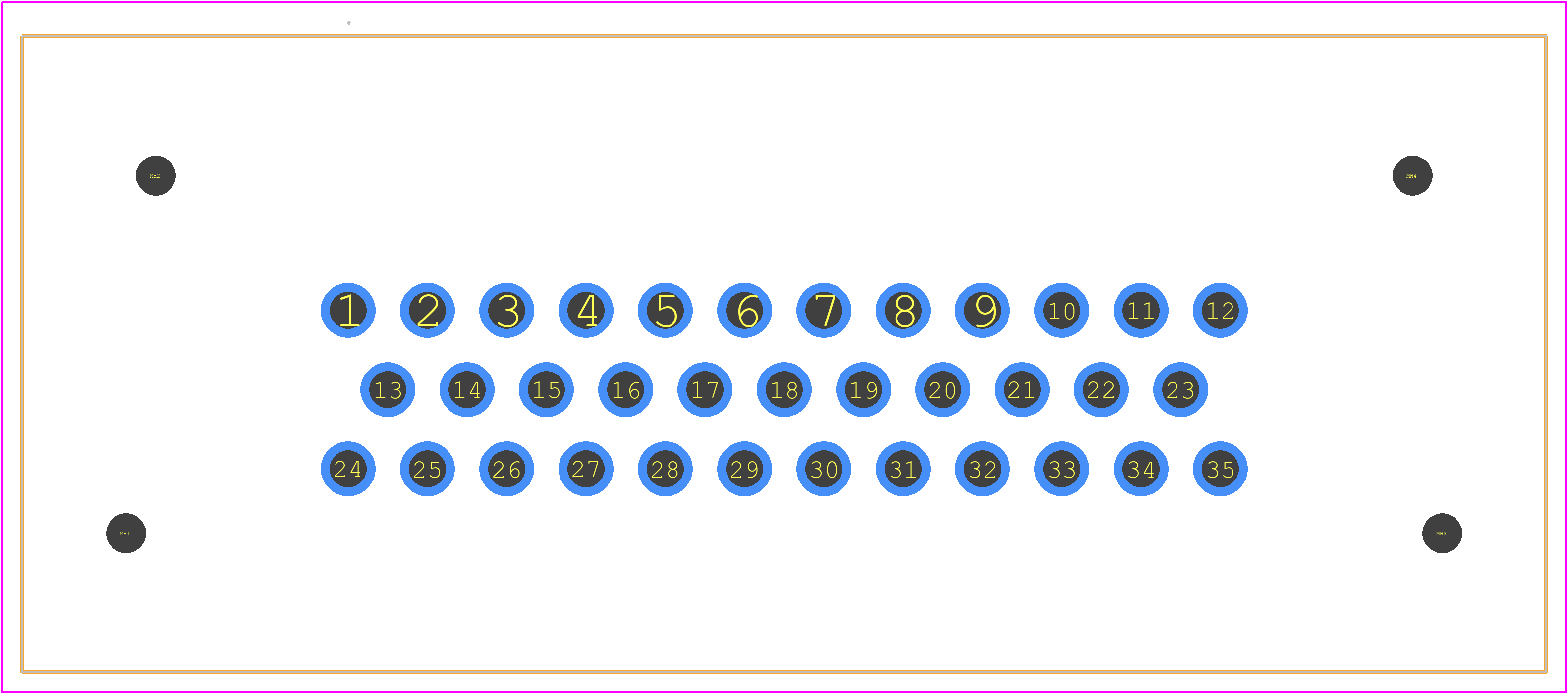

PCB Footprints
776230-1 - TE Connectivity PCB footprint - Other - Other - 776230-1-2
click to zoom
3D Models
776230-1 - TE Connectivity - 3D model - Other - 776230-1-2
click to zoom

776230-1 Details

  • Manufacturer Part Number:

    776230-1

  • Brand Name:

    AMP

  • Pbfree Code:

    Yes

  • Rohs Code:

    Yes

  • Part Life Cycle Code:

    Active

  • ECCN Code:

    EAR99

  • HTS Code:

    8536.69.40.30

  • Manufacturer:

    TE Connectivity

  • YTEOL:

    7.44

  • Additional Feature:

    POLARIZED

  • Body Breadth:

    1.264 inch

  • Body Length:

    3.03 inch

  • Connector Type:

    COMBINATION LINE CONNECTOR

  • Contact Finish Mating:

    NOT APPLICABLE

  • Contact Gender:

    MALE

  • Contact Material:

    NOT APPLICABLE

  • DIN Conformance:

    NO

  • EMI Shielded:

    NO

  • Empty Shell:

    YES

  • Filter Feature:

    NO

  • IEC Conformance:

    NO

  • Insulator Material:

    POLYBUTYLENE TEREPHTHALATE

  • MIL Conformance:

    NO

  • Mains Connector Rating:

    8A

  • Mixed Contacts:

    NO

  • Mounting Style:

    STRAIGHT

  • Mounting Type:

    BOARD

  • Number of Ports:

    1

  • Number of Rows Loaded:

    3

  • Operating Temperature-Max:

    105 °C

  • Operating Temperature-Min:

    -40 °C

  • Option:

    GENERAL PURPOSE

  • Panel Mount:

    NO

  • Polarization Key:

    POLARIZED

  • Rated Current (Signal):

    8 A

  • Reference Standard:

    UL

  • Terminal Pitch:

    4 mm

  • Termination Type:

    SOLDER

  • Total Number of Contacts:

    35

  • UL Flammability Code:

    94V-0

776230-1 Frequently Asked Questions (FAQs)

  • The recommended torque value is 0.5-0.7 Nm (5-7 in-lbs) for the screw terminals on the 776230-1 connector.
  • Yes, the 776230-1 connector is designed to withstand high-vibration environments, but it's recommended to follow TE Connectivity's guidelines for vibration testing and to ensure proper mounting and screw torque.
  • The 776230-1 connector has an operating temperature range of -40°C to 125°C (-40°F to 257°F), but it's recommended to derate the current carrying capacity at higher temperatures.
  • The 776230-1 connector has a IP67 rating, which means it can withstand temporary immersion in water up to 1 meter (3.3 feet) for 30 minutes. However, it's recommended to follow TE Connectivity's guidelines for environmental sealing and to ensure proper mounting and sealing.
  • The 776230-1 connector is designed for use with 20-24 AWG wire sizes, and it's recommended to use TE Connectivity's recommended wire types and sizes for optimal performance.

Trust Checks

This model has been built in collaboration with the manufacturer.
Manufacturer Collaborated
This model has been verified by system checks.
System Verified
This model has been reviewed by community users.
Community Approved
Sponsored

776230-1 Overview

Use the download button to access the 776230-1 schematic symbol, PCB footprint, and 3D model.
To find more CAD model downloads similar to this part, try a partial part number search, like 77623, or try a keyword search, such as Combination Line Connectors

About TE Connectivity

TE Connectivity, a global leader in connectivity and sensor solutions, designs and manufactures products that enable a more connected world. Serving a diverse range of industries, including automotive, industrial, medical, aerospace, and telecommunications, TE Connectivity offers a broad portfolio of products such as connectors, sensors, relays, and passive components. The company's innovations help improve the reliability and performance of electronic systems.
