776279-1 - TE Connectivity

Description: PCB Mount Header, Right Angle, Wire-to-Board, 8 Position, 4 mm [.157 in] Centerline, Fully Shrouded, Tin, Through Hole - Solder, Sealable, AMPSEAL

Download 776279-1 Model
Schematic
symbols
Schematic symbol is unavailable for download
PCB
footprints
PCB footprint is unavailable for download
3D
models
3D model is unavailable for download
Send part feedback
Symbol
776279-1 - TE Connectivity - PCB symbol
click to zoom
PCB Footprints

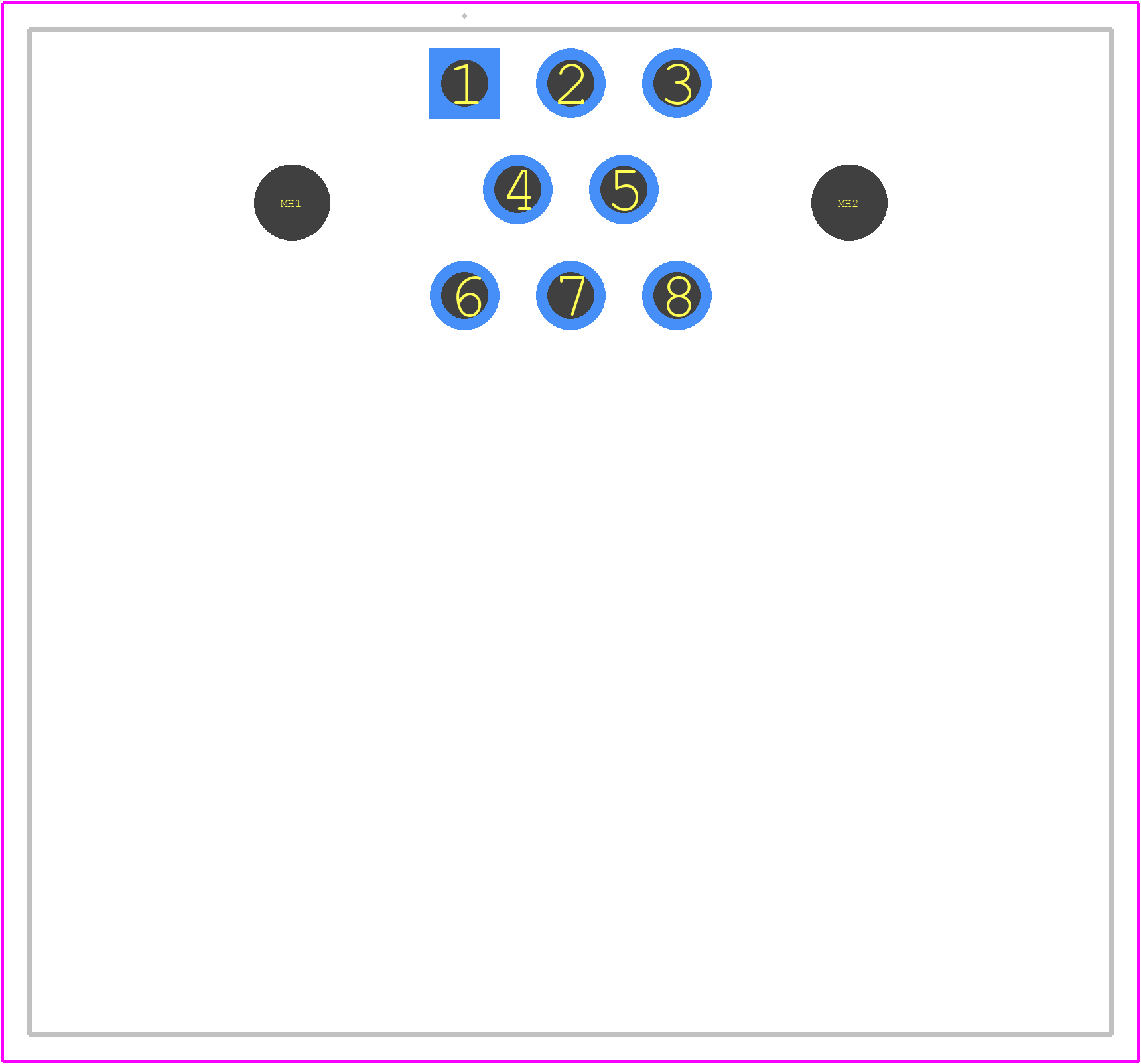

776279-1 - TE Connectivity PCB footprint - Other - Other - 776279-1-2
click to zoom
3D Models
776279-1 - TE Connectivity - 3D model - Other - 776279-1-2
click to zoom

776279-1 Details

  • Manufacturer Part Number:

    776279-1

  • Brand Name:

    TE Connectivity

  • Rohs Code:

    Yes

  • Part Life Cycle Code:

    Active

  • ECCN Code:

    EAR99

  • HTS Code:

    8536.69.40.30

  • Factory Lead Time:

    7 Weeks, 2 Days

  • Manufacturer:

    TE Connectivity

  • YTEOL:

    8

  • Connector Type:

    COMBINATION LINE CONNECTOR

  • Contact Finish Mating:

    NOT APPLICABLE

  • Contact Material:

    NOT APPLICABLE

  • DIN Conformance:

    NO

  • IEC Conformance:

    NO

  • MIL Conformance:

    NO

  • Option:

    GENERAL PURPOSE

776279-1 Frequently Asked Questions (FAQs)

  • The recommended torque value is 0.5-0.7 Nm (4.4-6.3 in-lbs) for the screw terminals on the 776279-1 connector.
  • Yes, the 776279-1 connector is designed to withstand vibrations and is suitable for use in high-vibration environments, such as in industrial or transportation applications.
  • The operating temperature range for the 776279-1 connector is -40°C to 125°C (-40°F to 257°F).
  • Yes, the 776279-1 connector is designed for automated assembly and can be easily integrated into high-volume manufacturing processes.
  • The 776279-1 connector has a mating cycle life of at least 500 cycles, ensuring reliable connections over an extended period.

Trust Checks

This model has been built in collaboration with the manufacturer.
Manufacturer Collaborated
This model has been verified by system checks.
System Verified
This model has been reviewed by community users.
Community Approved
Sponsored

776279-1 Overview

Use the download button to access the 776279-1 schematic symbol, PCB footprint, and 3D model.
To find more CAD model downloads similar to this part, try a partial part number search, like 77627, or try a keyword search, such as Combination Line Connectors
