- Datasheet Download Datasheet
- Stock & Prices $ Price & Stock for 7768
- Part Number 7768
- Manufacturer Keystone Electronics
- Pin Count 4
- Part Category Connector
- Package Category Other

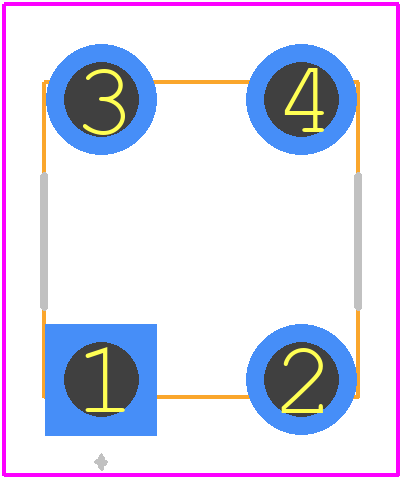

- Footprint Name Other - 7768-1
- Released Date Jan 1, 2022
- Last Modified Date Mar 7, 2023 4:10 PM UTC
- Pinout / Pin List Click Here (Member Only)
7768 Details
-
Manufacturer Part Number:
7768
-
Part Life Cycle Code:
Active
-
Country Of Origin:
USA
-
ECCN Code:
EAR99
-
HTS Code:
8536.90.40.00
-
Manufacturer:
Keystone Electronics Corp
-
YTEOL:
8
-
Terminal and Terminal Block Type:
POWER TERMINAL
7768 Frequently Asked Questions (FAQs)
-
The recommended torque for the screw terminals is 0.5-1.5 in-lbs (0.056-0.169 Nm). It's essential to follow this torque specification to ensure reliable connections and prevent damage to the terminals.
-
Yes, the 7768 is designed to withstand high-vibration environments. However, it's crucial to ensure that the screw terminals are securely tightened and the device is properly mounted to prevent damage or disconnection.
-
The operating temperature range for the 7768 is -40°C to 105°C (-40°F to 221°F). It's essential to ensure that the device operates within this temperature range to maintain its performance and reliability.
-
The 7768 is not designed for use in humid or wet environments. It's recommended to use the device in dry, clean environments to prevent corrosion or damage to the terminals and internal components.
-
The recommended wire size for the screw terminals is 18-24 AWG (0.8-1.3 mm²). Using wires within this size range ensures reliable connections and prevents damage to the terminals.
Trust Checks
Community Provided
System Verified
Community Approved
7768 Overview

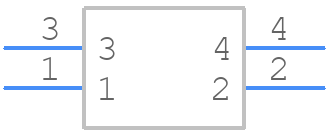

Use the download button to access the 7768 schematic symbol, PCB footprint, and 3D model.
To find more CAD model downloads similar to this part, try a partial part number search
or try a keyword search, such as Terminals and Terminal Blocks
