- Part Number 7775
- Manufacturer Keystone Electronics
- Pin Count 5
- Part Category Connector
- Package Category Other

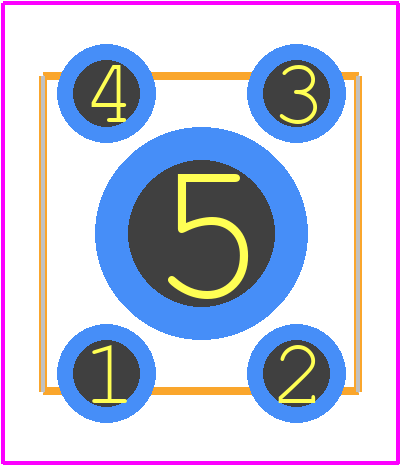

- Footprint Name Other - 7775-2
- Released Date Dec 31, 2018
- Last Modified Date Mar 7, 2023 4:10 PM UTC
- Pinout / Pin List Click Here (Member Only)
7775 Details
-
Manufacturer Part Number:
7775
-
Pbfree Code:
Yes
-
Rohs Code:
Yes
-
Part Life Cycle Code:
Active
-
Country Of Origin:
USA
-
ECCN Code:
EAR99
-
HTS Code:
8536.90.40.00
-
Manufacturer:
Keystone Electronics Corp
-
Terminal and Terminal Block Type:
POWER TERMINAL
7775 Frequently Asked Questions (FAQs)
-
The recommended torque for the screw terminals is 0.5-1.0 in-lbs (0.056-0.113 Nm) to ensure secure connections.
-
Yes, the 7775 is designed to withstand high-vibration environments. However, it's recommended to secure the device using the screw terminals and ensure proper mounting to prevent damage.
-
The operating temperature range for the 7775 is -40°C to 105°C (-40°F to 221°F). However, it's recommended to derate the device's performance at extreme temperatures.
-
The 7775 is not designed for use in humid or wet environments. It's recommended to use the device in dry, well-ventilated areas to prevent corrosion and ensure reliable operation.
-
The recommended wire size for the screw terminals is 20-24 AWG (0.5-0.25 mm²). Using larger or smaller wires may affect the device's performance and reliability.
