- Part Number 7781
- Manufacturer Keystone Electronics
- Pin Count 4
- Part Category Connector
- Package Category Other

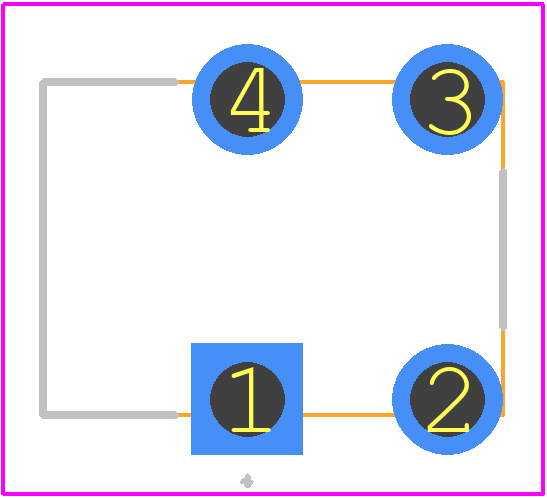

- Footprint Name Other - 7781-1
- Released Date Dec 12, 2021
- Last Modified Date Mar 7, 2023 4:10 PM UTC
- Pinout / Pin List Click Here (Member Only)
7781 Details
-
Manufacturer Part Number:
7781
-
Pbfree Code:
Yes
-
Rohs Code:
Yes
-
Part Life Cycle Code:
Active
-
Country Of Origin:
USA
-
ECCN Code:
EAR99
-
HTS Code:
8536.90.40.00
-
Manufacturer:
Keystone Electronics Corp
-
YTEOL:
6.75
-
Terminal and Terminal Block Type:
POWER TERMINAL
-
Wire Gauge:
14 AWG
7781 Frequently Asked Questions (FAQs)
-
The recommended torque for the screw terminals is 0.5-0.8 Nm (4.4-7.3 in-lbs).
-
Yes, the 7781 is designed to withstand high-vibration environments. However, it's recommended to secure the device using the screw terminals and ensure proper mounting to prevent damage.
-
The operating temperature range for the 7781 is -40°C to 105°C (-40°F to 221°F).
-
Yes, the 7781 is RoHS (Restriction of Hazardous Substances) and REACH (Registration, Evaluation, Authorization, and Restriction of Chemicals) compliant.
-
The 7781 is not designed for use in humid or wet environments. It's recommended to use the device in a dry, clean environment to ensure optimal performance and longevity.
Trust Checks
Community Provided
System Verified
Community Approved
7781 Overview
Use the download button to access the 7781 schematic symbol, PCB footprint, and 3D model.
