- Part Number 7786
- Manufacturer Keystone Electronics
- Pin Count 6
- Part Category Connector
- Package Category Other

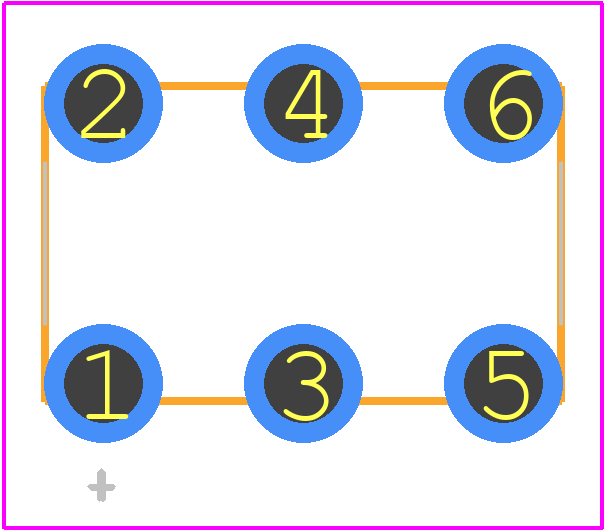

- Footprint Name Other - 7786-2
- Released Date Mar 25, 2019
- Last Modified Date Mar 7, 2023 4:10 PM UTC
- Pinout / Pin List Click Here (Member Only)
7786 Details
-
Manufacturer Part Number:
7786
-
Pbfree Code:
Yes
-
Rohs Code:
Yes
-
Part Life Cycle Code:
Active
-
Country Of Origin:
USA
-
ECCN Code:
EAR99
-
HTS Code:
8536.90.40.00
-
Manufacturer:
Keystone Electronics Corp
-
Terminal and Terminal Block Type:
POWER TERMINAL
7786 Frequently Asked Questions (FAQs)
-
The recommended torque for the screw terminals is 0.5-0.8 Nm (4-6 in-lbs).
-
Yes, the 7786 is designed to withstand vibrations up to 10G (10-2000 Hz) and can be used in high-vibration environments.
-
The operating temperature range for the 7786 is -40°C to 105°C (-40°F to 221°F).
-
Yes, the 7786 is RoHS (Restriction of Hazardous Substances) and REACH (Registration, Evaluation, Authorization, and Restriction of Chemicals) compliant.
-
The recommended wire size for the screw terminals is 24-18 AWG (0.25-1.5 mm²).
