7787 - Keystone Electronics

Description: 6 Pin Screw Terminal, Power Tap 10-32 Through Hole 30A Not Insulated Vertical

Download 7787 Model
Schematic
symbols
Schematic symbol is unavailable for download
PCB
footprints
PCB footprint is unavailable for download
3D
models
3D model is unavailable for download
Send part feedback
Symbol
7787 - Keystone Electronics - PCB symbol
click to zoom
PCB Footprints

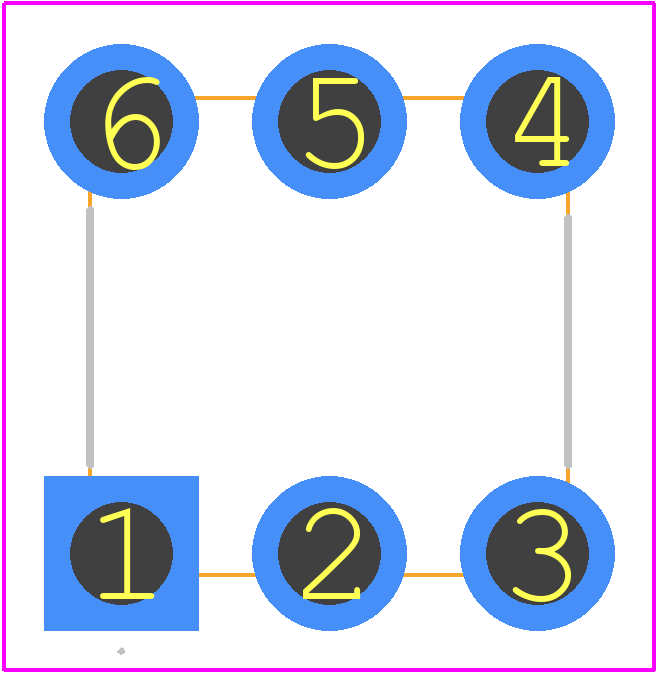

7787 - Keystone Electronics PCB footprint - Other - Other - 7787-3
click to zoom
3D Models
7787 - Keystone Electronics - 3D model - Other - 7787-3
click to zoom

7787 Details

  • Manufacturer Part Number:

    7787

  • Pbfree Code:

    Yes

  • Rohs Code:

    Yes

  • Part Life Cycle Code:

    Active

  • Country Of Origin:

    USA

  • ECCN Code:

    EAR99

  • HTS Code:

    8536.90.40.00

  • Manufacturer:

    Keystone Electronics Corp

  • Terminal and Terminal Block Type:

    POWER TERMINAL

7787 Frequently Asked Questions (FAQs)

  • The recommended torque for the screw terminals is 0.5-1.5 in-lbs (0.056-0.169 Nm).
  • Yes, the 7787 is designed to withstand high-vibration environments. However, it's recommended to secure the device using the screw terminals and ensure proper mounting to prevent damage.
  • The operating temperature range for the 7787 is -40°C to 105°C (-40°F to 221°F).
  • Yes, the 7787 is RoHS (Restriction of Hazardous Substances) and REACH (Registration, Evaluation, Authorization, and Restriction of Chemicals) compliant.
  • The recommended wire size for the screw terminals is 24-18 AWG (0.25-1.5 mm²).

Trust Checks

This model has been provided by community users.
Community Provided
This model has been verified by system checks.
System Verified
This model has been reviewed by community users.
Community Approved
Sponsored

7787 Overview

Use the download button to access the 7787 schematic symbol, PCB footprint, and 3D model.
To find more CAD model downloads similar to this part, try a partial part number search or try a keyword search, such as Terminals and Terminal Blocks
