7788 - Keystone Electronics

Description: KEYSTONE - 7788 - PCB Terminal, Brass, 1.85 mm, Tin

Download 7788 Model
Schematic
symbols
Schematic symbol is unavailable for download
PCB
footprints
PCB footprint is unavailable for download
3D
models
3D model is unavailable for download
Send part feedback
Symbol
7788 - Keystone Electronics - PCB symbol
click to zoom
PCB Footprints

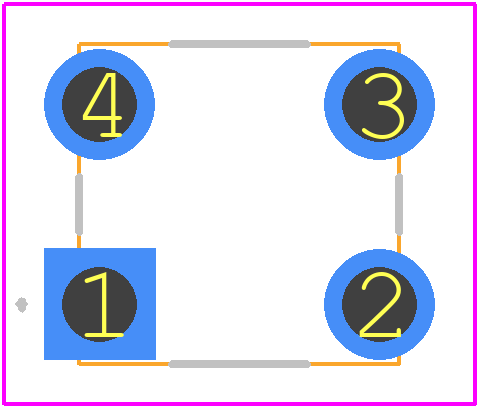

7788 - Keystone Electronics PCB footprint - Other - Other - 7788-3
click to zoom
3D Models
7788 - Keystone Electronics - 3D model - Other - 7788-3
click to zoom

7788 Details

  • Manufacturer Part Number:

    7788

  • Pbfree Code:

    Yes

  • Rohs Code:

    Yes

  • Part Life Cycle Code:

    Active

  • Country Of Origin:

    USA

  • ECCN Code:

    EAR99

  • HTS Code:

    8536.90.40.00

  • Manufacturer:

    Keystone Electronics Corp

  • YTEOL:

    8

  • Rated Current:

    15 A

  • Terminal and Terminal Block Type:

    POWER TERMINAL

  • Wire Cross Section:

    2.08 mm2

  • Wire Gauge:

    14 AWG

7788 Frequently Asked Questions (FAQs)

  • The recommended torque for the screw terminals is 0.5-0.8 Nm (4.4-7.3 in-lbs) to ensure secure connections.
  • Yes, the 7788 is designed to withstand high-vibration environments. However, it's recommended to secure the device using the screw terminals and ensure proper mounting to prevent damage.
  • The operating temperature range for the 7788 is -40°C to 105°C (-40°F to 221°F). However, it's recommended to derate the device's performance at extreme temperatures.
  • The 7788 is not designed for use in humid or wet environments. It's recommended to use the device in dry, well-ventilated areas to prevent moisture-related issues.
  • The recommended wire size for the screw terminals is 24-18 AWG (0.25-1.5 mm²). Using wires outside this range may affect the device's performance or reliability.

Trust Checks

This model has been provided by community users.
Community Provided
This model has been verified by system checks.
System Verified
This model has been reviewed by community users.
Community Approved
Sponsored

7788 Overview

Use the download button to access the 7788 schematic symbol, PCB footprint, and 3D model.
To find more CAD model downloads similar to this part, try a partial part number search or try a keyword search, such as Terminals and Terminal Blocks
