77SP36-01-1-10N footprint, schematic symbol and 3D model by Grayhill

Symbol

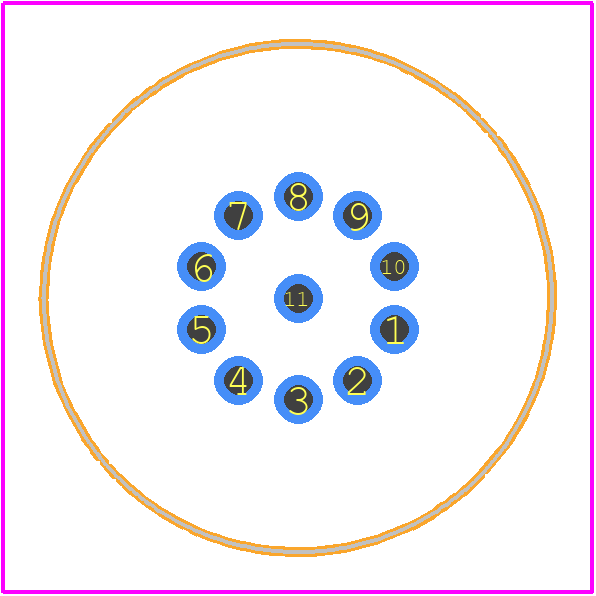

PCB Footprints

3D Models

77SP36-01-1-10N Details

The recommended torque for assembling the 77SP36-01-1-10N switch is 5-7 in-lbs (0.56-0.79 Nm) for the nut and 10-12 in-lbs (1.13-1.36 Nm) for the screw.
Yes, the 77SP36-01-1-10N switch is sealed to IP67 standards, protecting it from dust and water ingress.
The operating temperature range of the 77SP36-01-1-10N switch is -20°C to 85°C (-4°F to 185°F).
Yes, Grayhill Inc offers customization options for the 77SP36-01-1-10N switch, including different shaft lengths and terminations. Contact Grayhill Inc for more information.
Yes, the 77SP36-01-1-10N switch is compliant with RoHS (Restriction of Hazardous Substances) and REACH (Registration, Evaluation, Authorization, and Restriction of Chemicals) regulations.

Expert Contribution

System Verified

Community Approved

Use the download button to access the 77SP36-01-1-10N schematic symbol, PCB footprint, and 3D model.

To find more CAD model downloads similar to this part, try a partial part number search, like 77SP3, or try a keyword search, such as Rotary Switches
