- Datasheet Download Datasheet
- Stock & Prices $ Price & Stock for 78-5100-2476-9
- Part Number 78-5100-2476-9
- Manufacturer 3M
- Pin Count 81
- Part Category Connector
- Package Category Other

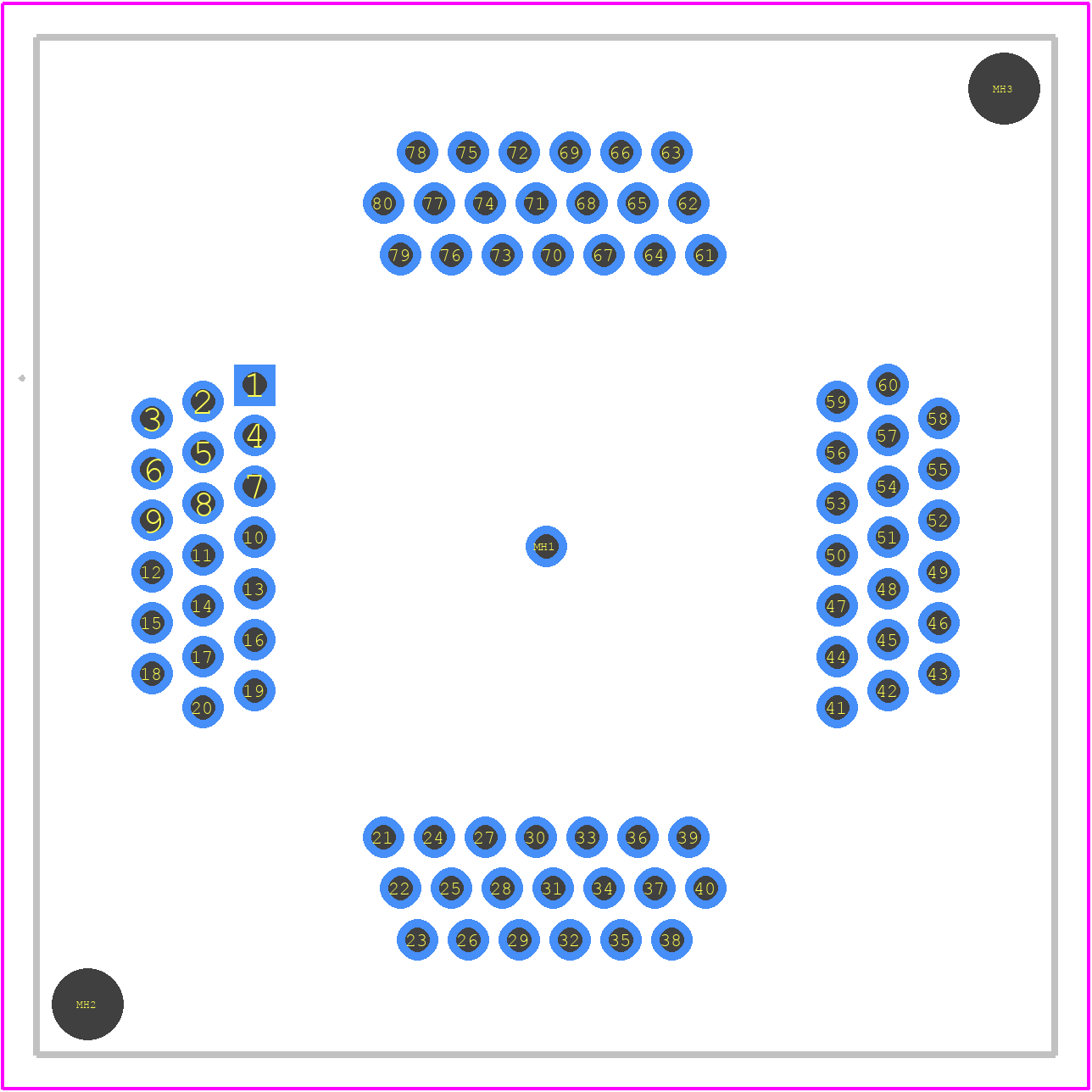

- Footprint Name Other - 78-5100-2476-9-2
- Released Date Nov 16, 2021
- Last Modified Date Mar 7, 2023 4:10 PM UTC
- Pinout / Pin List Click Here (Member Only)
78-5100-2476-9 Details
-
Manufacturer Part Number:
78-5100-2476-9
-
Part Life Cycle Code:
Active
-
ECCN Code:
EAR99
-
HTS Code:
8536.69.40.40
-
Manufacturer:
3M Interconnect
-
Device Socket Type:
IC SOCKET
Trust Checks
Community Provided
System Verified
Community Approved
78-5100-2476-9 Overview
Use the download button to access the 78-5100-2476-9 schematic symbol, PCB footprint, and 3D model.
To find more CAD model downloads similar to this part, try a partial part number search, like 78-51,
or try a keyword search, such as Sockets and Chip Carriers
