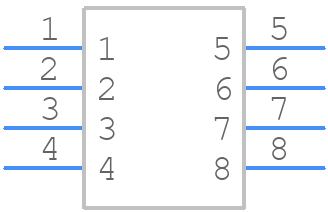

Symbol

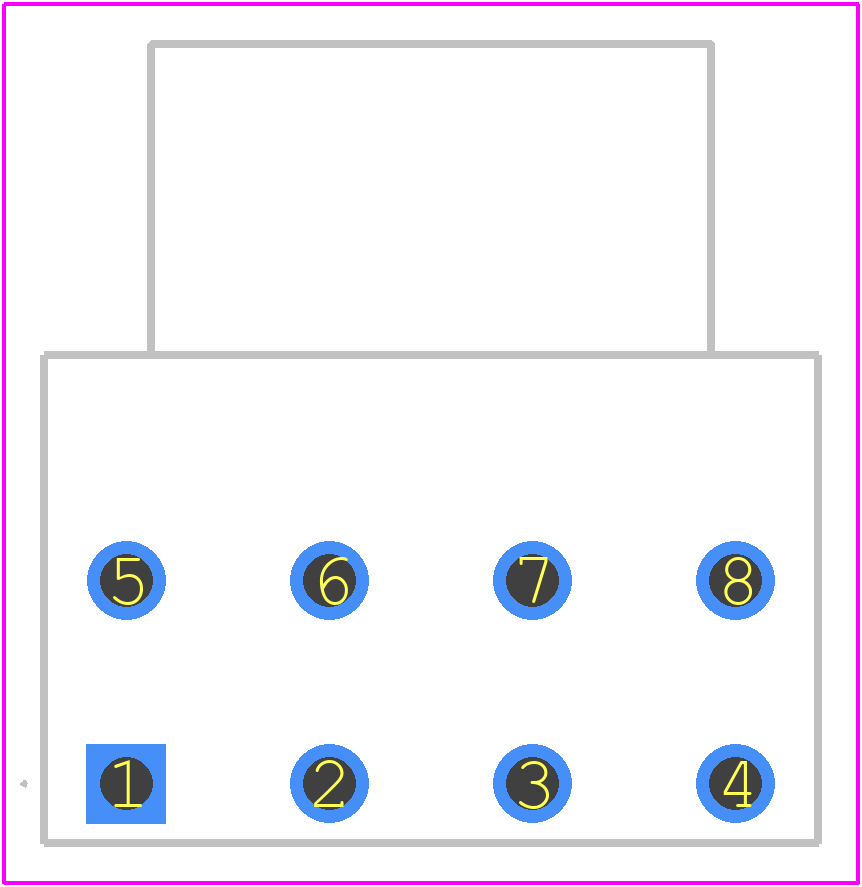

PCB Footprints
- Datasheet Download Datasheet
- Stock & Prices $ Price & Stock for 7804
- Part Number 7804
- Manufacturer Keystone Electronics
- Pin Count 8
- Part Category Connector
- Package Category Other
- Footprint Name Other - 7804-2
- Released Date Feb 8, 2022
- Last Modified Date Mar 7, 2023 4:10 PM UTC
- Pinout / Pin List Click Here (Member Only)
7804 Details
-
Manufacturer Part Number:
7804
-
Pbfree Code:
Yes
-
Rohs Code:
Yes
-
Part Life Cycle Code:
Active
-
Country Of Origin:
Italy
-
ECCN Code:
EAR99
-
Manufacturer:
Keystone Electronics Corp
-
Connector Type:
BOARD CONNECTOR
7804 Frequently Asked Questions (FAQs)
-
The 7804 can handle input voltages up to 35V, but it's recommended to keep it below 25V for reliable operation.
-
The 7804 can supply up to 1A of current, but it's recommended to keep the load current below 500mA for reliable operation.
-
The dropout voltage of the 7804 is around 2V, which means the input voltage must be at least 2V higher than the output voltage for proper regulation.
-
Yes, the 7804 has built-in short-circuit protection, which limits the output current to prevent damage in case of a short circuit.
-
The 7804 is rated for operation up to 125°C, but its performance may degrade at high temperatures. It's recommended to use a heat sink or ensure good airflow to keep the device cool.
Trust Checks
Community Provided
System Verified
Community Approved
7804 Overview
Use the download button to access the 7804 schematic symbol and PCB footprint.
To find more CAD model downloads similar to this part, try a partial part number search
or try a keyword search, such as Other Interconnects
