782482/33VC - Murata Electronics

Description: 1:1.33 Through Hole Telecom Transformer, 310μH, 600mΩ

Download 782482/33VC Model
Schematic
symbols
Schematic symbol is unavailable for download
PCB
footprints
PCB footprint is unavailable for download
3D
models
3D model is unavailable for download
Send part feedback
Symbol

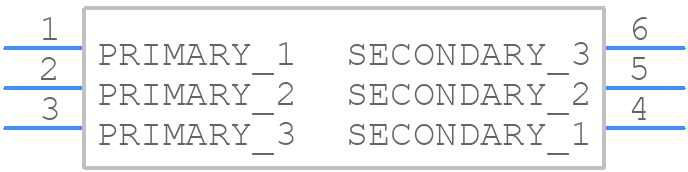

782482/33VC - Murata Electronics - PCB symbol
click to zoom
PCB Footprints
782482/33VC - Murata Electronics PCB footprint - Dual-In-Line Packages - Dual-In-Line Packages - 782482/33VC-1
click to zoom
3D Models
782482/33VC - Murata Electronics - 3D model - Dual-In-Line Packages - 782482/33VC-1
click to zoom

782482/33VC Details

  • Manufacturer Part Number:

    782482/33VC

  • Rohs Code:

    Yes

  • Part Life Cycle Code:

    Active

  • ECCN Code:

    EAR99

  • Factory Lead Time:

    13 Weeks

  • Manufacturer:

    Murata Manufacturing Co Ltd

  • YTEOL:

    7

  • Height:

    6.35 mm

  • Input Voltage-Nom:

    3.3 V

  • Length:

    9.77 mm

  • Mounting Feature:

    THROUGH HOLE MOUNT

  • Number of Primary Winding:

    1

  • Number of Secondary Winding:

    1

  • Operating Temperature-Max:

    85 °C

  • Operating Temperature-Min:

    -40 °C

  • Output Voltage 1:

    3.3 V

  • Packing Method:

    TUBE

  • Primary Inductance:

    190 µH

  • Surface Mount:

    NO

  • Transformer Type:

    SMPS TRANSFORMER

  • Width:

    9.14 mm
