78253/35JVC-R footprint, schematic symbol and 3D model by Murata Electronics

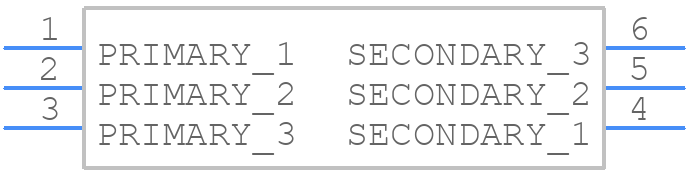

Symbol

click to zoom

PCB Footprints

78253/35JVC-R - Murata Electronics PCB footprint - Other - Other - 78253/35JVC-R-1

click to zoom

Datasheet Download Datasheet
Stock & Prices Price & Stock for 78253/35JVC-R
Part Number 78253/35JVC-R
Manufacturer Murata Electronics
Pin Count 6
Part Category Transformer
Package Category Other
Footprint Name Other - 78253/35JVC-R-1
Released Date May 23, 2024
Last Modified Date Jun 25, 2024 8:04 AM UTC
Pinout / Pin List Click Here (Member Only)

78253/35JVC-R Details

Manufacturer Part Number:
78253/35JVC-R
Rohs Code:
Yes
Part Life Cycle Code:
Active
Package Description:
CHIP
ECCN Code:
EAR99
Factory Lead Time:
13 Weeks
Manufacturer:
Murata Manufacturing Co Ltd
YTEOL:
7
Height:
6.35 mm
Input Voltage-Max:
3.3 V
JESD-609 Code:
e3
Length:
9.52 mm
Mounting Feature:
SURFACE MOUNT
Number of Primary Winding:
1
Number of Secondary Winding:
1
Operating Frequency-Max:
500 kHz
Operating Temperature-Max:
85 °C
Operating Temperature-Min:
-40 °C
Output Voltage 1:
5 V
Packing Method:
TR, 15 INCH
Power Rating:
0.5 W
Primary Inductance:
110 µH
Surface Mount:
YES
Terminal Finish:
MATTE TIN
Transformer Type:
SMPS TRANSFORMER
Width:
9 mm

78253/35JVC-R Frequently Asked Questions (FAQs)

Murata recommends a land pattern with a pad size of 2.5mm x 1.25mm, with a non-solder mask defined (NSMD) pad shape, and a minimum clearance of 0.5mm between the pad and the solder mask.
To ensure proper thermal management, it's recommended to provide a thermal relief pattern on the PCB, keep the component away from heat sources, and use a thermal interface material (TIM) with a thermal conductivity of at least 1 W/m-K.
The maximum operating temperature range for the 78253/35JVC-R is -40°C to +125°C, with a storage temperature range of -40°C to +150°C.
To ensure reliability in high-vibration environments, it's recommended to use a secure mounting method, such as soldering or adhesive bonding, and to follow Murata's recommended PCB design guidelines for vibration resistance.
Murata recommends a reflow soldering profile with a peak temperature of 260°C, a dwell time above 220°C of 30-60 seconds, and a cooling rate of 3-5°C/second.

Trust Checks

Community Provided

System Verified

Community Approved

78253/35JVC-R Overview

Use the download button to access the 78253/35JVC-R schematic symbol and PCB footprint.

To find more CAD model downloads similar to this part, try a partial part number search, like 78253, or try a keyword search, such as SMPS Transformers
