78253/35MVC footprint, schematic symbol and 3D model by Murata Electronics

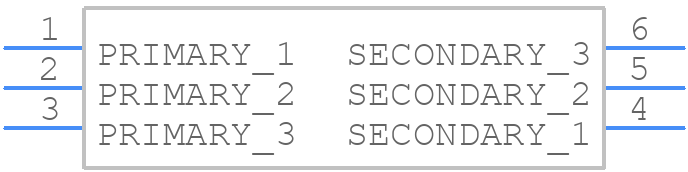

Symbol

click to zoom

PCB Footprints

78253/35MVC - Murata Electronics PCB footprint - Other - Other - 78253/35MVC-1

click to zoom

Datasheet Download Datasheet
Stock & Prices Price & Stock for 78253/35MVC
Part Number 78253/35MVC
Manufacturer Murata Electronics
Pin Count 6
Part Category Transformer
Package Category Other
Footprint Name Other - 78253/35MVC-1
Released Date Jul 28, 2023
Last Modified Date Jul 28, 2023 6:25 AM UTC
Pinout / Pin List Click Here (Member Only)

78253/35MVC Details

Manufacturer Part Number:
78253/35MVC
Rohs Code:
Yes
Part Life Cycle Code:
Not Recommended
Package Description:
CHIP
ECCN Code:
EAR99
Factory Lead Time:
8 Weeks
Manufacturer:
Murata Manufacturing Co Ltd
YTEOL:
3
Height:
6.35 mm
Input Voltage-Nom:
3.3 V
JESD-609 Code:
e3
Length:
9.52 mm
Mounting Feature:
SURFACE MOUNT
Number of Primary Winding:
1
Number of Secondary Winding:
1
Operating Frequency-Max:
500 kHz
Operating Temperature-Max:
85 °C
Operating Temperature-Min:
-40 °C
Output Voltage 1:
5 V
Packing Method:
TUBE
Power Rating:
0.5 W
Primary Inductance:
110 µH
Surface Mount:
YES
Terminal Finish:
Matte Tin (Sn)
Transformer Type:
SMPS TRANSFORMER
Width:
9 mm

78253/35MVC Frequently Asked Questions (FAQs)

Murata recommends a land pattern with a pad size of 2.5mm x 1.5mm, with a non-solder mask defined (NSMD) pad shape, and a minimum clearance of 0.5mm between pads.
Ensure good thermal design and heat dissipation by providing adequate airflow, using thermal vias, and keeping the component away from heat sources. Also, follow the recommended PCB layout and thermal management guidelines.
Murata recommends derating the voltage by 10-15% to ensure reliable operation and to prevent overheating. For example, if the rated voltage is 35V, the maximum recommended operating voltage would be around 29.75V to 31.5V.
Yes, the 78253/35MVC is designed to withstand vibrations up to 10G (10 times the acceleration due to gravity) in the frequency range of 10-2000 Hz. However, it's essential to follow proper mounting and soldering techniques to ensure the component remains securely attached to the PCB.
Store the 78253/35MVC in its original packaging or an equivalent ESD-protective package. Avoid exposing the component to moisture, extreme temperatures, or physical stress. During shipping, ensure the component is properly secured and protected from mechanical shock and vibration.

Trust Checks

Community Provided

System Verified

Community Approved

78253/35MVC Overview

Use the download button to access the 78253/35MVC schematic symbol and PCB footprint.

To find more CAD model downloads similar to this part, try a partial part number search, like 78253, or try a keyword search, such as SMPS Transformers
