The recommended land pattern for the 78253/55JC is a rectangular pad with a size of 2.5mm x 1.5mm, with a 0.5mm radius corner. The pad should be centered on the component and have a non-solder mask defined (NSMD) pad shape.
The 78253/55JC has a thermal resistance of 30°C/W. To ensure proper thermal management, it's recommended to provide a thermal pad on the PCB, and to use a thermal interface material (TIM) with a thermal conductivity of at least 1 W/m-K.
The 78253/55JC has an operating temperature range of -40°C to +125°C. However, it's recommended to derate the component's power handling capability at temperatures above 85°C to ensure reliable operation.
Yes, the 78253/55JC is designed to withstand high-vibration environments. However, it's recommended to follow Murata's guidelines for vibration testing and to ensure that the component is properly secured to the PCB using a suitable adhesive or mechanical fastening method.
To ensure the 78253/55JC meets the required EMC standards, it's recommended to follow Murata's guidelines for PCB layout, component placement, and shielding. Additionally, the component should be used in conjunction with other EMC-compliant components and design practices.
Trust Checks
This model has been provided by an expert contributor.
Expert Contribution
This model has been verified by system checks.
System Verified
This model has been reviewed by community users.
Community Approved
Sponsored
78253/55JC Overview

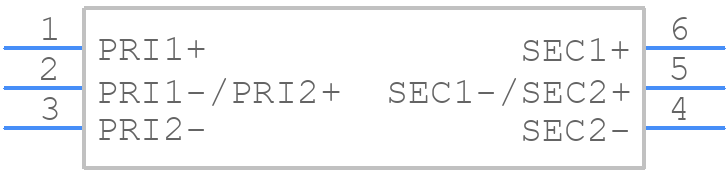

Use the download button to access the 78253/55JC schematic symbol and PCB footprint.
To find more CAD model downloads similar to this part, try a partial part number search, like 78253,
or try a keyword search, such as SMPS Transformers
About Murata Electronics
Murata Manufacturing Co., Ltd. is a Japanese multinational company that specializes in the design, manufacturing, and sale of electronic components and solutions.
Murata offers a wide range of electronic components and modules that are used in various industries and applications. Some of their key product categories include: capacitors, inductors, resistors, sensors, rf components and modules, and power devices.
