78253/55MC - Murata Electronics

Description: Transformer convert 1:1.31 1.5KV SMD 1:1.31 Surface Mount Telecom Transformer, 0.83mH, 1.5Ω

Download 78253/55MC Model
Schematic
symbols
Schematic symbol is unavailable for download
PCB
footprints
PCB footprint is unavailable for download
3D
models
3D model is unavailable for download
Send part feedback
Symbol

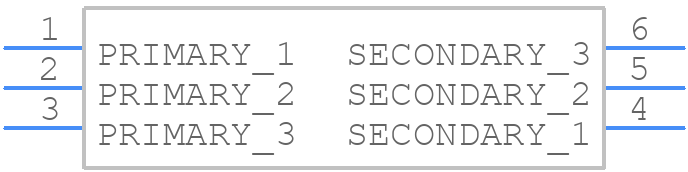

78253/55MC - Murata Electronics - PCB symbol
click to zoom
PCB Footprints
78253/55MC - Murata Electronics PCB footprint - Small Outline Packages - Small Outline Packages - 6-pin SM
click to zoom
3D Models
78253/55MC - Murata Electronics - 3D model - Small Outline Packages - 6-pin SM
click to zoom

78253/55MC Details

  • Manufacturer Part Number:

    78253/55MC

  • Rohs Code:

    Yes

  • Part Life Cycle Code:

    Not Recommended

  • Package Description:

    CHIP

  • ECCN Code:

    EAR99

  • Factory Lead Time:

    8 Weeks

  • Manufacturer:

    Murata Manufacturing Co Ltd

  • YTEOL:

    3

  • Height:

    6.35 mm

  • Input Voltage-Nom:

    5 V

  • JESD-609 Code:

    e3

  • Length:

    9.52 mm

  • Mounting Feature:

    SURFACE MOUNT

  • Number of Primary Winding:

    1

  • Number of Secondary Winding:

    1

  • Operating Frequency-Max:

    500 kHz

  • Operating Temperature-Max:

    85 °C

  • Operating Temperature-Min:

    -40 °C

  • Output Voltage 1:

    5 V

  • Packing Method:

    TUBE

  • Power Rating:

    1 W

  • Primary Inductance:

    600 µH

  • Surface Mount:

    YES

  • Terminal Finish:

    Matte Tin (Sn)

  • Transformer Type:

    SMPS TRANSFORMER

  • Width:

    9 mm

78253/55MC Frequently Asked Questions (FAQs)

  • The recommended land pattern for the 78253/55MC is a rectangular pad with a size of 2.5mm x 1.5mm, with a 0.5mm radius corner and a 0.3mm spacing between pads.
  • To handle thermal considerations, ensure a good thermal connection between the component and the PCB, use a thermal pad or a thermal via, and consider using a heat sink or a thermal interface material if necessary.
  • The maximum operating temperature range for the 78253/55MC is -40°C to +125°C, but it's recommended to operate within -20°C to +85°C for optimal performance and reliability.
  • Yes, the 78253/55MC is designed to withstand vibrations up to 10G, but it's recommended to follow proper mounting and soldering techniques to ensure reliability in high-vibration environments.
  • To ensure proper soldering, use a soldering iron with a temperature range of 250°C to 300°C, and apply a soldering flux to the component pads. Avoid overheating or applying excessive force during soldering.

Trust Checks

This model has been provided by an expert contributor.
Expert Contribution
This model has been verified by system checks.
System Verified
This model has been reviewed by community users.
Community Approved
Sponsored

78253/55MC Overview

Use the download button to access the 78253/55MC schematic symbol, PCB footprint, and 3D model.
To find more CAD model downloads similar to this part, try a partial part number search, like 78253, or try a keyword search, such as Pulse/Datacom Transformers

About Murata Electronics

Murata Manufacturing Co., Ltd. is a Japanese multinational company that specializes in the design, manufacturing, and sale of electronic components and solutions. Murata offers a wide range of electronic components and modules that are used in various industries and applications. Some of their key product categories include: capacitors, inductors, resistors, sensors, rf components and modules, and power devices.
