The recommended land pattern for the 78253/55VC can be found in the Murata Land Pattern document, which provides detailed information on the recommended pad layout and dimensions for optimal performance and reliability.
The 78253/55VC has a maximum operating temperature of 125°C. To ensure reliable operation, it's essential to provide adequate thermal management, such as using thermal vias, thermal pads, or heat sinks, to keep the component within its specified temperature range.
Murata recommends following the JEDEC J-STD-020D.1 standard for soldering the 78253/55VC. This standard outlines the recommended soldering temperature profiles and times to ensure reliable connections and minimize the risk of damage to the component.
While the 78253/55VC is designed to be robust, it's essential to consider the vibration specifications and ensure that the component is properly secured and mounted to withstand the expected vibration levels. Consult with Murata's application notes and vibration testing standards, such as IEC 60068-2-6, to ensure reliable operation.
To troubleshoot issues with the 78253/55VC, start by consulting the datasheet and application notes. Check for proper soldering, correct component orientation, and ensure that the component is operated within its specified parameters. If issues persist, contact Murata's technical support for further assistance.
Trust Checks
This model has been provided by community users.
Community Provided
This model has been verified by system checks.
System Verified
This model has been reviewed by community users.
Community Approved
Sponsored
78253/55VC Overview

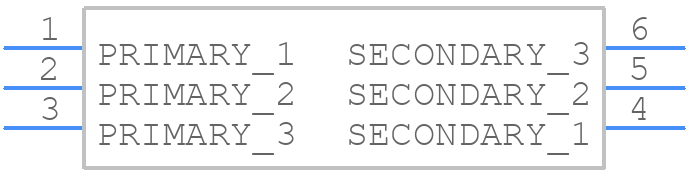

Use the download button to access the 78253/55VC schematic symbol, PCB footprint, and 3D model.
To find more CAD model downloads similar to this part, try a partial part number search, like 78253,
or try a keyword search, such as Pulse/Datacom Transformers
