7826-0006PR footprint, schematic symbol and 3D model by 3M

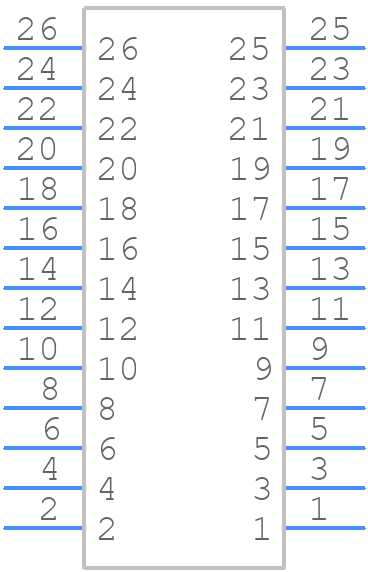

Symbol

click to zoom

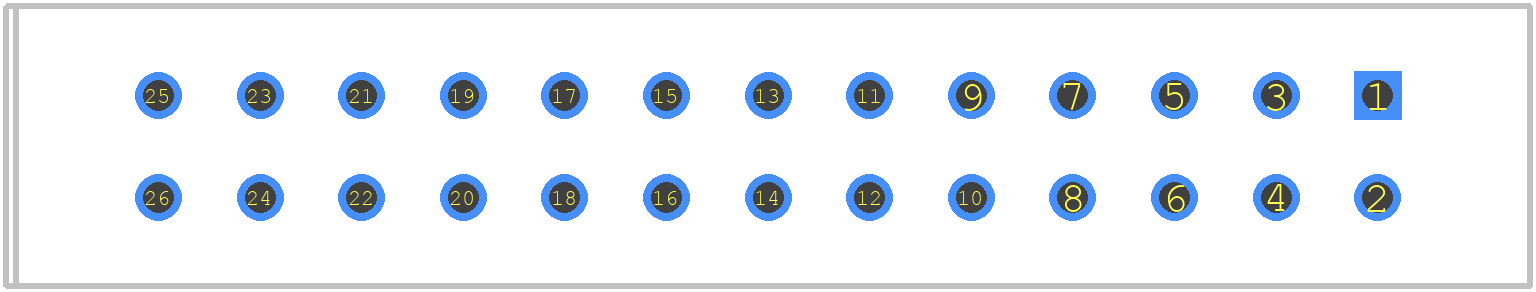

PCB Footprints

7826-0006PR - 3M PCB footprint - Other - Other - 3M_7826-0006PR

click to zoom

Datasheet Download Datasheet
Stock & Prices Price & Stock for 7826-0006PR
Part Number 7826-0006PR
Manufacturer 3M
Pin Count 26
Part Category Connector
Package Category Other
Footprint Name Other - 3M_7826-0006PR
Released Date Jan 10, 2017
Last Modified Date Nov 15, 2024 1:35 PM UTC
Pinout / Pin List Click Here (Member Only)

7826-0006PR Details

Manufacturer Part Number:
7826-0006PR
Pbfree Code:
Yes
Rohs Code:
Yes
Part Life Cycle Code:
Obsolete
Package Description:
ROHS COMPLIANT
ECCN Code:
EAR99
HTS Code:
8536.69.40.40
Manufacturer:
3M Interconnect
YTEOL:
0
Body Breadth:
0.276 inch
Body Depth:
0.252 inch
Body Length:
1.5 inch
Connector Type:
BOARD CONNECTOR
Contact Finish Mating:
NOT SPECIFIED
Contact Gender:
FEMALE
Contact Material:
BERYLLIUM COPPER
Contact Pattern:
RECTANGULAR
Contact Style:
IDC
DIN Conformance:
NO
Dielectric Withstanding Voltage:
100VAC V
Filter Feature:
NO
IEC Conformance:
NO
Insulation Resistance:
1000000000 Ω
Insulator Material:
GLASS FILLED POLYESTER
MIL Conformance:
NO
Mating Contact Pitch:
0.1 inch
Mating Contact Row Spacing:
0.1 inch
Mixed Contacts:
NO
Mounting Style:
STRAIGHT
Mounting Type:
BOARD
Number Of Connectors:
ONE
Number Of PCB Rows:
2
Number of Rows Loaded:
2
Operating Temperature-Max:
105 °C
Operating Temperature-Min:
-55 °C
Option:
GENERAL PURPOSE
PCB Contact Pattern:
RECTANGULAR
PCB Contact Row Spacing:
2.54 mm
Plating Thickness:
FLASH inch
Rated Current (Signal):
1 A
Reference Standard:
UL
Terminal Length:
0.15 inch
Terminal Pitch:
2.54 mm
Termination Type:
SOLDER
Total Number of Contacts:
26
UL Flammability Code:
94V-0

7826-0006PR Frequently Asked Questions (FAQs)

The recommended torque for the screw terminals is 0.5-1.5 Nm (4-12 in-lbs). It's essential to follow this torque specification to ensure reliable connections and prevent damage to the connector.
Yes, the 7826-0006PR connector is designed to withstand vibrations and can be used in applications with moderate to high vibration levels. However, it's essential to follow proper mounting and installation procedures to ensure the connector remains secure.
The 7826-0006PR connector has a plastic body and is rated for indoor use. While it can withstand some environmental stress, it's not recommended for outdoor or harsh environmental use. If you need a connector for outdoor use, consider a more ruggedized option with environmental sealing.
The 7826-0006PR connector is designed for use with 24 AWG wire. While it may be possible to use it with other wire sizes, it's not recommended as it may affect the connector's performance and reliability. If you need to use a different wire size, consult with 3M Interconnect or a qualified engineer.
The 7826-0006PR connector is designed for manual assembly, but it can be adapted for automated assembly processes with proper tooling and equipment. Consult with 3M Interconnect or a qualified engineer to determine the feasibility of automated assembly for your specific application.

Trust Checks

System Verified

7826-0006PR Overview

Use the download button to access the 7826-0006PR schematic symbol and PCB footprint.
