78758-0001 - Molex

Description: I/O Connectors U.2 Plg 68Ckt VrtSMT w/Frt Sldr Tab w/Cap

Download 78758-0001 Model
Schematic
symbols
Schematic symbol is unavailable for download
PCB
footprints
PCB footprint is unavailable for download
3D
models
3D model is unavailable for download
Send part feedback
Symbol
78758-0001 - Molex - PCB symbol
click to zoom
PCB Footprints

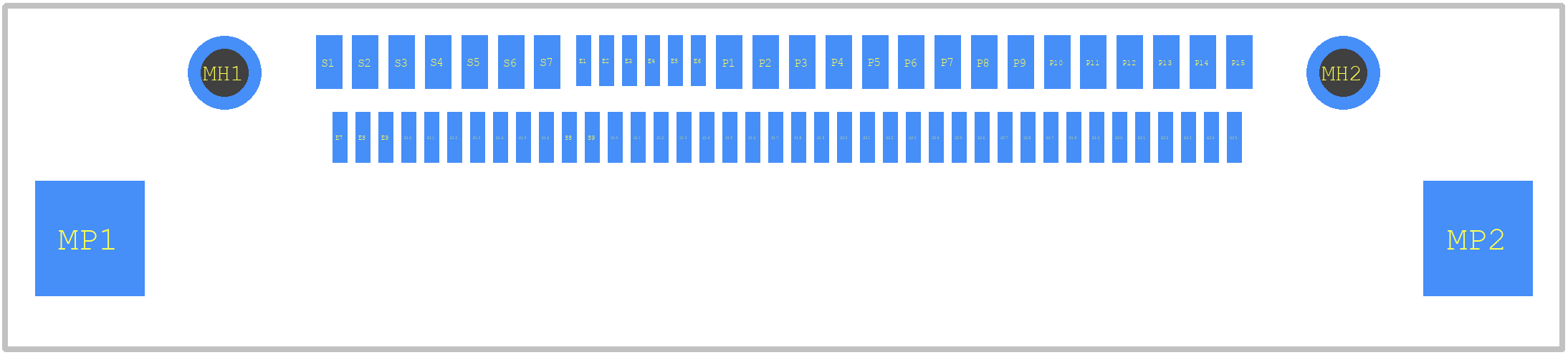

78758-0001 - Molex PCB footprint - Other - Other - 78758-0001
click to zoom
3D Models
78758-0001 - Molex - 3D model - Other - 78758-0001
click to zoom

78758-0001 Details

  • Manufacturer Part Number:

    78758-0001

  • Rohs Code:

    Yes

  • Part Life Cycle Code:

    Active

  • Reach Compliance Code:

    Compliant

  • Country Of Origin:

    Mainland China, USA

  • ECCN Code:

    EAR99

  • HTS Code:

    8536.69.40.30

  • Factory Lead Time:

    13 Weeks

  • Manufacturer:

    Molex

  • Body Breadth:

    0.199 inch

  • Body Depth:

    0.472 inch

  • Body Length:

    1.993 inch

  • Body/Shell Style:

    PLUG

  • Connector Type:

    SAS CONNECTOR

  • Contact Finish Mating:

    NOT SPECIFIED

  • Contact Finish Termination:

    Tin (Sn)

  • Contact Gender:

    MALE

  • Contact Material:

    NOT SPECIFIED

  • Contact Style:

    BLADE PIN-SKT

  • Insulator Color:

    BLACK

  • Insulator Material:

    GLASS FILLED LIQUID CRYSTAL POLYMER

  • JESD-609 Code:

    e3

  • Mating Contact Pitch:

    0.05 inch

  • Mounting Option 1:

    LOCKING

  • Mounting Style:

    RIGHT ANGLE

  • Mounting Type:

    BOARD

  • Number Of Connectors:

    ONE

  • Number Of PCB Rows:

    2

  • Number of Rows Loaded:

    2

  • Plating Thickness:

    30u inch

  • Reference Standard:

    UL

  • Terminal Pitch:

    1.27 mm

  • Termination Type:

    SURFACE MOUNT

  • Total Number of Contacts:

    22

78758-0001 Frequently Asked Questions (FAQs)

  • The recommended torque value is 0.5-0.7 Nm (4.4-6.3 in-lbs) for the screw terminals.
  • Yes, the 78758-0001 is designed to withstand vibrations and can be used in high-vibration applications, but it's recommended to follow Molex's guidelines for vibration testing and validation.
  • Yes, the 78758-0001 is designed for automated assembly and inspection systems, and Molex provides guidance on compatible equipment and processes.
  • The maximum operating temperature for the 78758-0001 is 125°C (257°F), but it's recommended to derate the temperature range based on the specific application and environmental conditions.
  • The 78758-0001 has a IP67 rating, making it suitable for use in harsh environments, but it's essential to follow Molex's guidelines for sealing and protection to ensure reliable performance.
