- Datasheet Download Datasheet
- Stock & Prices $ Price & Stock for 78758-0002
- Part Number 78758-0002
- Manufacturer Molex
- Pin Count 70
- Part Category Connector
- Package Category Other

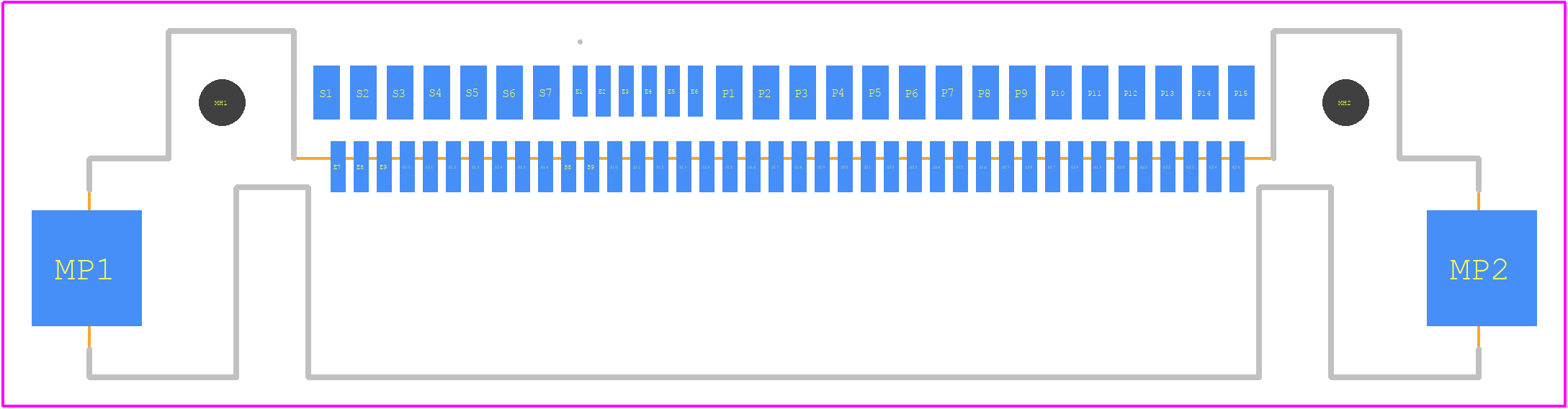

- Footprint Name Other - 78758-0002-4
- Released Date Jun 27, 2022
- Last Modified Date Mar 7, 2023 4:10 PM UTC
- Pinout / Pin List Click Here (Member Only)
78758-0002 Details
-
Manufacturer Part Number:
78758-0002
-
Rohs Code:
Yes
-
Part Life Cycle Code:
Active
-
Reach Compliance Code:
Compliant
-
Country Of Origin:
Mainland China
-
ECCN Code:
EAR99
-
HTS Code:
8536.69.40.30
-
Factory Lead Time:
13 Weeks
-
Manufacturer:
Molex
-
Body Breadth:
0.199 inch
-
Body Depth:
0.472 inch
78758-0002 Frequently Asked Questions (FAQs)
-
The recommended torque for the screw terminals is 0.5 Nm to 1.5 Nm (0.37 lb-in to 1.06 lb-in) to ensure secure connections.
-
Yes, the Molex 787580002 connector is designed to withstand high-vibration environments, making it suitable for use in industrial, automotive, and aerospace applications.
-
Yes, the 787580002 connector is designed for automated assembly and can be easily integrated into pick-and-place machines and other automated assembly systems.
-
The Molex 787580002 connector is rated for operation in temperatures ranging from -40°C to 125°C (-40°F to 257°F), making it suitable for use in a wide range of environments.
-
Yes, the 787580002 connector is designed to withstand harsh environments, including high humidity and exposure to certain chemicals. However, it's essential to consult the datasheet and Molex's application notes for specific guidance on environmental considerations.
Trust Checks
Community Provided
System Verified
Community Approved
78758-0002 Overview
Use the download button to access the 78758-0002 schematic symbol, PCB footprint, and 3D model.
To find more CAD model downloads similar to this part, try a partial part number search, like 78758,
or try a keyword search, such as Telecom and Datacom Connectors
