- Part Number 78798-0002
- Manufacturer Molex
- Pin Count 70
- Part Category Connector
- Package Category Other

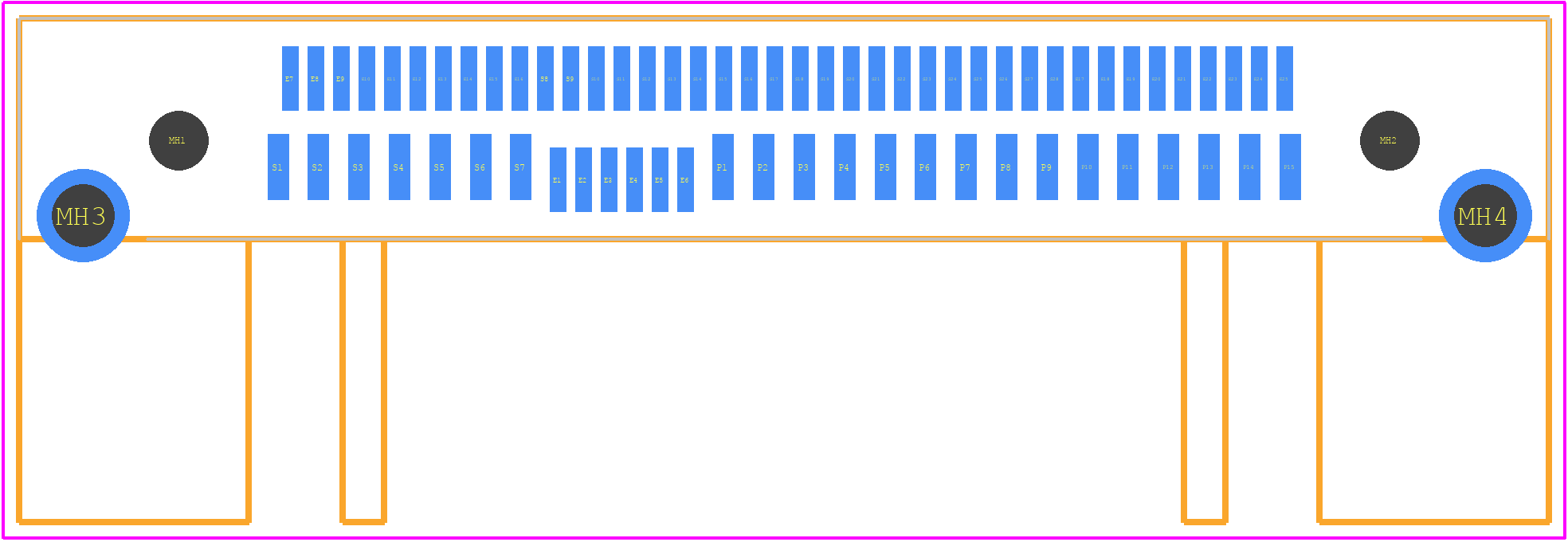

- Footprint Name Other - 78798-0002-3
- Released Date Feb 7, 2020
- Last Modified Date Mar 7, 2023 4:10 PM UTC
- Pinout / Pin List Click Here (Member Only)
78798-0002 Details
-
Manufacturer Part Number:
78798-0002
-
Rohs Code:
Yes
-
Part Life Cycle Code:
Active
-
Country Of Origin:
Mainland China
-
ECCN Code:
EAR99
-
HTS Code:
8536.69.40.30
-
Factory Lead Time:
13 Weeks
-
Manufacturer:
Molex
-
Body Breadth:
0.207 inch
-
Body Depth:
0.519 inch
-
Body Length:
1.633 inch
78798-0002 Frequently Asked Questions (FAQs)
-
The recommended torque specification for the screw terminals is 0.5-0.7 Nm (4.4-6.3 in-lbs).
-
Yes, the 78798-0002 connector is designed to withstand high-vibration environments, but it's recommended to follow Molex's guidelines for vibration testing and ensure proper mounting and securing of the connector.
-
The operating temperature range for the 78798-0002 connector is -40°C to 105°C (-40°F to 221°F).
-
While the connector is designed to be robust, it's recommended to consult Molex's environmental testing guidelines and ensure the connector is properly sealed and protected from harsh environments.
-
It's not recommended to use a different wire gauge than specified in the datasheet, as it may affect the connector's performance and reliability. However, if you must use a different gauge, consult Molex's application notes and perform thorough testing to ensure compatibility.
