78809-0001 - Molex

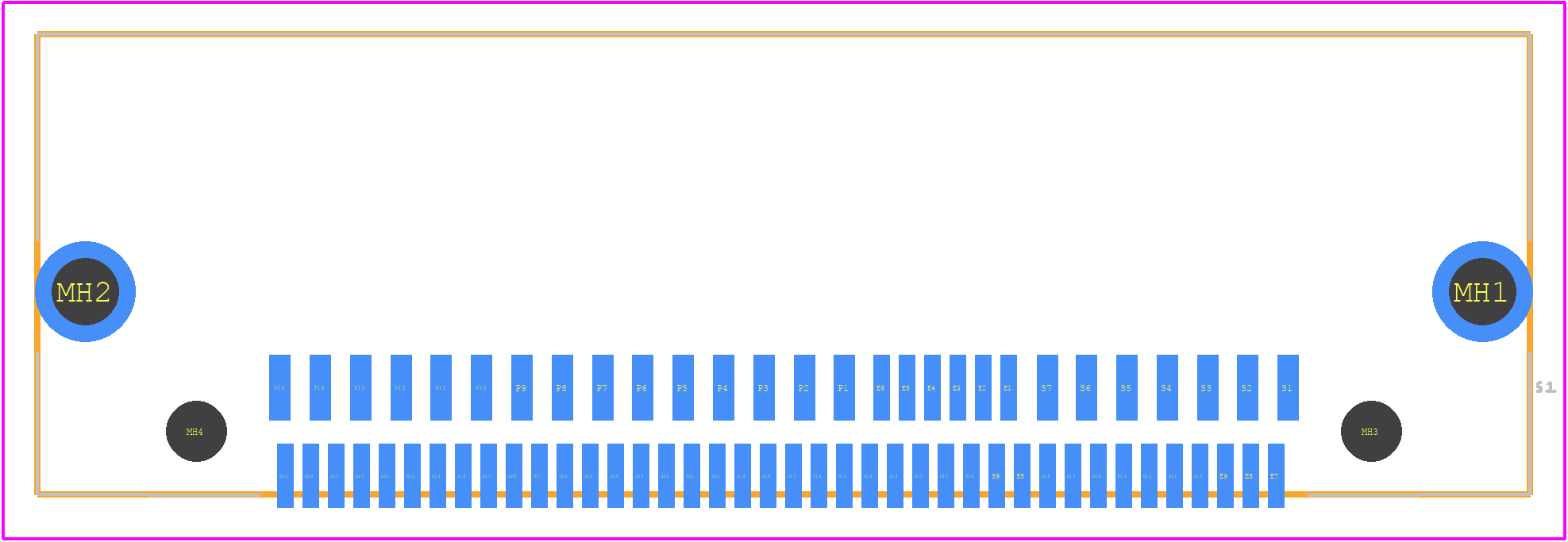

78809-0001 Details

• Manufacturer Part Number:

  78809-0001

• Rohs Code:

  Yes

• Part Life Cycle Code:

  Active

• Country Of Origin:

  Mainland China

• ECCN Code:

  EAR99

• HTS Code:

  8536.69.40.30

• Factory Lead Time:

  13 Weeks

• Manufacturer:

  Molex

• YTEOL:

  8

• Board Mounting Option:

  PEG

• Body Breadth:

  0.193 inch

• Body Depth:

  0.57 inch

• Body Length:

  1.592 inch

• Body/Shell Style:

  RECEPTACLE

• Connector Type:

  SAS CONNECTOR

• Contact Gender:

  FEMALE

• Contact Pattern:

  RECTANGULAR

• Contact Resistance:

  45 mΩ

• Contact Style:

  SAS CONNECTOR

• Dielectric Withstanding Voltage:

  500VAC V

• Durability:

  500 Cycles

• Empty Shell:

  NO

• Filter Feature:

  NO

• Insulation Resistance:

  1000000000 Ω

• Insulator Color:

  BLACK

• Insulator Material:

  GLASS FILLED LIQUID CRYSTAL POLYMER

• Mating Information:

  MULTIPLE MATING PARTS AVAILBLE

• Mixed Contacts:

  YES

• Mounting Option 1:

  LOCKING

• Mounting Style:

  RIGHT ANGLE

• Mounting Type:

  BOARD

• Number Of PCB Rows:

  2

• Number of Ports:

  1

• Number of Rows Loaded:

  2

• Operating Temperature-Max:

  55 °C

• Option:

  GENERAL PURPOSE

• PCB Contact Pattern:

  RECTANGULAR

• PCB Contact Row Spacing:

  2.78 mm

• Plating Thickness:

  30u inch

• Polarization Key:

  POLARIZED HOUSING

• Rated Current (Signal):

  1.5 A

• Reference Standard:

  CSA; UL

• Terminal Pitch:

  0.8 mm

• Termination Type:

  SURFACE MOUNT

• Total Number of Contacts:

  68

• UL Flammability Code:

  94V-0
