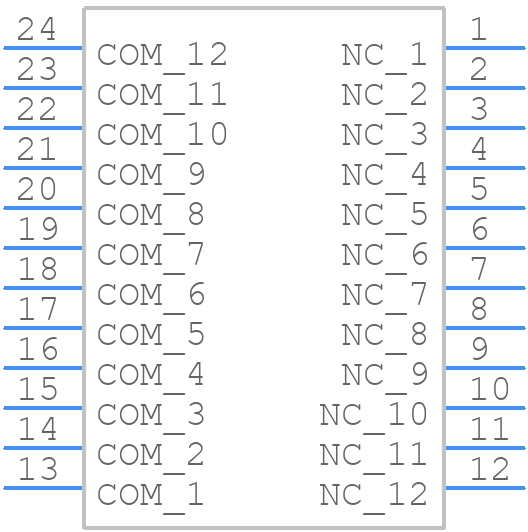

78B12ST footprint, schematic symbol and 3D model by Grayhill

Symbol

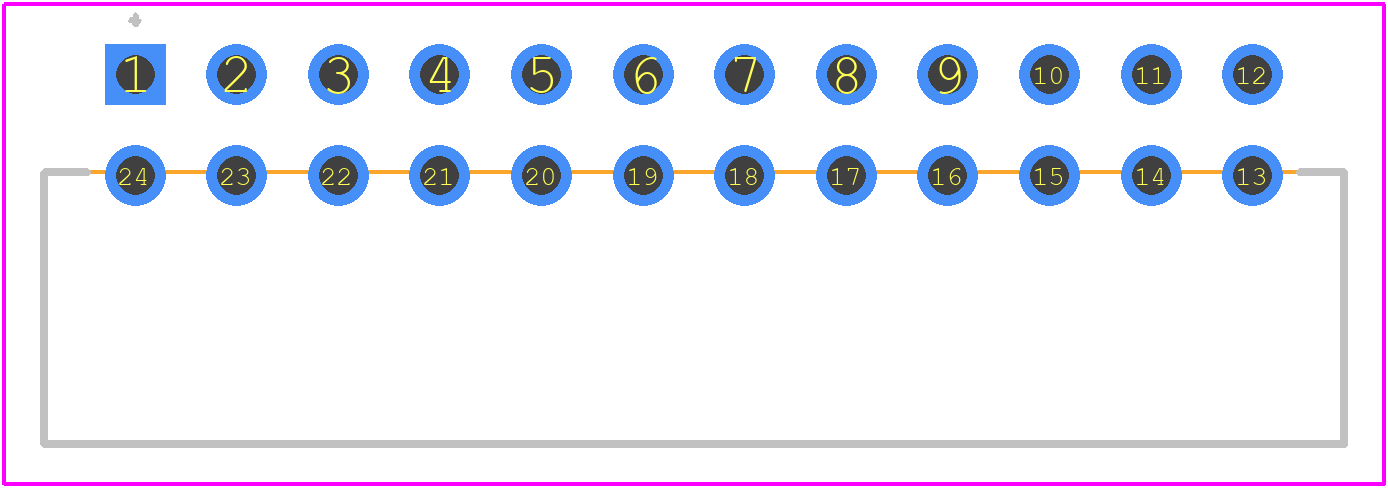

PCB Footprints

3D Models

78B12ST Details

The recommended torque is 10-15 in-lbs (1.1-1.7 Nm) to ensure proper seating and prevent damage to the switch.
Yes, the 78B12ST is designed to withstand vibrations up to 10 G's, making it suitable for use in applications with moderate to high vibration levels.
Use a soft-bristled brush to gently remove any debris, and then wipe the switch with a dry, lint-free cloth. Avoid using chemicals or liquids, as they may damage the switch's components.
The 78B12ST is rated for operation in temperatures ranging from -20°C to 85°C (-4°F to 185°F).
While the switch is not fully waterproof, it is designed to withstand some moisture. However, it's recommended to use a conformal coating or sealant to protect the switch in humid or wet environments.

Community Provided

System Verified

Community Approved

Use the download button to access the 78B12ST schematic symbol, PCB footprint, and 3D model.

To find more CAD model downloads similar to this part, try a partial part number search, like 78B12, or try a keyword search, such as DIP Switches
