78H01T - Grayhill

Description: Switch DIP OFF ON 4PST 1 Raised Slide 0.15A 30VDC PC Pins 2000Cycles 2.54mm Thru-Hole Tube

Download 78H01T Model
Schematic
symbols
Schematic symbol is unavailable for download
PCB
footprints
PCB footprint is unavailable for download
3D
models
3D model is unavailable for download
Send part feedback
Symbol

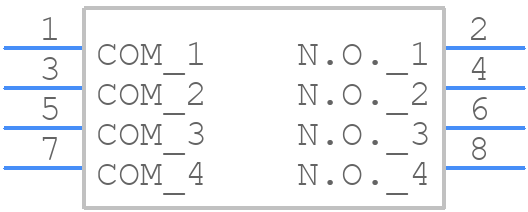

78H01T - Grayhill - PCB symbol
click to zoom
PCB Footprints
78H01T - Grayhill PCB footprint - Other - Other - 78H01T-3
click to zoom
3D Models
78H01T - Grayhill - 3D model - Other - 78H01T-3
click to zoom

78H01T Details

  • Manufacturer Part Number:

    78H01T

  • Pbfree Code:

    Yes

  • Rohs Code:

    Yes

  • Part Life Cycle Code:

    Active

  • Country Of Origin:

    Mainland China

  • ECCN Code:

    EAR99

  • HTS Code:

    8536.50.90.65

  • Factory Lead Time:

    18 Weeks

  • Manufacturer:

    Grayhill Inc

  • YTEOL:

    6.8

  • Body Breadth:

    9.65 mm

  • Body Height:

    6.73 mm

  • Body Length or Diameter:

    12.2 mm

  • Contact Current(DC)-Max:

    0.15 A

  • Contact (DC) Max Rating R Load:

    .15A@30VDC

  • Contact Voltage(DC)-Max:

    30 V

  • Electrical Life:

    2000 Cycle(s)

  • JESD-609 Code:

    e3

  • Mounting Feature:

    THROUGH HOLE-STRAIGHT

  • Number of Switch Sections:

    1

  • Operating Temperature-Max:

    85 °C

  • Operating Temperature-Min:

    -40 °C

  • PCB Hole Count:

    2

  • Packing Method:

    TUBE

  • Surface Mount:

    NO

  • Switch Action:

    LATCHED

  • Switch Function:

    SPST

  • Switch Type:

    SLIDE DIP SWITCH

  • Terminal Finish:

    MATTE TIN OVER NICKEL

  • Termination Type:

    SOLDER

78H01T Frequently Asked Questions (FAQs)

  • The recommended torque for the 78H01T rotary switch is 0.5-1.5 in-lbs (0.056-0.169 Nm).
  • Yes, the 78H01T is designed to withstand high-vibration environments. However, it's recommended to consult with Grayhill's application engineers to ensure the switch meets the specific vibration requirements of your application.
  • The operating temperature range for the 78H01T is -40°C to 85°C (-40°F to 185°F).
  • The 78H01T is designed to be resistant to harsh environments, including high humidity and exposure to certain chemicals. However, it's recommended to consult with Grayhill's application engineers to ensure the switch meets the specific environmental requirements of your application.
  • Yes, Grayhill offers customization options for the 78H01T, including custom legends, shaft lengths, and more. Contact Grayhill's sales team to discuss your specific requirements.

Trust Checks

This model has been provided by an expert contributor.
Expert Contribution
This model has been verified by system checks.
System Verified
This model has been reviewed by community users.
Community Approved
Sponsored

78H01T Overview

Use the download button to access the 78H01T schematic symbol, PCB footprint, and 3D model.
