The recommended torque for assembling the 78HJ02GWT switch is 0.5-1.5 N·m (4.4-13.3 in·lb). It's essential to follow this torque specification to ensure proper assembly and prevent damage to the switch.
Yes, the 78HJ02GWT switch is designed to withstand high-vibration environments. It meets the IEC 60068-2-6 vibration test standard, which ensures reliable operation in applications with intense vibrations.
The 78HJ02GWT switch is designed to operate in a wide range of temperatures (-40°C to 85°C) and humidity levels (up to 95% RH). However, it's essential to follow the recommended storage and operating conditions to ensure optimal performance and longevity.
Yes, Grayhill Inc offers customization options for the 78HJ02GWT switch. You can request a specific shaft length, termination type, or other modifications to meet your application's requirements. Contact Grayhill's sales team or authorized distributors for more information.
The 78HJ02GWT switch is designed to provide a long lifespan, with a minimum of 10,000 cycles (mechanical life) and 100,000 operations (electrical life). However, the actual lifespan may vary depending on the application, operating conditions, and maintenance.
Trust Checks
This model has been provided by community users.
Community Provided
This model has been verified by system checks.
System Verified
This model has been reviewed by community users.
Community Approved
Sponsored
78HJ02GWT Overview

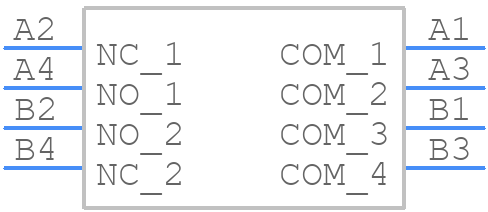

Use the download button to access the 78HJ02GWT schematic symbol, PCB footprint, and 3D model.
To find more CAD model downloads similar to this part, try a partial part number search, like 78HJ0,
or try a keyword search, such as DIP Switches
