78J03ST - Grayhill

Description: 3 Position SPDT DIP Switch 3 Way Through Hole DIP Switch SPDT

Download 78J03ST Model
Schematic
symbols
Schematic symbol is unavailable for download
PCB
footprints
PCB footprint is unavailable for download
3D
models
3D model is unavailable for download
Send part feedback
Symbol
78J03ST - Grayhill - PCB symbol
click to zoom
PCB Footprints

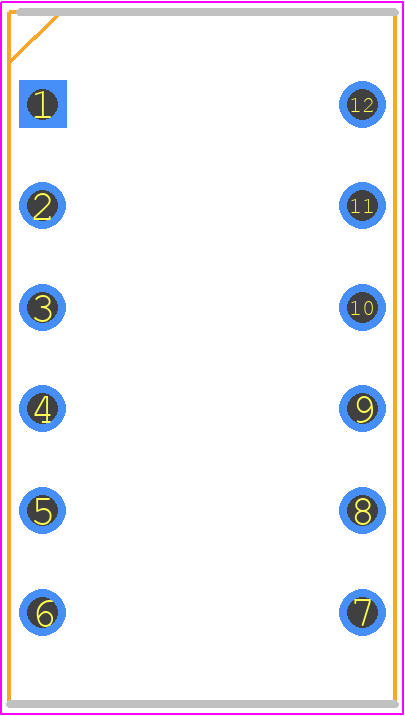

78J03ST - Grayhill PCB footprint - Dual-In-Line Packages - Dual-In-Line Packages - 78J Dip Switch
click to zoom
3D Models
78J03ST - Grayhill - 3D model - Dual-In-Line Packages - 78J Dip Switch
click to zoom

78J03ST Details

  • Manufacturer Part Number:

    78J03ST

  • Pbfree Code:

    Yes

  • Rohs Code:

    Yes

  • Part Life Cycle Code:

    Active

  • Package Description:

    ROHS COMPLIANT

  • Country Of Origin:

    Mainland China

  • ECCN Code:

    EAR99

  • HTS Code:

    8536.50.90.65

  • Factory Lead Time:

    18 Weeks

  • Manufacturer:

    Grayhill Inc

  • YTEOL:

    6.6

  • Body Breadth:

    9.65 mm

  • Body Height:

    6.22 mm

  • Body Length or Diameter:

    17.3 mm

  • Contact Current(DC)-Max:

    0.15 A

  • Contact (DC) Max Rating R Load:

    .15A@30VDC

  • Contact Voltage(DC)-Max:

    30 V

  • Electrical Life:

    2000 Cycle(s)

  • JESD-609 Code:

    e3

  • Mounting Feature:

    THROUGH HOLE-STRAIGHT

  • Number of Switch Sections:

    3

  • Operating Temperature-Max:

    85 °C

  • Operating Temperature-Min:

    -40 °C

  • PCB Hole Count:

    6

  • Packing Method:

    TUBE

  • Sealing:

    TOP TAPE SEALED

  • Surface Mount:

    NO

  • Switch Action:

    LATCHED

  • Switch Function:

    SPDT

  • Switch Type:

    SLIDE DIP SWITCH

  • Terminal Finish:

    MATTE TIN OVER NICKEL

  • Termination Type:

    SOLDER

78J03ST Frequently Asked Questions (FAQs)

  • The recommended torque for mounting the 78J03ST switch is 5-7 in-lbs (0.56-0.79 Nm) to ensure proper installation and prevent damage.
  • Yes, the 78J03ST switch is designed to withstand high-vibration environments. It meets the IEC 60068-2-6 vibration test standard, which ensures reliable operation in applications with vibration.
  • Yes, the 78J03ST switch has a sealed construction that meets the IP67 rating, which means it is protected against dust and can withstand immersion in water up to 1 meter for 30 minutes.
  • The 78J03ST switch operates within a temperature range of -20°C to 85°C (-4°F to 185°F), making it suitable for a wide range of applications.
  • Yes, Grayhill Inc offers customization options for the 78J03ST switch, including different shaft and bushing configurations. Contact their sales team for more information.

Trust Checks

This model has been provided by an expert contributor.
Expert Contribution
This model has been verified by system checks.
System Verified
This model has been reviewed by community users.
Community Approved
Sponsored

78J03ST Overview

Use the download button to access the 78J03ST schematic symbol, PCB footprint, and 3D model.
To find more CAD model downloads similar to this part, try a partial part number search, like 78J03, or try a keyword search, such as DIP Switches
