78J04ST - Grayhill

Description: Switch DIP N.O./N.C. SPDT 4 Raised Slide 0.15A 30VDC PC Pins 2000Cycles/SwitchCycles 2.54mm Thru-Hole Tube

Download 78J04ST Model
Schematic
symbols
Schematic symbol is unavailable for download
PCB
footprints
PCB footprint is unavailable for download
3D
models
3D model is unavailable for download
Send part feedback
Symbol
78J04ST - Grayhill - PCB symbol
click to zoom
PCB Footprints

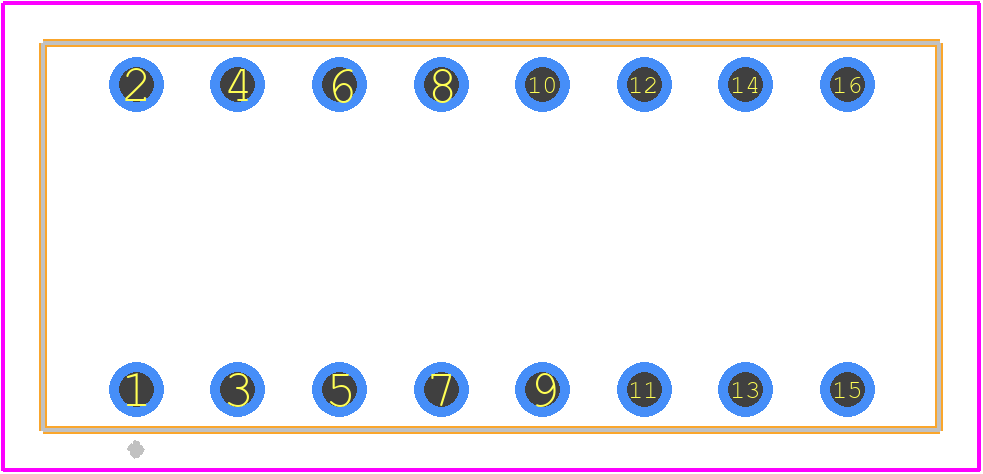

78J04ST - Grayhill PCB footprint - Other - Other - 78J04ST-1
click to zoom
3D Models
78J04ST - Grayhill - 3D model - Other - 78J04ST-1
click to zoom

78J04ST Details

  • Manufacturer Part Number:

    78J04ST

  • Pbfree Code:

    Yes

  • Rohs Code:

    Yes

  • Part Life Cycle Code:

    Active

  • Package Description:

    ROHS COMPLIANT

  • Country Of Origin:

    Mainland China

  • ECCN Code:

    EAR99

  • HTS Code:

    8536.50.90.65

  • Factory Lead Time:

    18 Weeks

  • Manufacturer:

    Grayhill Inc

  • YTEOL:

    6.5

  • Body Breadth:

    9.65 mm

  • Body Height:

    6.22 mm

  • Body Length or Diameter:

    22.4 mm

  • Contact Current(DC)-Max:

    0.15 A

  • Contact (DC) Max Rating R Load:

    .15A@30VDC

  • Contact Voltage(DC)-Max:

    30 V

  • Electrical Life:

    2000 Cycle(s)

  • JESD-609 Code:

    e3

  • Mounting Feature:

    THROUGH HOLE-STRAIGHT

  • Number of Switch Sections:

    4

  • Operating Temperature-Max:

    85 °C

  • Operating Temperature-Min:

    -40 °C

  • PCB Hole Count:

    8

  • Packing Method:

    TUBE

  • Sealing:

    TOP TAPE SEALED

  • Surface Mount:

    NO

  • Switch Action:

    LATCHED

  • Switch Function:

    SPDT

  • Switch Type:

    SLIDE DIP SWITCH

  • Terminal Finish:

    MATTE TIN OVER NICKEL

  • Termination Type:

    SOLDER

78J04ST Frequently Asked Questions (FAQs)

  • The recommended torque for tightening the switch is 10-15 in-lbs (1.1-1.7 Nm) to ensure proper mounting and prevent damage.
  • Yes, the 78J04ST is designed to withstand high-vibration environments, making it suitable for use in industrial, aerospace, and transportation applications.
  • The 78J04ST is designed to operate in temperatures ranging from -40°C to 85°C (-40°F to 185°F) and can withstand humidity up to 95% RH. However, it's recommended to consult with Grayhill Inc for specific environmental requirements.
  • Yes, Grayhill Inc offers customization options for the 78J04ST, including different shaft lengths, terminations, and circuit configurations. Contact Grayhill Inc for specific customization options.
  • The typical lead time for delivery of the 78J04ST varies depending on the quantity and customization options. Contact Grayhill Inc for specific lead time information.

Trust Checks

This model has been provided by an expert contributor.
Expert Contribution
This model has been verified by system checks.
System Verified
This model has been reviewed by community users.
Community Approved
Sponsored

78J04ST Overview

Use the download button to access the 78J04ST schematic symbol, PCB footprint, and 3D model.
To find more CAD model downloads similar to this part, try a partial part number search, like 78J04, or try a keyword search, such as DIP Switches
