78J04T - Grayhill

Description: Switch DIP OFF ON SPDT 4 Raised Slide 0.15A 30VDC PC Pins 2000Cycles 2.54mm Thru-Hole Tube

Download 78J04T Model
Schematic
symbols
Schematic symbol is unavailable for download
PCB
footprints
PCB footprint is unavailable for download
3D
models
3D model is unavailable for download
Send part feedback
Symbol
78J04T - Grayhill - PCB symbol
click to zoom
PCB Footprints

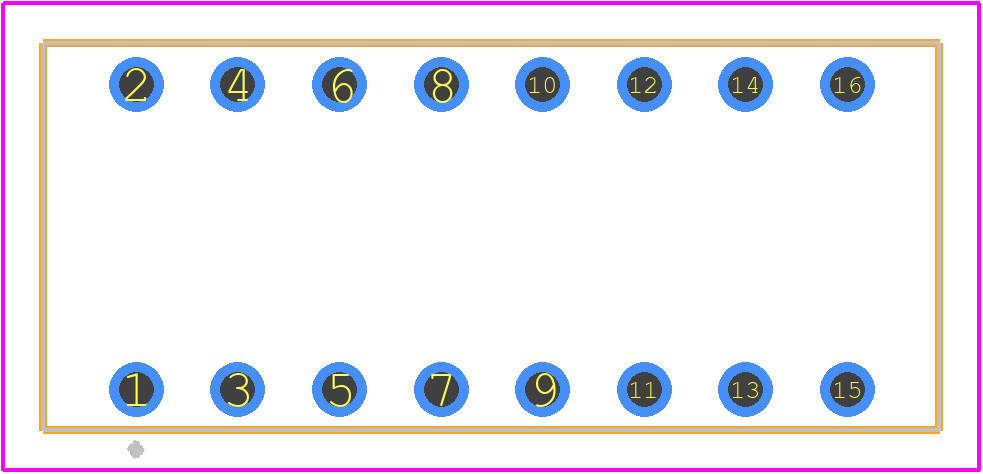

78J04T - Grayhill PCB footprint - Other - Other - 78J04ST-1
click to zoom
3D Models
78J04T - Grayhill - 3D model - Other - 78J04ST-1
click to zoom

78J04T Details

  • Manufacturer Part Number:

    78J04T

  • Pbfree Code:

    Yes

  • Rohs Code:

    Yes

  • Part Life Cycle Code:

    Active

  • Country Of Origin:

    Mainland China

  • ECCN Code:

    EAR99

  • HTS Code:

    8536.50.90.65

  • Manufacturer:

    Grayhill Inc

  • YTEOL:

    6.5

  • Actuator Length:

    0.05 inch

  • Actuator Type:

    SLIDE TYPE

  • Body Breadth:

    9.65 mm

  • Body Height:

    6.73 mm

  • Body Length or Diameter:

    22.4 mm

  • Contact Current(DC)-Max:

    0.15 A

  • Contact (DC) Max Rating R Load:

    .15A@30VDC

  • Contact Voltage(DC)-Max:

    30 V

  • Electrical Life:

    2000 Cycle(s)

  • JESD-609 Code:

    e3

  • Mounting Feature:

    THROUGH HOLE-STRAIGHT

  • Number of Positions:

    4

  • Number of Switch Sections:

    4

  • Operating Temperature-Max:

    85 °C

  • Operating Temperature-Min:

    -40 °C

  • PCB Hole Count:

    8

  • Packing Method:

    TUBE

  • Surface Mount:

    NO

  • Switch Action:

    LATCHED

  • Switch Function:

    SPDT

  • Switch Type:

    SLIDE DIP SWITCH

  • Terminal Finish:

    MATTE TIN OVER NICKEL

  • Terminal Length:

    0.156 inch

  • Termination Type:

    SOLDER

78J04T Frequently Asked Questions (FAQs)

  • The recommended torque for the 78J04T rotary switch is 0.5-1.5 in-lbs (0.056-0.17 Nm).
  • Yes, the 78J04T is designed to withstand high-vibration environments. However, it's recommended to consult with Grayhill's application engineers to ensure the switch meets the specific vibration requirements of your application.
  • The operating temperature range for the 78J04T is -20°C to 85°C (-4°F to 185°F).
  • The 78J04T is designed to be resistant to moisture and can withstand some exposure to water, but it's not intended for continuous immersion or high-pressure washdown. For harsh environment applications, consider using Grayhill's sealed or waterproof switches.
  • Yes, Grayhill offers customization options for the 78J04T, including different shaft lengths, terminations, and circuit configurations. Contact Grayhill's sales team to discuss your specific requirements.

Trust Checks

This model has been provided by an expert contributor.
Expert Contribution
This model has been verified by system checks.
System Verified
This model has been reviewed by community users.
Community Approved
Sponsored

78J04T Overview

Use the download button to access the 78J04T schematic symbol, PCB footprint, and 3D model.
