- Datasheet Download Datasheet
- Stock & Prices $ Price & Stock for 78Q2123R/F
- Part Number 78Q2123R/F
- Manufacturer Analog Devices
- Pin Count 33
- Part Category Integrated Circuit
- Package Category Quad Flat No-Lead
- Footprint Name Quad Flat No-Lead - 21-0697
- Released Date Jan 11, 2017
- Last Modified Date Nov 15, 2024 1:35 PM UTC
- Pinout / Pin List Click Here (Member Only)
78Q2123R/F Details
-
Manufacturer Part Number:
78Q2123R/F
-
Brand Name:
Analog Devices Inc
-
Rohs Code:
Yes
-
Part Life Cycle Code:
Not Recommended
-
Part Package Code:
32-LFCSP-5X5X0.85
-
Package Description:
5 X 5 MM, LEAD FREE, QFN-32
-
Pin Count:
32
-
Manufacturer Package Code:
32-LFCSP-5X5X0.85
-
Country Of Origin:
Japan, Mainland China, Malaysia, Philippines, Singapore, South Korea, Taiwan, Thailand, USA
-
HTS Code:
8542.39.00.01
-
Date Of Intro:
2010-07-27
-
Manufacturer:
Analog Devices Inc
78Q2123R/F Frequently Asked Questions (FAQs)
-
For optimal thermal performance, it is recommended to use a 4-layer PCB with a solid ground plane, and to place thermal vias under the package to dissipate heat efficiently. Additionally, keeping the PCB traces as short and wide as possible can help reduce thermal resistance.
-
To ensure reliable operation in high-temperature environments, it is essential to follow proper thermal design and layout guidelines, and to consider the device's thermal derating. Additionally, using a heat sink or a thermal interface material can help to reduce the junction temperature and improve reliability.
-
The recommended input capacitors are 10uF to 22uF X7R or X5R ceramic capacitors, and the recommended output capacitors are 10uF to 47uF X7R or X5R ceramic capacitors. The capacitor values may vary depending on the specific application and operating conditions.
-
To troubleshoot common issues such as output voltage sag or oscillation, check the input voltage, output load, and PCB layout for any potential issues. Verify that the input and output capacitors are properly selected and placed, and that the device is operated within its recommended operating conditions. Additionally, using a scope or a spectrum analyzer can help to identify any oscillations or noise issues.
-
Operating the device beyond its recommended operating conditions can lead to reduced reliability, decreased performance, and potentially even device failure. It is essential to ensure that the device is operated within its recommended voltage, current, and temperature ranges to maintain its performance and reliability.
Trust Checks
Community Provided
System Verified
Community Approved
78Q2123R/F Overview

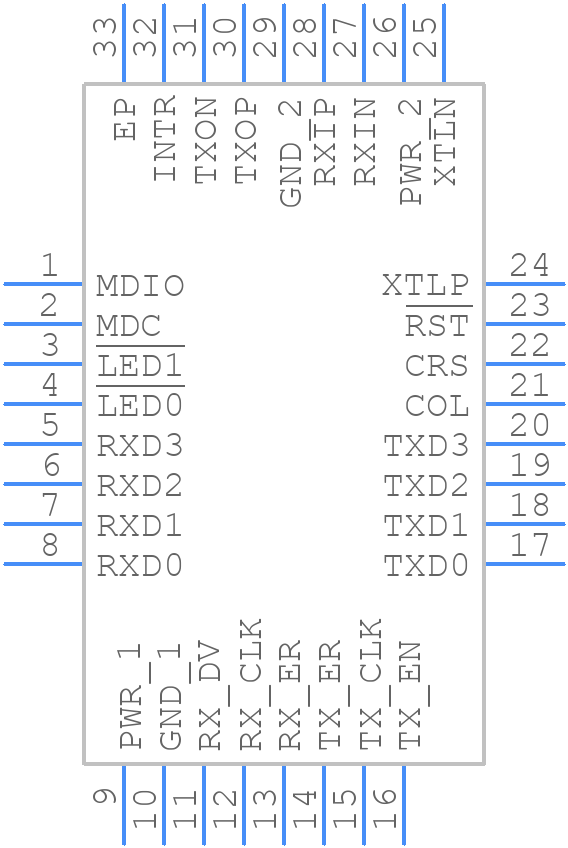

Use the download button to access the 78Q2123R/F schematic symbol, PCB footprint, and 3D model.
To find more CAD model downloads similar to this part, try a partial part number search, like 78Q21,
or try a keyword search, such as Network Interfaces
About Analog Devices
Analog Devices Inc. is a global leader in the design and manufacturing of analog, mixed-signal, and digital signal processing integrated circuits and software solutions for the industrial, automotive, healthcare, communications industries. Analog Devices serves a diverse range of markets including industrial, automotive, healthcare, energy, aerospace, defense, and consumer electronics industries.
Analog Devices’ product portfolio includes a wide range of ICs, modules, and subsystems.
